Belt Routing

NOTE: On "B" Series Pickup, Millenia 2.3L V6, MPV and Tribute serpentine belt(s) are automatically adjusted by tensioner. Millenia and MPV are equipped with 2 belts. Replace belt(s) if tensioner indicates belt is out of adjustment range. Use illustration for proper serpentine belt routing. See Fig 2 -Fig 19 .

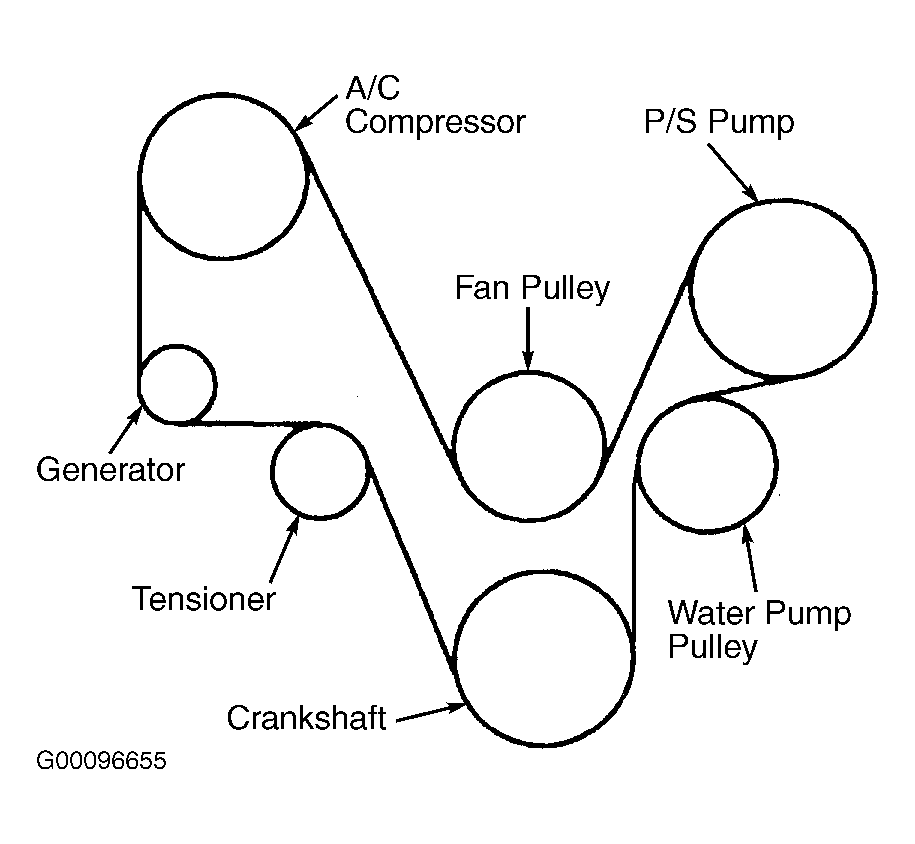

Fig 1: Drive Belt Routing (B2300 2.3L With A/C)

G00096655

Courtesy of FORD MOTOR CO.

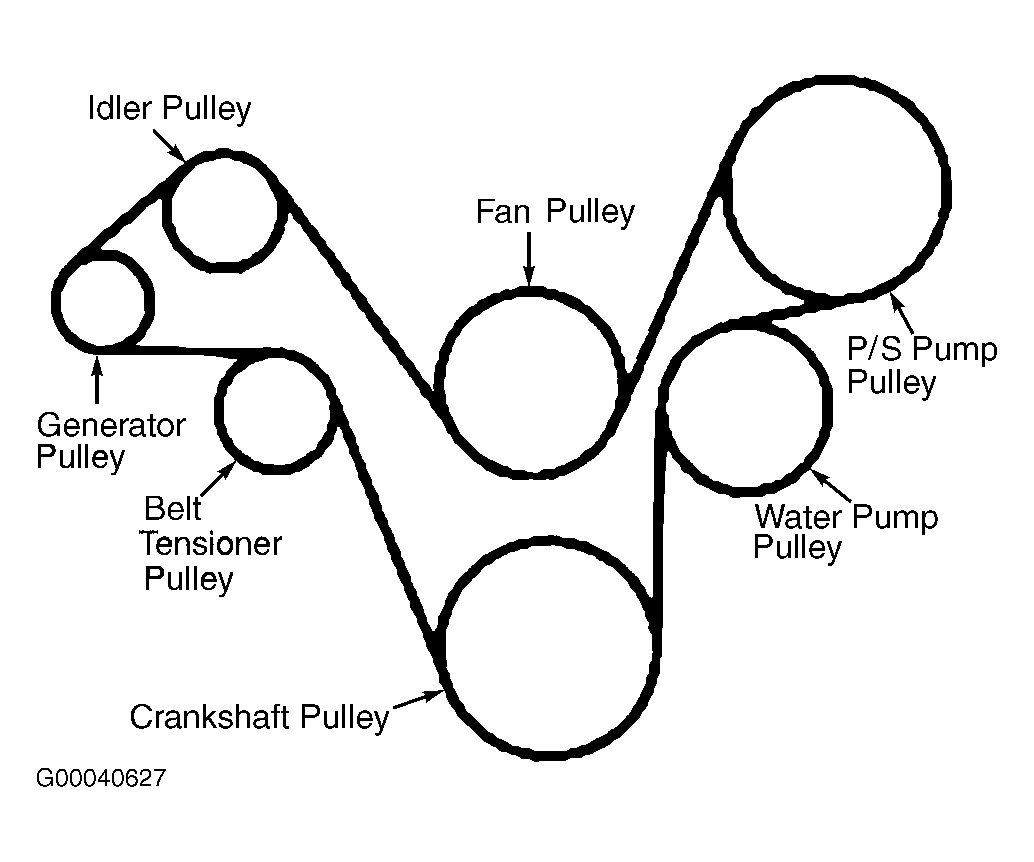

Fig 2: Checking Belt Routing & Tension (B2300 2.3L Without A/C)

G00040627

Courtesy of FORD MOTOR CO.

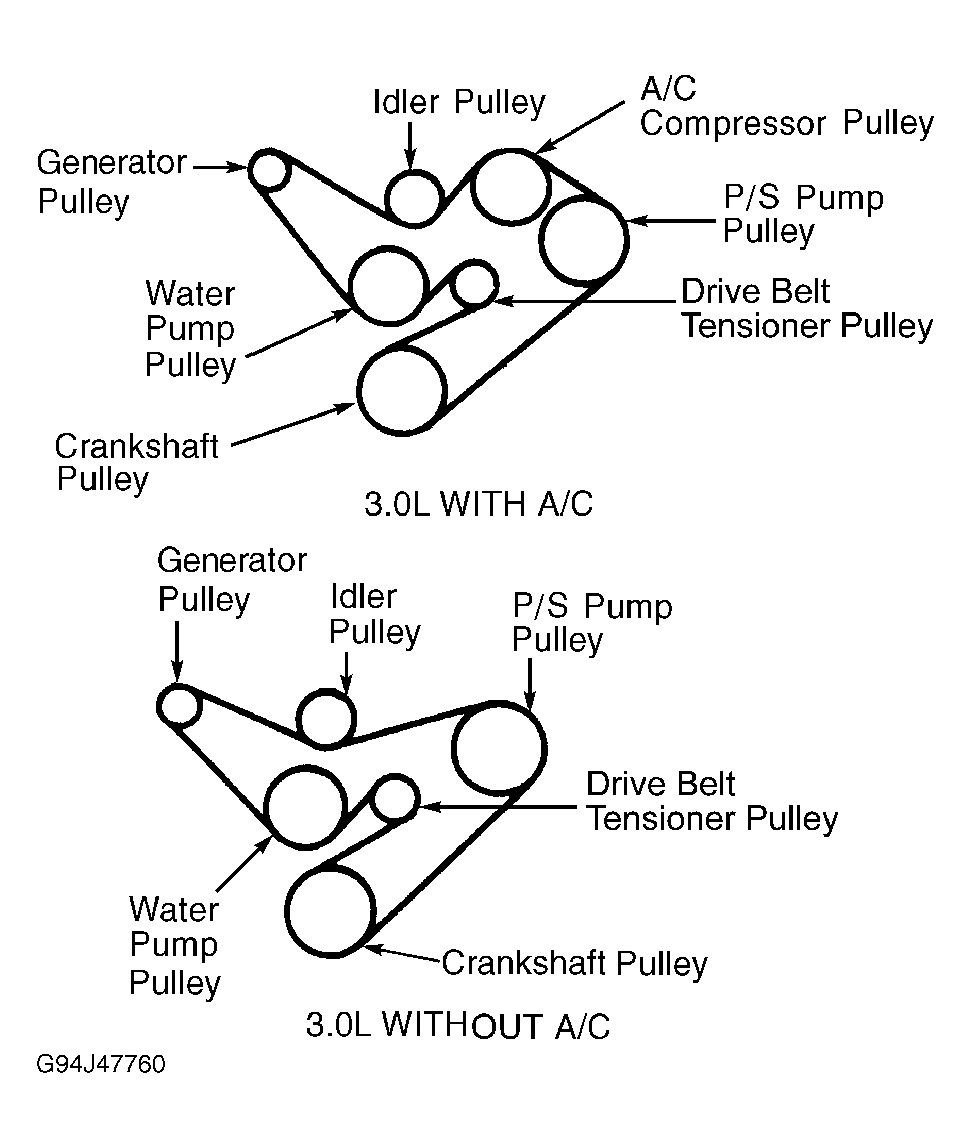

Fig 3: Checking Belt Routing & Tension (B3000)

G94J47760

Courtesy of FORD MOTOR CO.

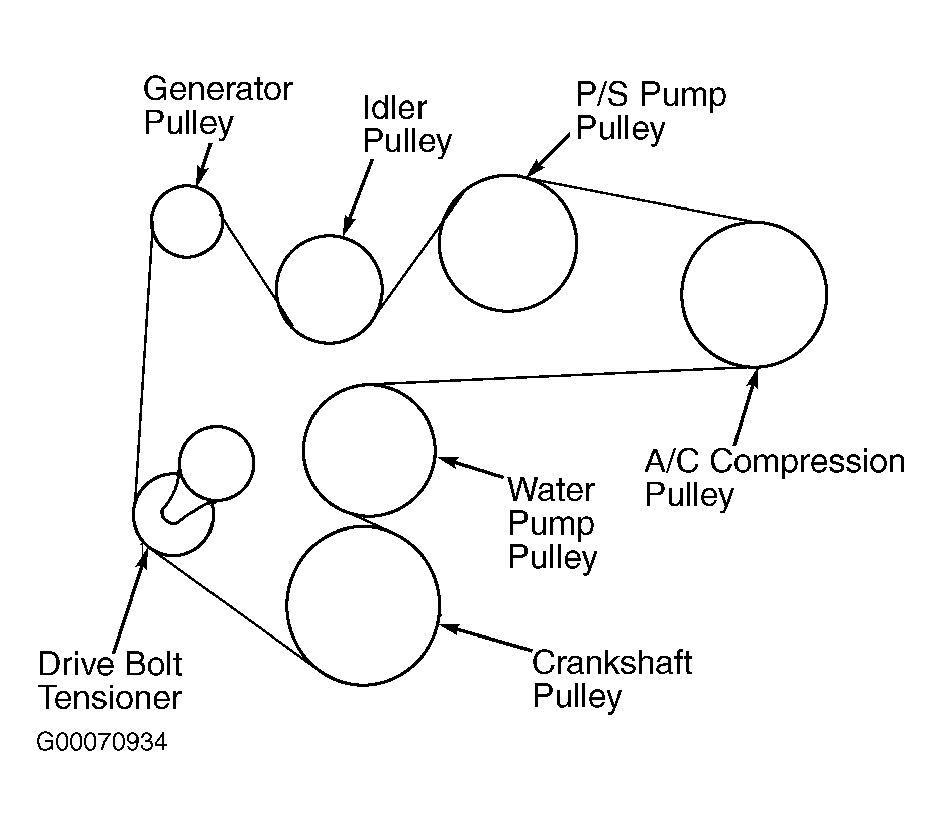

Fig 4: Checking Belt Routing & Tension With A/C (B4000)

G00070934

Courtesy of FORD MOTOR CO.

Fig 5: Checking Belt Routing & Tension W/Out A/C (B4000)

G00070935

Courtesy of FORD MOTOR CO.

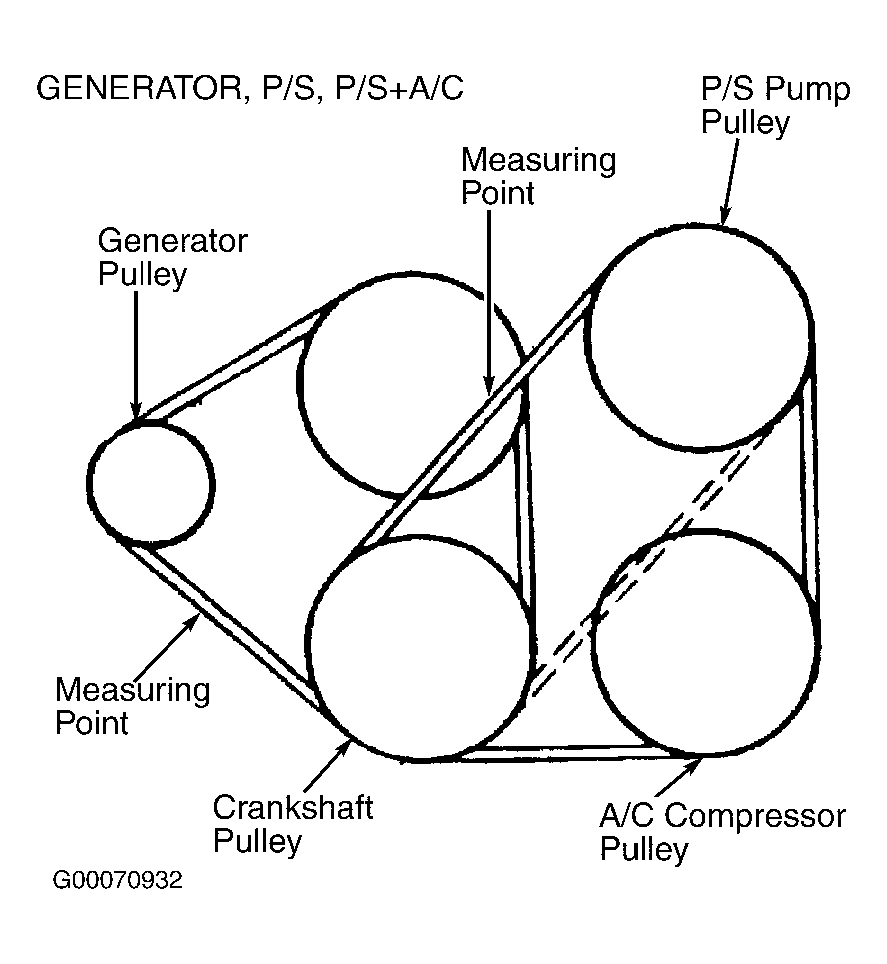

Fig 6: Checking Belt Routing & Tension (MX5 - Miata)

G00070932

Courtesy of MAZDA MOTORS CORP.

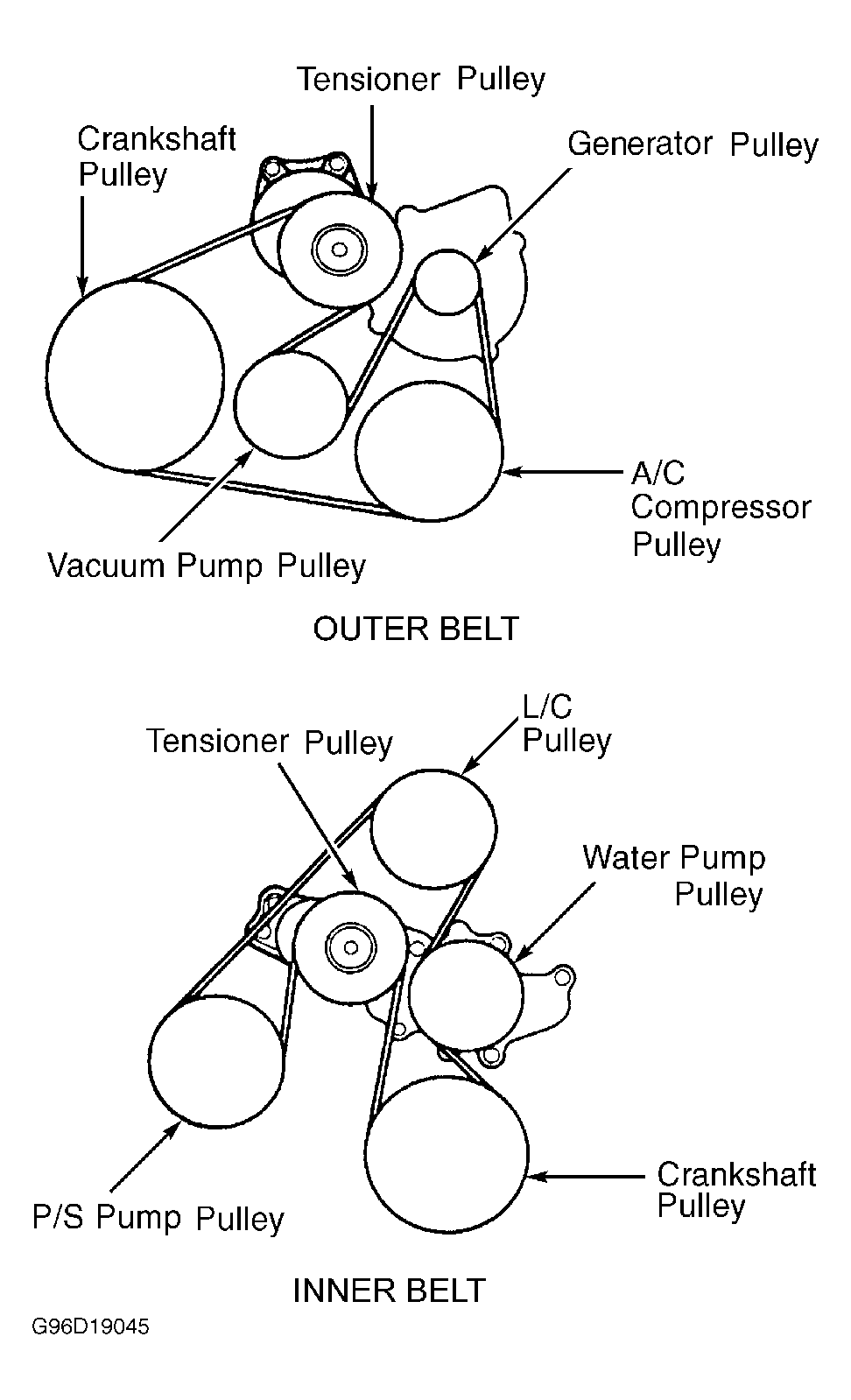

Fig 7: Checking Belt Routing & Tension (Millenia 2.3L V6)

G96D19045

Courtesy of MAZDA MOTORS CORP.

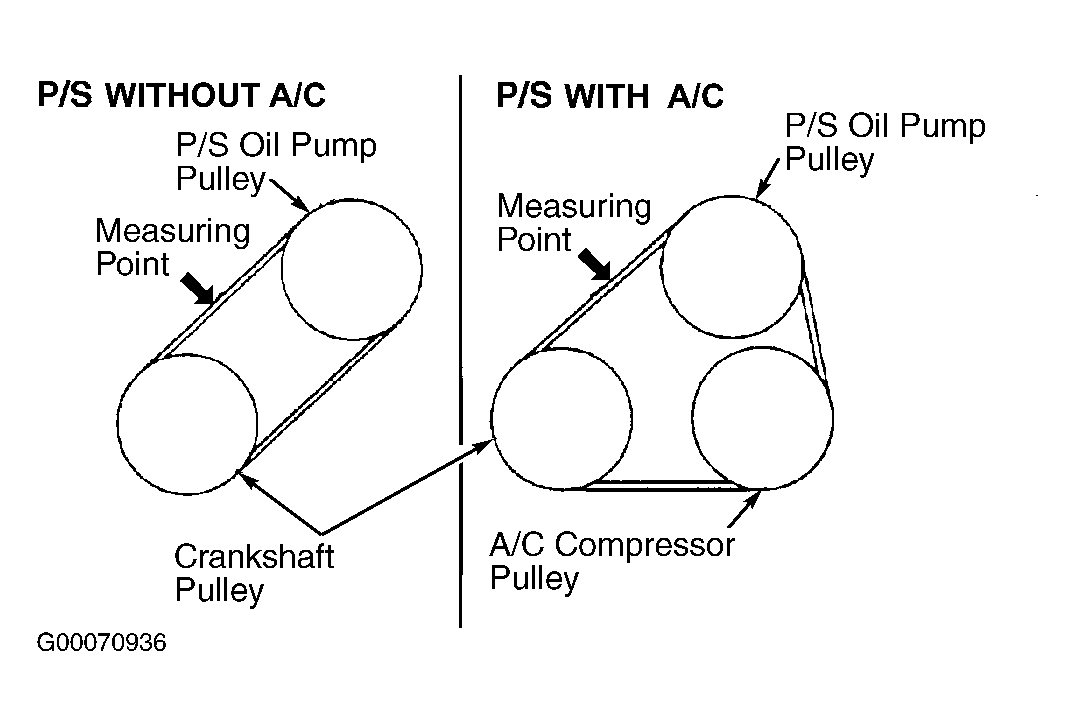

Fig 8: Checking Belt Routing & Tension (Protege 1.6L)

G00070936

Courtesy of MAZDA MOTORS CORP.

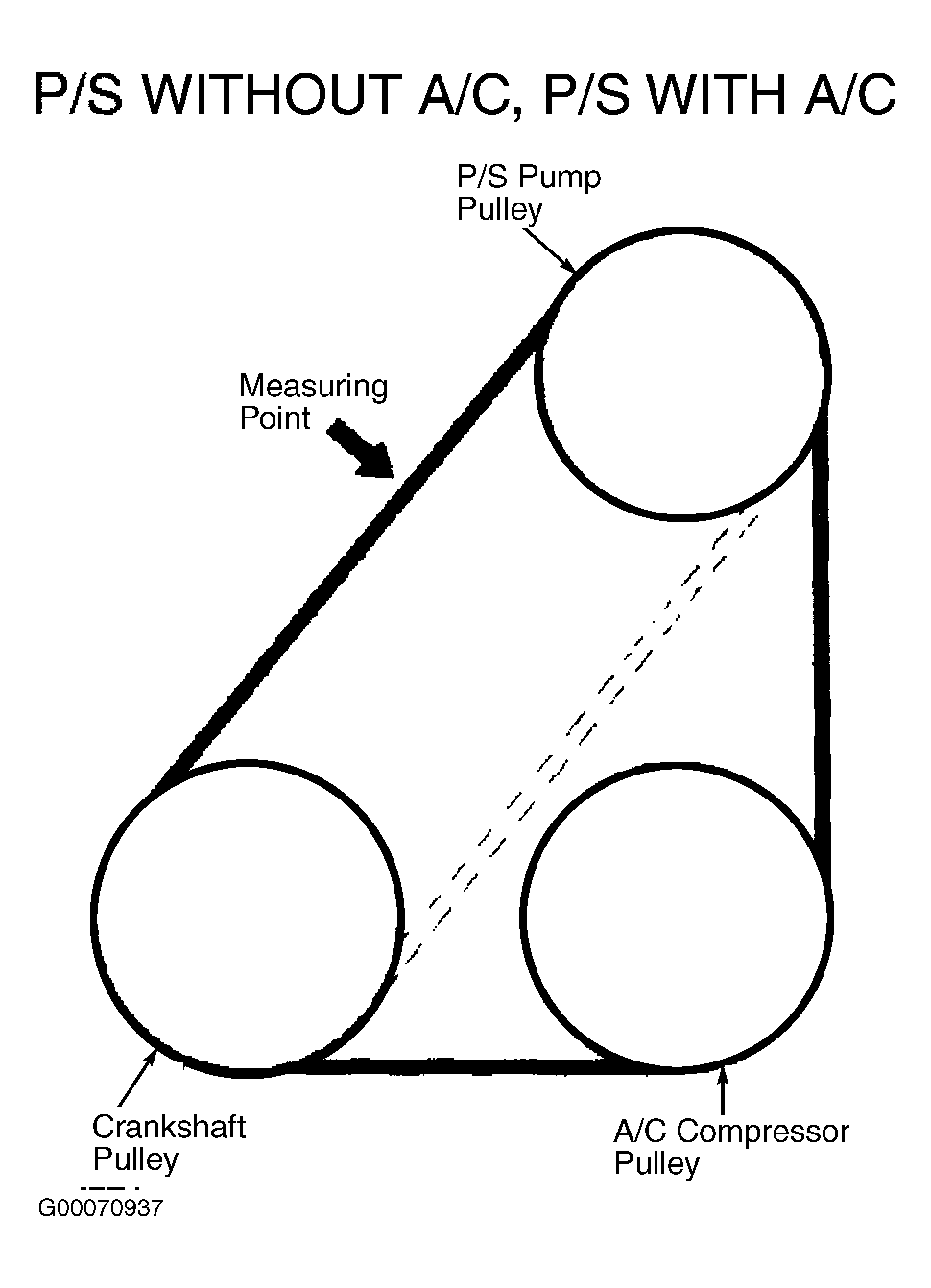

Fig 9: Checking Belt Routing & Tension (Protege 2.0L - 1 Of 2)

G00070937

Courtesy of MAZDA MOTORS CORP.

Fig 10: Checking Belt Routing and Tension (Protege 2.0L - 2 Of 2)

G00070938

Courtesy of MAZDA MOTORS CORP.

Fig 11: Checking Generator Belt Routing - Without A/C (626 2.5L)

G00070933

Courtesy of MAZDA MOTORS CORP.

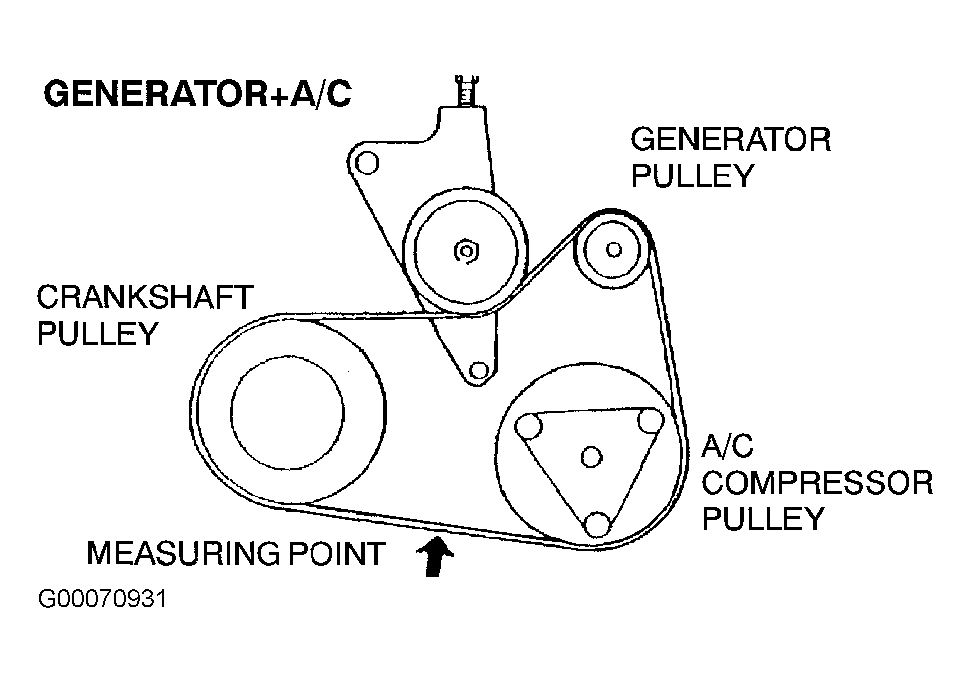

Fig 12: Checking Generator Belt Routing & Tension - With A/C (Millenia & 626 2.5L)

G00070931

Courtesy of MAZDA MOTORS CORP.

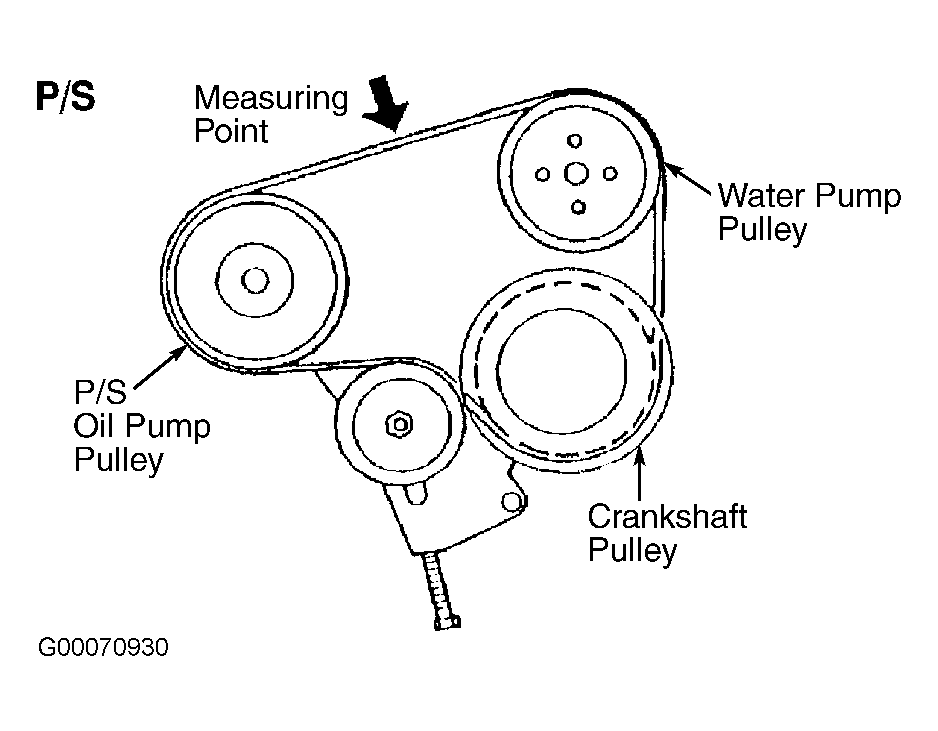

Fig 13: Checking P/S Belt Routing & Tension (Millenia & 626 2.5L)

G00070930

Courtesy of MAZDA MOTORS CORP.

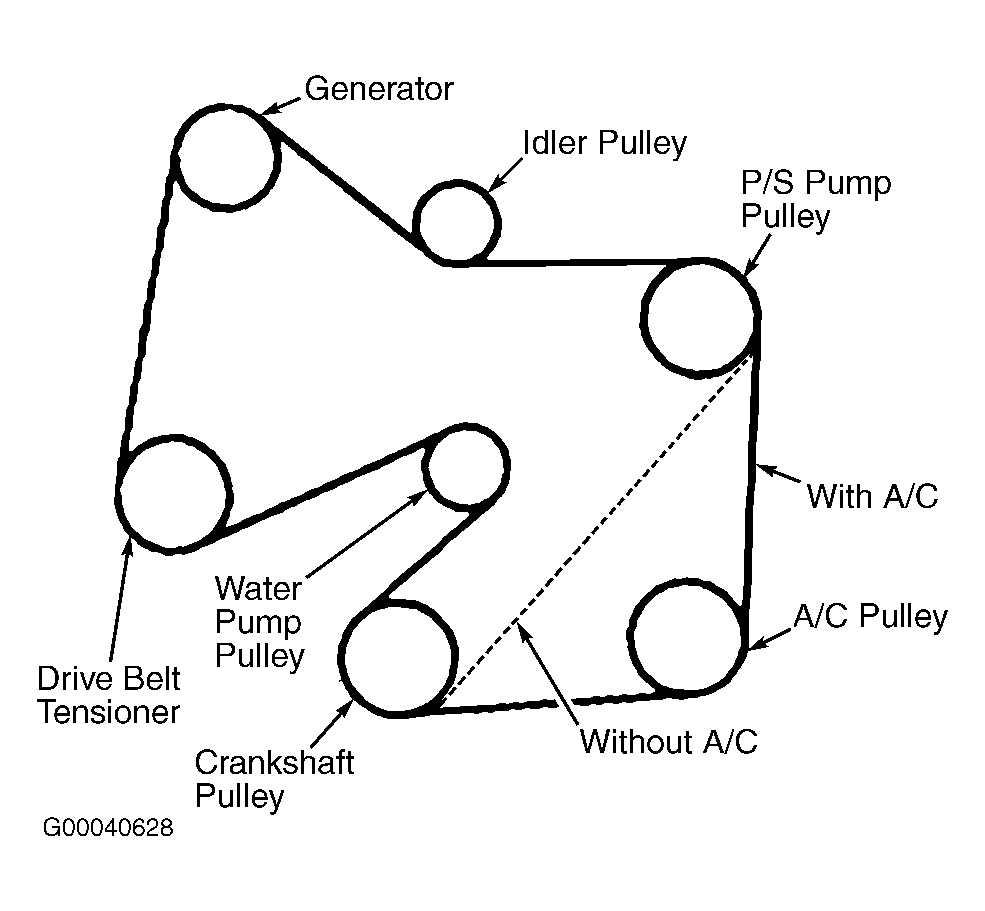

Fig 14: Checking Belt Routing & Tension (2.0L Tribute)

G00040628

Courtesy of FORD MOTOR CO.

Fig 15: Checking Belt Routing & Tension (3.0L MPV & Tribute)

G00040629

Courtesy of FORD MOTOR CO.

Fig 16: Checking Water Pump Belt Routing - Without Tensioner (MPV & Tribute 3.0L)

G00070927

Courtesy of MAZDA MOTORS CORP.

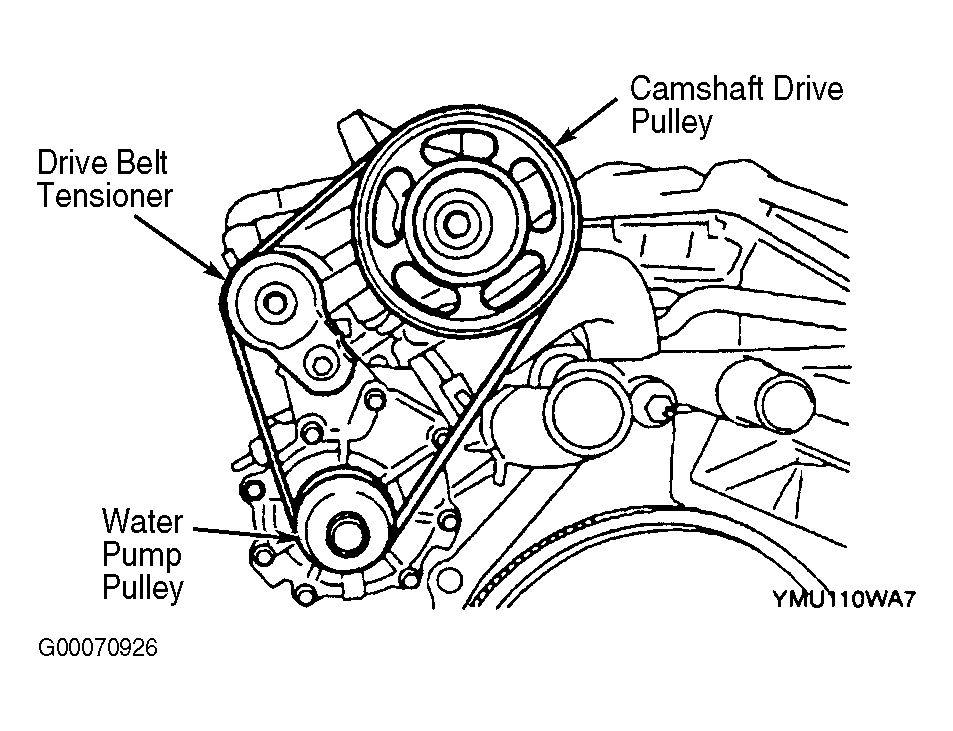

Fig 17: Check Water Pump Belt Routing - With Tensioner (MPV & Tribute 3.0L)

G00070926

Courtesy of MAZDA MOTORS CORP.

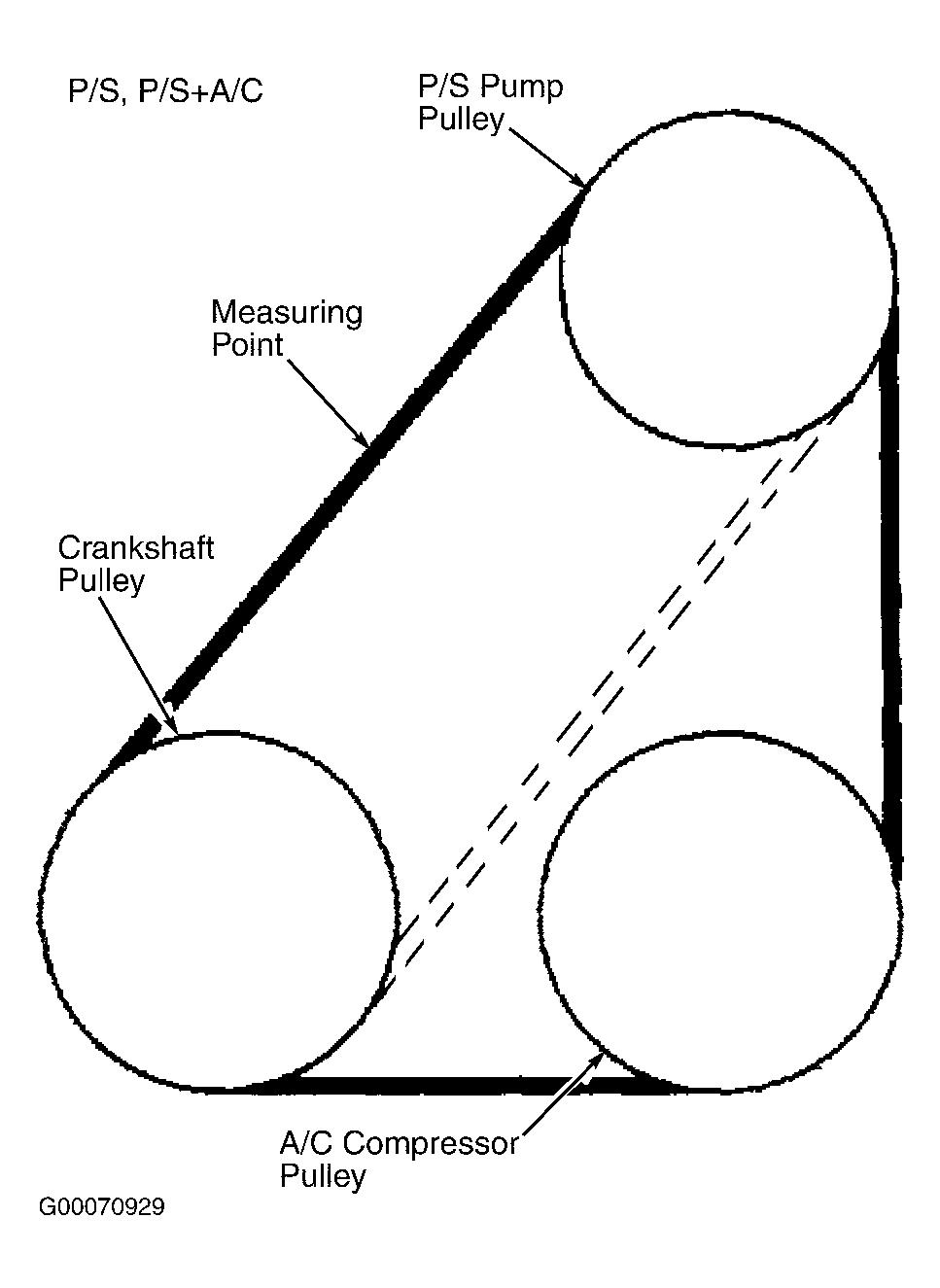

Fig 18: Checking P/S Belt Routing & Tension (626 2.0L)

G00070929

Courtesy of MAZDA MOTORS CORP.

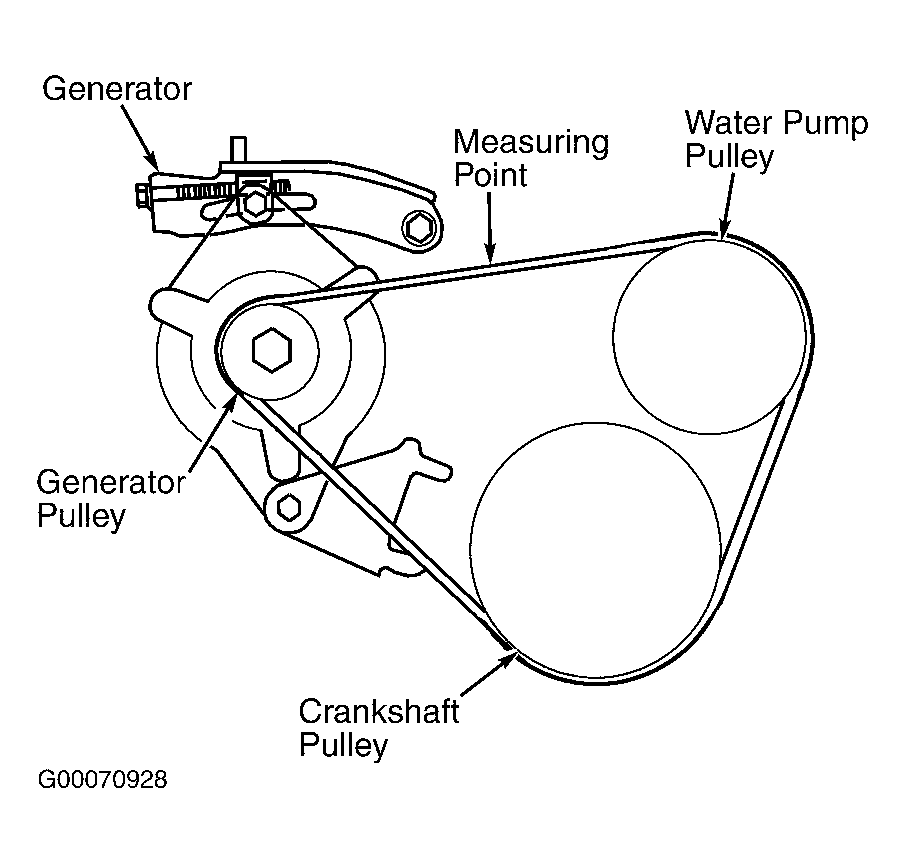

Fig 19: Checking Generator Belt Routing & Tension (626 2.0L)

G00070928

Courtesy of MAZDA MOTORS CORP.
