Receiver/Drier Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant; see REFRIGERANT SYSTEM TESTS  .
  2. Disconnect the A/C cycling switch electrical connector.

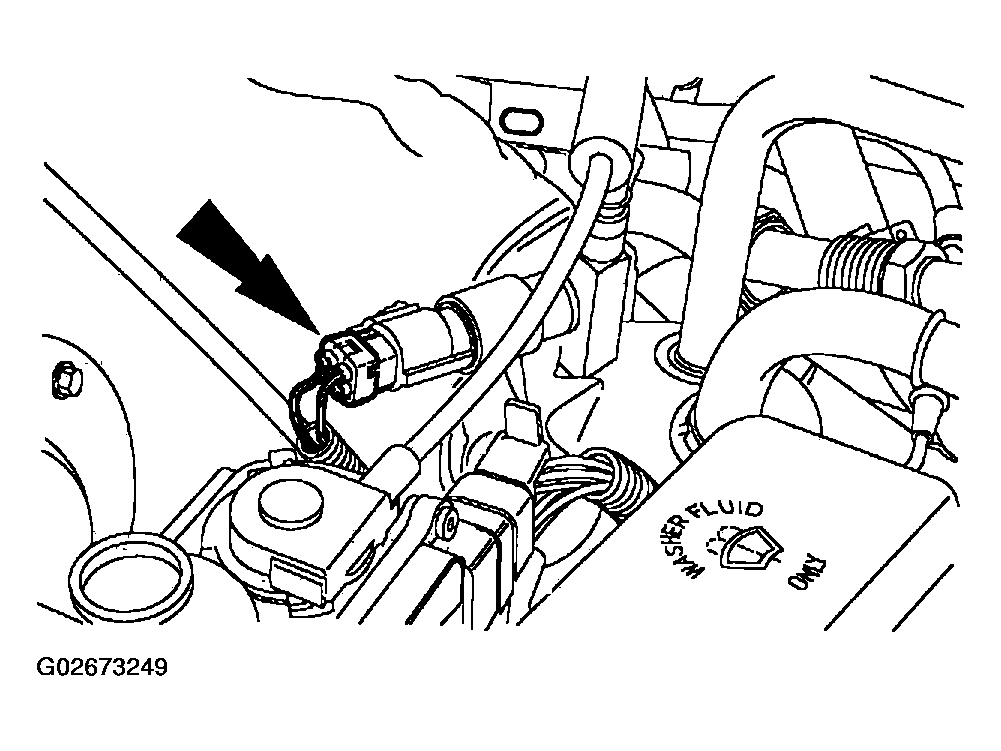

    Fig 1: Disconnecting A/C Cycling Switch
    G02673249Courtesy of MAZDA MOTORS CORP.
    3. CAUTION: Use a back-up wrench to prevent damage to the tubes.

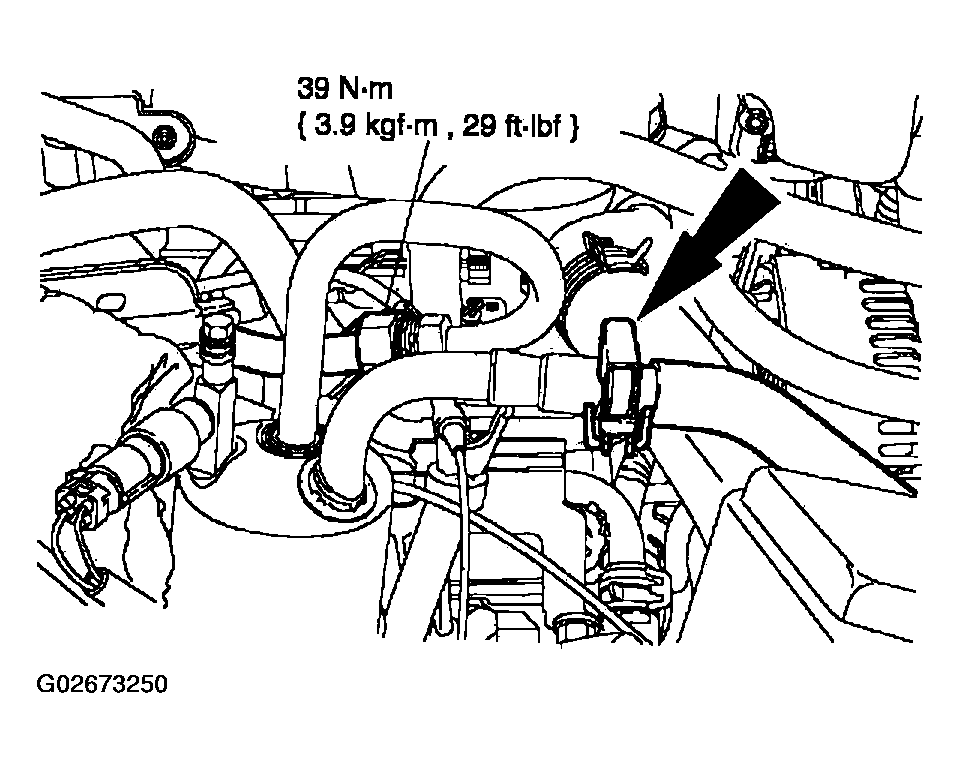

    Fig 2: Disconnecting Suction Accumulator Refrigerant Lines
    G02673250Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the suction accumulator refrigerant lines. See SPRING LOCK COUPLING  .
    • Discard the O-ring seals.
  4. Remove the three suction accumulator bracket screws and the suction accumulator.

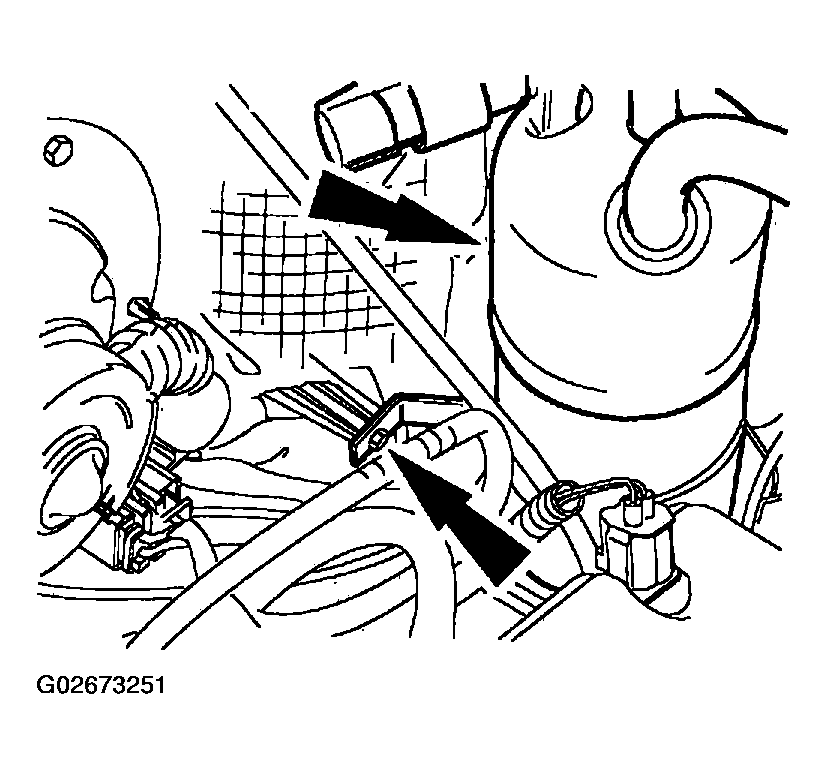

    Fig 3: Removing Suction Accumulator Bracket Screws
    G02673251Courtesy of MAZDA MOTORS CORP.
  5. To install, reverse the removal procedure.
    • If a new suction accumulator is to be installed, transfer the A/C cycling switch to the new suction accumulator.
    • Lubricate the refrigerant system with the correct amount of clean refrigerant oil. See REFRIGERANT OIL ADDITION  .
    • Install new O-ring seals lubricated in clean refrigerant oil.
  6. Evacuate, leak test, and charge the refrigerant system. See REFRIGERANT SYSTEM TESTS  .
