Troubleshooting Index - Roof Opening Panel: Notes

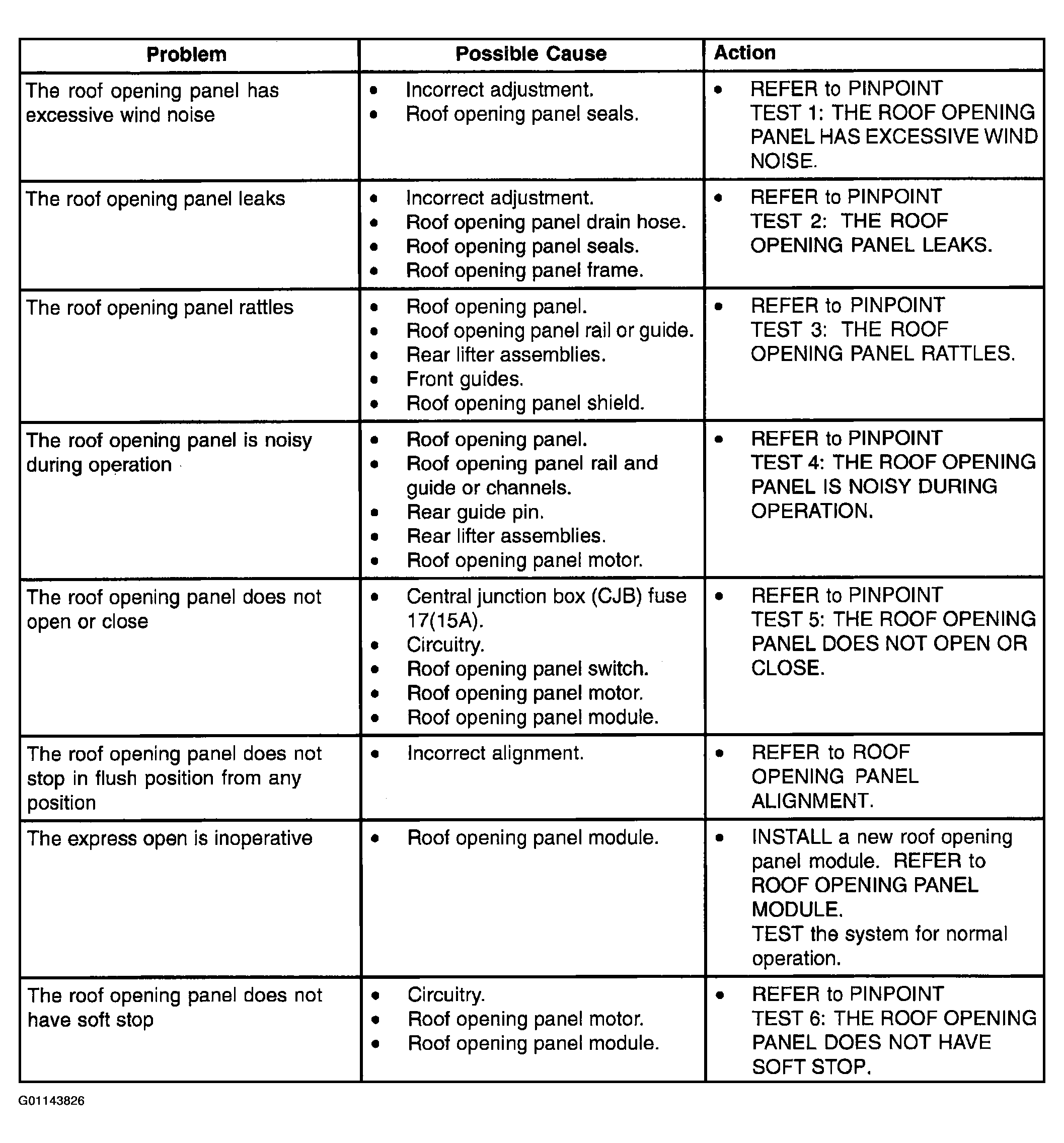

Fig 1: Troubleshooting Index - Roof Opening Panel

Courtesy of MAZDA MOTORS CORP.

PINPOINT TEST TABLE

PINPOINT TEST	DESCRIPTION
PINPOINT TEST 1	THE ROOF OPENING PANEL HAS EXCESSIVE WIND NOISE
PINPOINT TEST 2	THE ROOF OPENING PANEL LEAKS
PINPOINT TEST 3	THE ROOF OPENING PANEL RATTLES
PINPOINT TEST 4	THE ROOF OPENING PANEL IS NOISY DURING OPERATION
PINPOINT TEST 5	THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE
PINPOINT TEST 6	THE ROOF OPENING PANEL DOES NOT HAVE SOFT STOP
