Pinpoint Test 6: The Roof Opening Panel Does Not Have Soft Stop

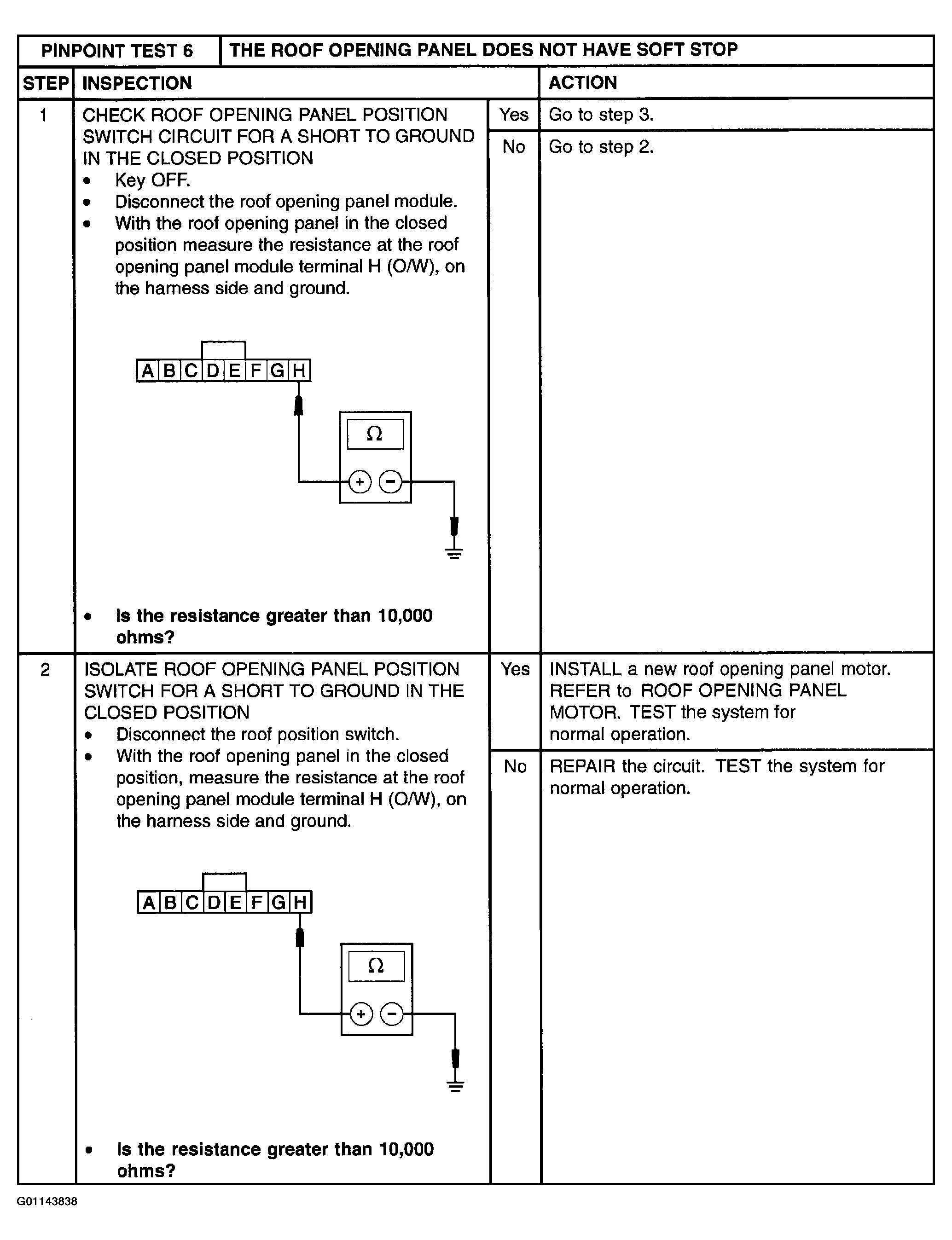

Fig 1: Pinpoint Test 6: The Roof Opening Panel Does Not Have Soft Stop (Steps 1 & 2)
G01143838Courtesy of MAZDA MOTORS CORP.

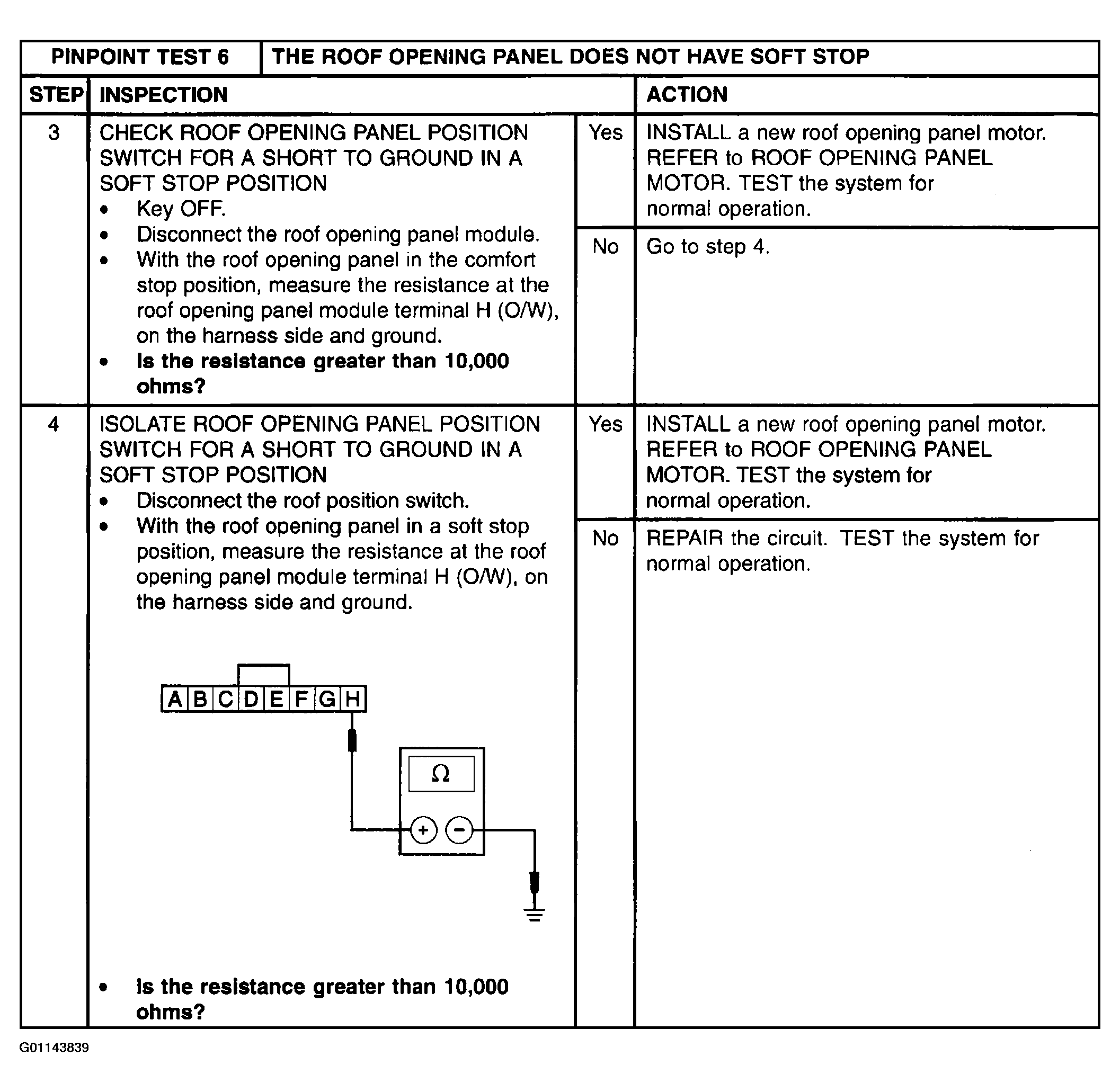

Fig 2: Pinpoint Test 6: The Roof Opening Panel Does Not Have Soft Stop (Steps 3 & 4)
G01143839Courtesy of MAZDA MOTORS CORP.
