Pinpoint Test 2: The Roof Opening Panel Leaks

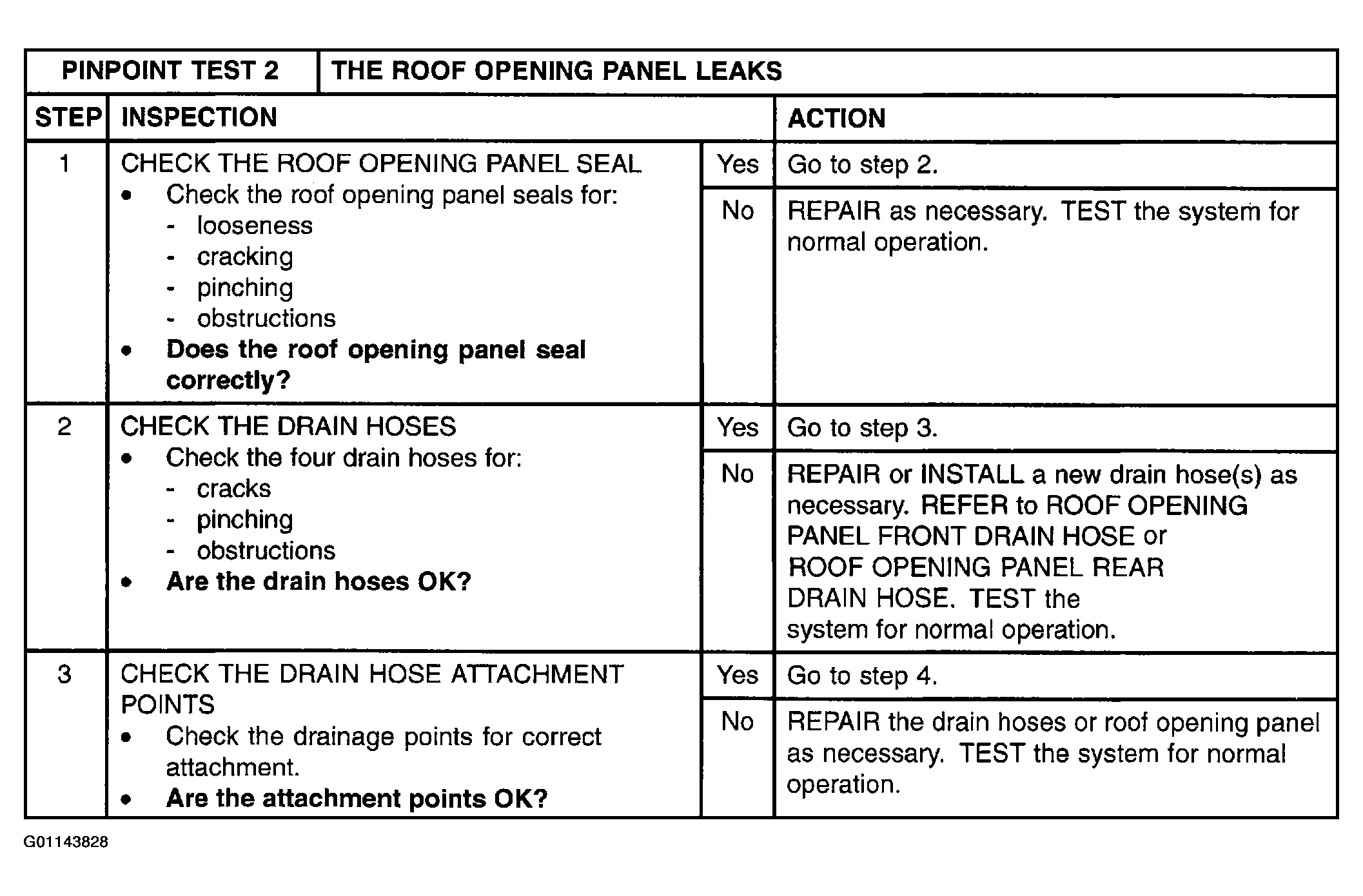

Fig 1: Pinpoint Test 2: The Roof Opening Panel Leaks (Steps 1-3)
G01143828Courtesy of MAZDA MOTORS CORP.

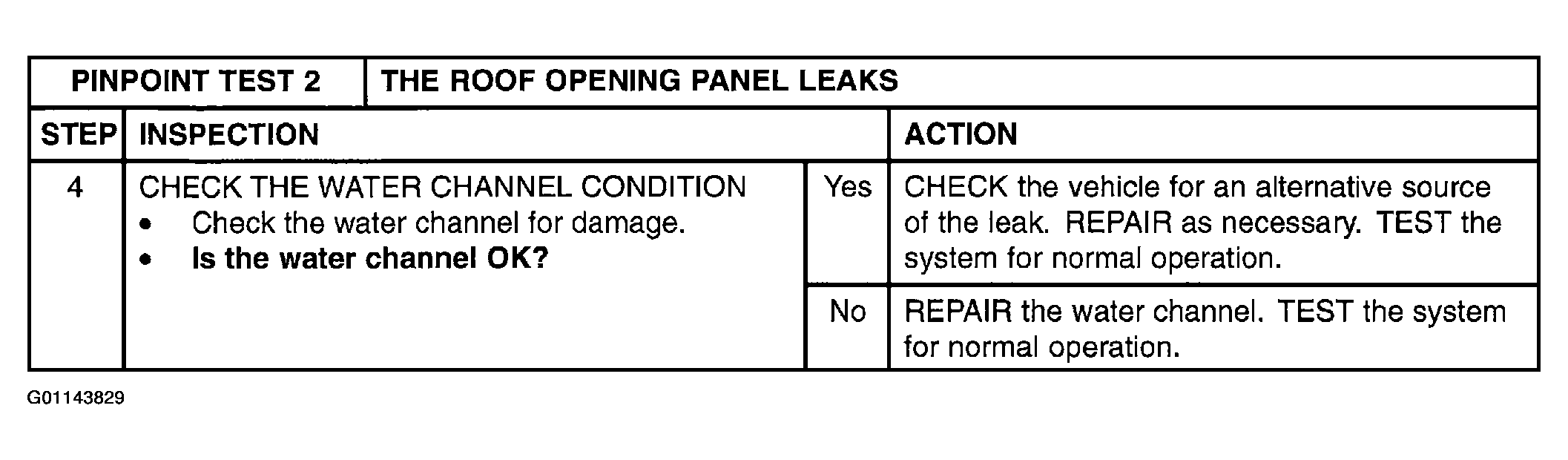

Fig 2: Pinpoint Test 2: The Roof Opening Panel Leaks (Step 4)
G01143829Courtesy of MAZDA MOTORS CORP.
