Pinpoint Test 5: The Roof Opening Panel Does Not Open Or Close

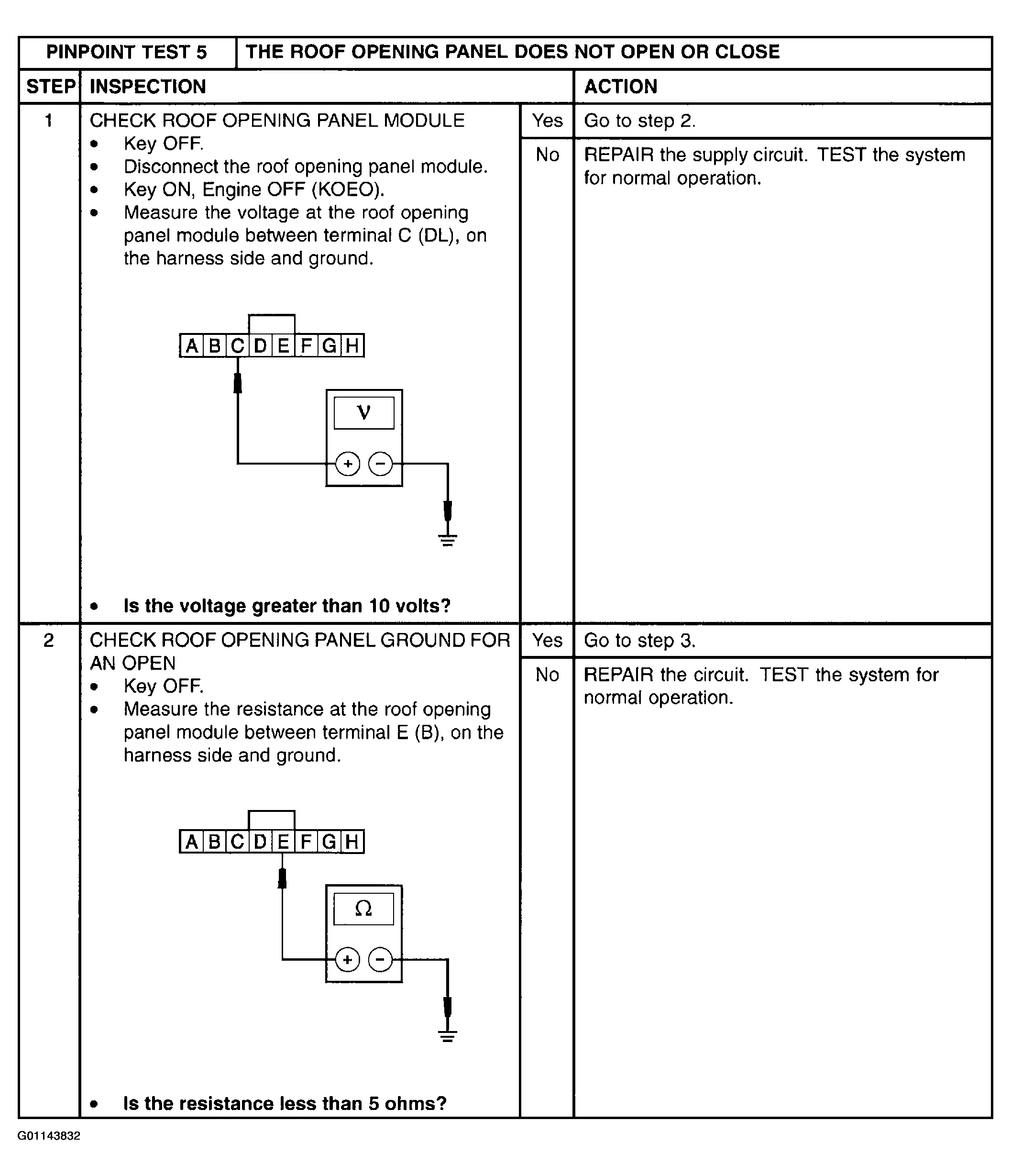

Fig 1: Pinpoint Test 5: The Roof Opening Panel Does Not Open Or Close (Steps 1 & 2)

Courtesy of MAZDA MOTORS CORP.

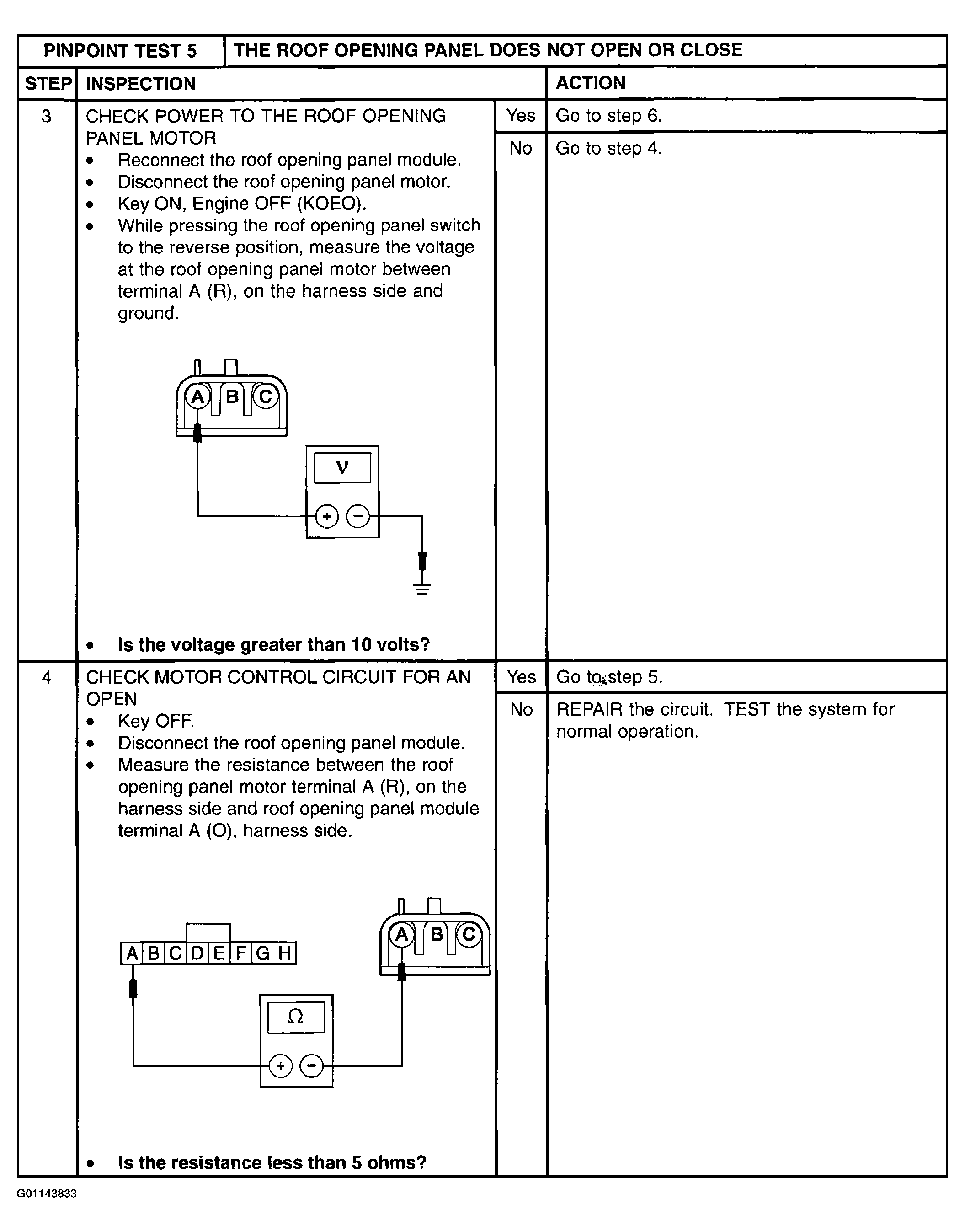

Fig 2: Pinpoint Test 5: The Roof Opening Panel Does Not Open Or Close (Steps 3 & 4)

Courtesy of MAZDA MOTORS CORP.

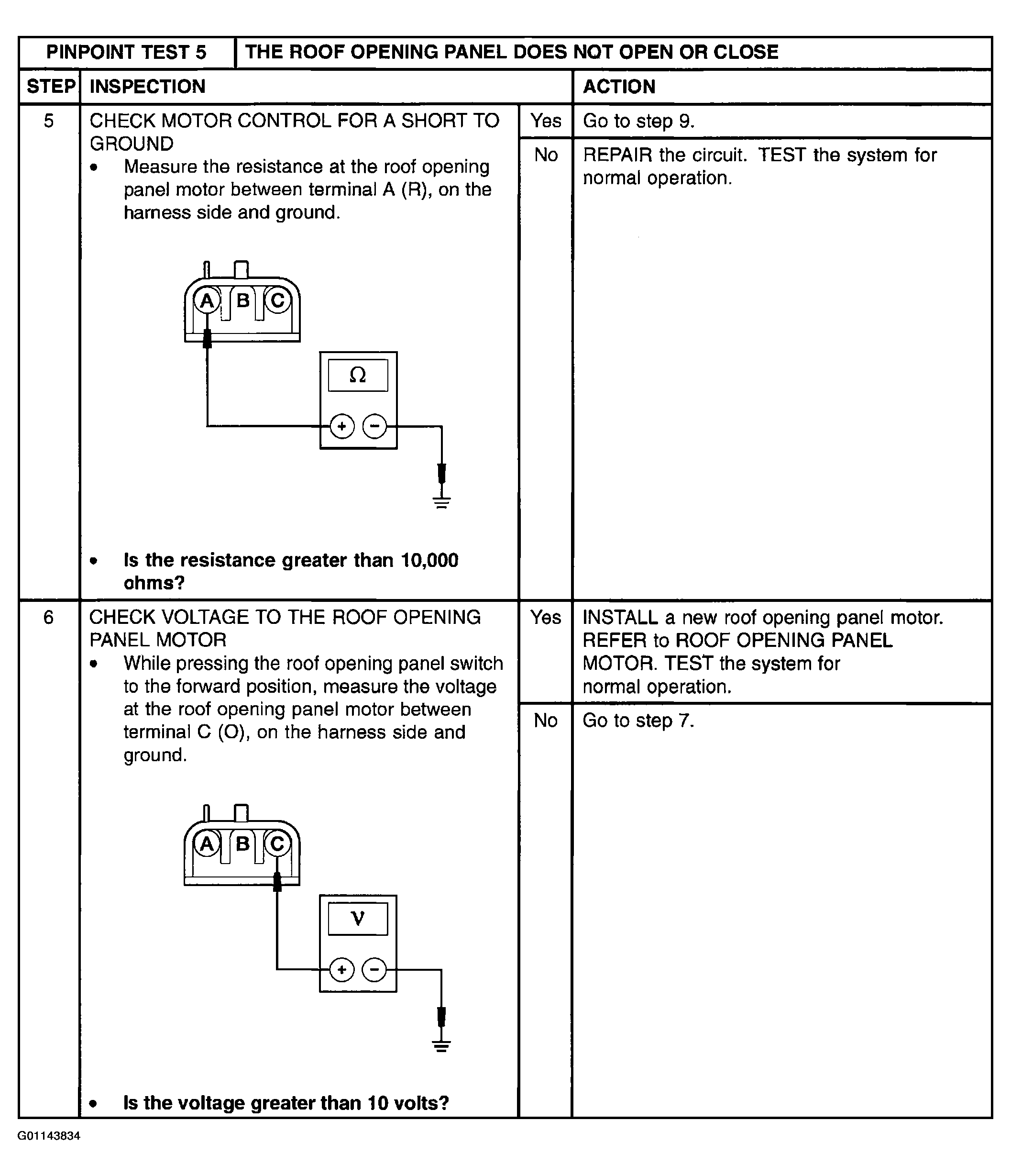

Fig 3: Pinpoint Test 5: The Roof Opening Panel Does Not Open Or Close (Steps 5 & 6)

Courtesy of MAZDA MOTORS CORP.

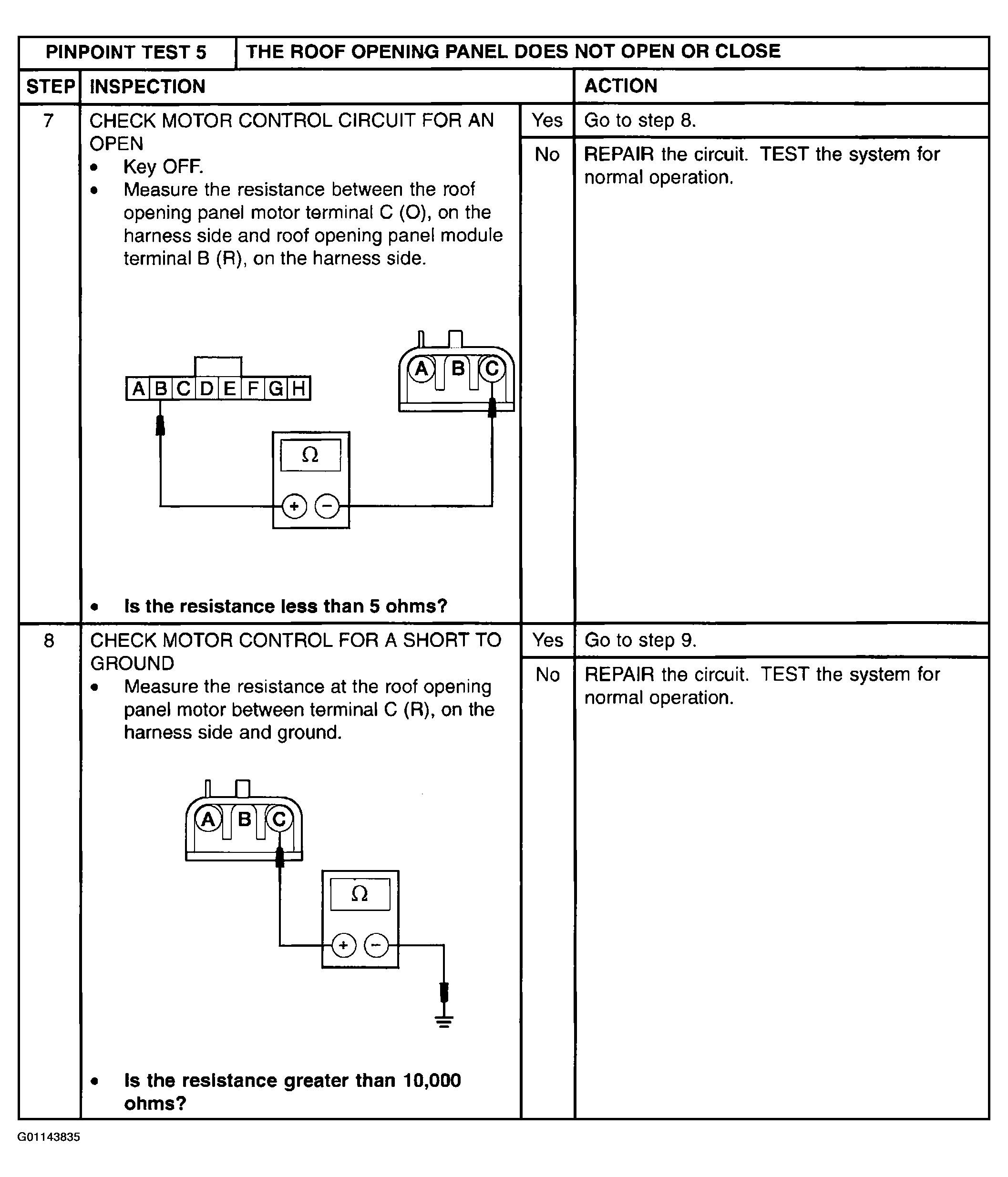

Fig 4: Pinpoint Test 5: The Roof Opening Panel Does Not Open Or Close (Steps 7 & 8)

Courtesy of MAZDA MOTORS CORP.

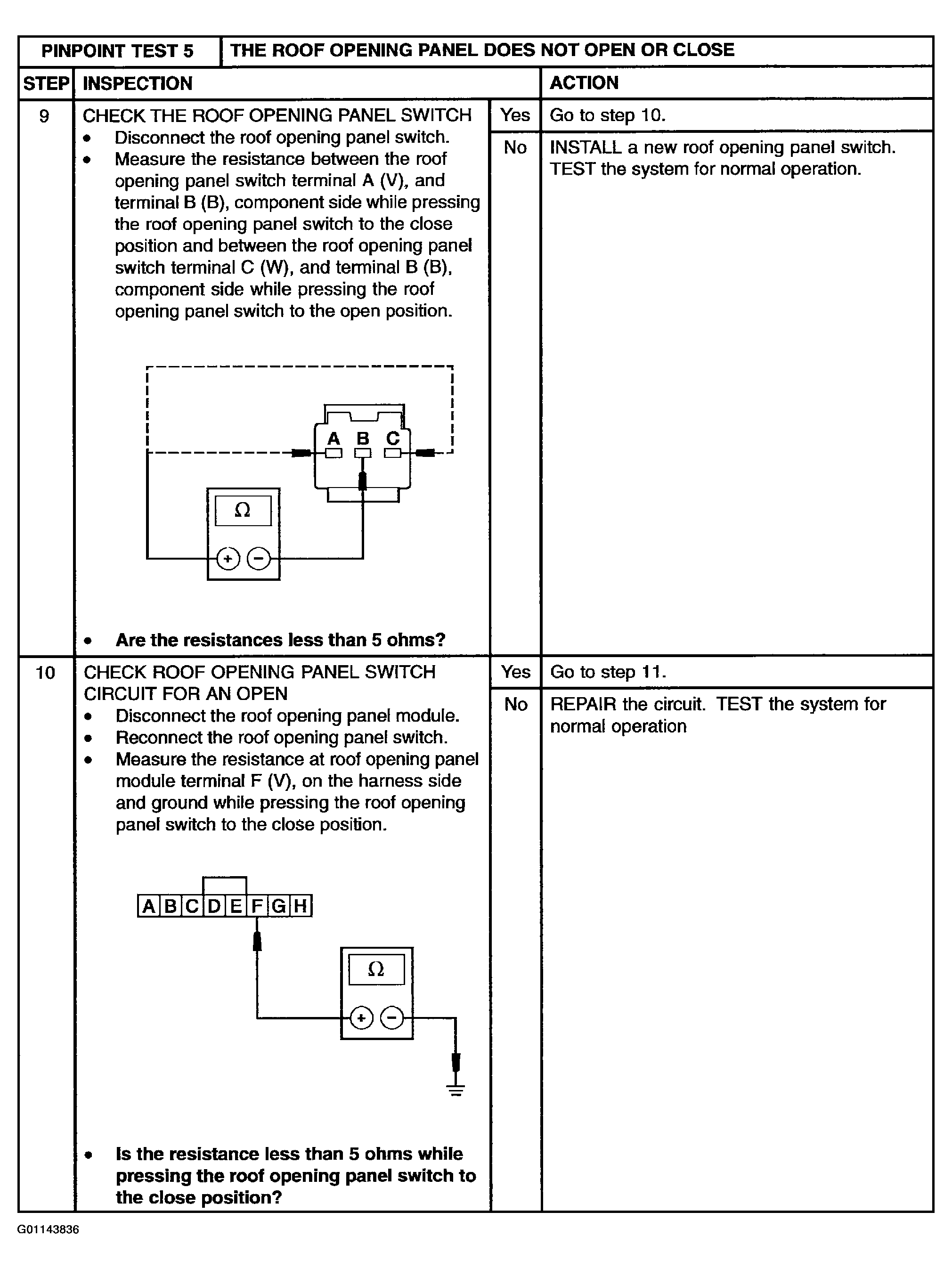

Fig 5: Pinpoint Test 5: The Roof Opening Panel Does Not Open Or Close (Steps 9 & 10)

Courtesy of MAZDA MOTORS CORP.

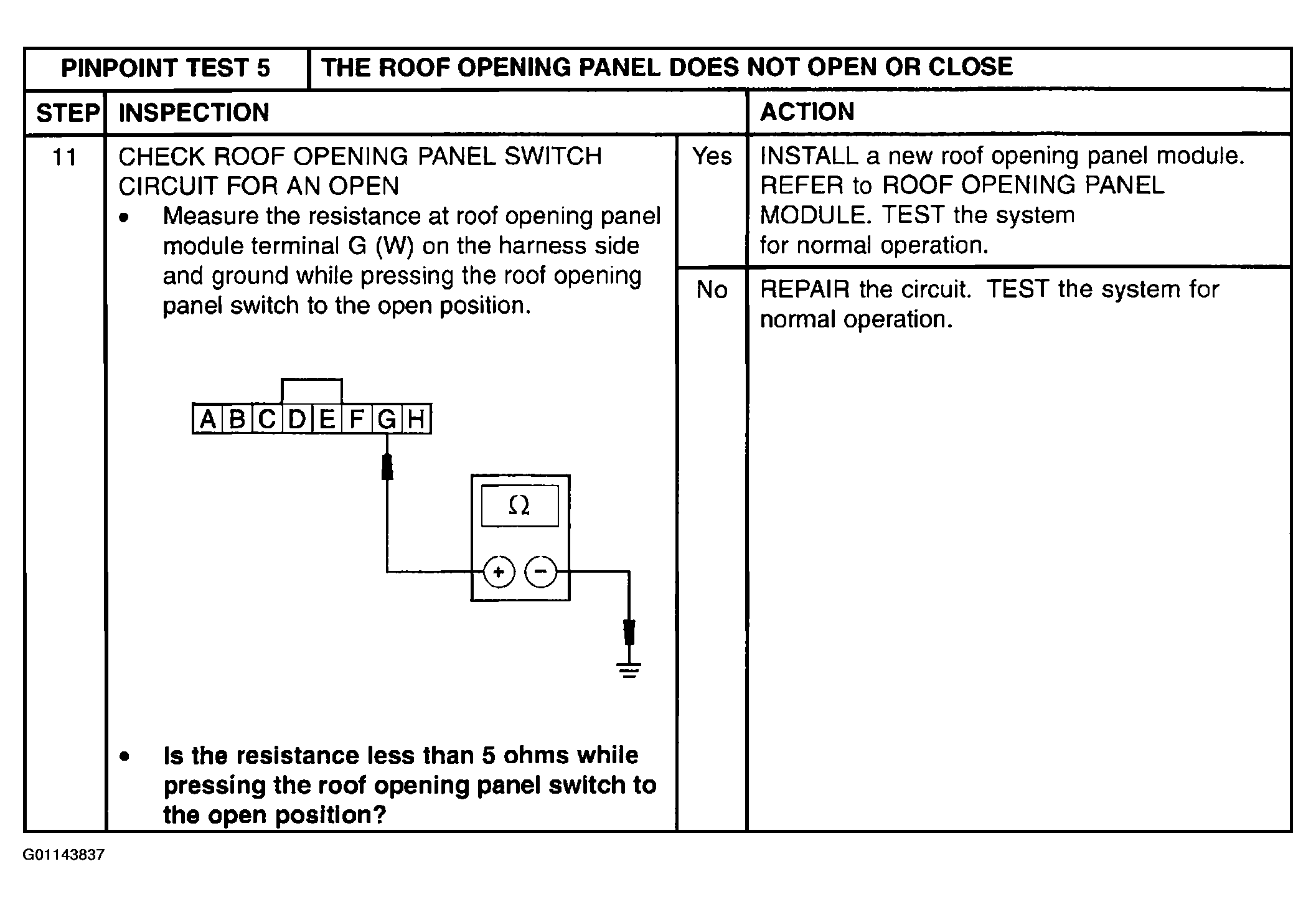

Fig 6: Pinpoint Test 5: The Roof Opening Panel Does Not Open Or Close (Steps 11 & 12)

Courtesy of MAZDA MOTORS CORP.
