Installation [11/2021 - ]: Procedure

  1. INSTALL ENGINE MOUNTING BRACKET SUB-ASSEMBLY LH

    HINT:

    Perform this procedure only when replacement of the engine mounting bracket sub-assembly LH is necessary.

    1. GTY1076887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the engine mounting bracket sub-assembly LH with the 4 bolts.

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

        NOTE:

        Temporarily tighten the bolt (A), and then fully tighten the 4 bolts in the order of (B), (C), (D) and (A).

  2. INSTALL ENGINE MOUNTING SPACER

    HINT:

    Perform this procedure only when replacement of the engine mounting spacer is necessary.

    1. GTY1076811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the engine mounting spacer to the vehicle body with the 2 bolts.

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

        NOTE:

        Temporarily tighten the bolt (A), and then fully tighten the 2 bolts in the order of (B) and (A).

  3. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

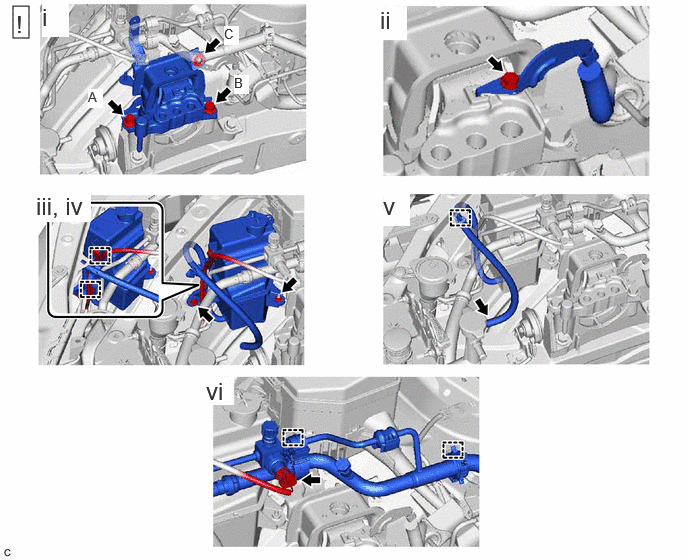

    1. GTY1076437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the engine mounting insulator sub-assembly RH with the 2 bolts and nut.

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

        NOTE:

        Temporarily tighten the bolt (A), and then fully tighten the 2 bolts and nut in the order of (B), (A) and (C).

      2. Connect the No. 2 earth wire to the engine mounting insulator sub-assembly RH with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      3. Connect the radiator reserve tank assembly with the bolt and nut.

        Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

      4. Engage the 2 clamps.
      5. Engage the clamp and connect the No. 6 water by-pass hose.
      6. Engage the 2 clamps and connect the connector.
  4. INSTALL ENGINE HANGERS
    See step  49 [11/2021 - 03/2024], or see step  49 [03/2024 - ]
  5. REMOVE ENGINE ASSEMBLY FROM ENGINE STAND
  6. INSTALL ENGINE WIRE

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1077263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 CRANKSHAFT POSITION SENSOR PLATE
    See step  2
  8. INSTALL DRIVE PLATE & RING GEAR SUB-ASSEMBLY
    See step  3
  9. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
    See step  4
  10. INSTALL STARTER ASSEMBLY

    Refer to PROCEDURE - Step 1

  11. INSTALL FLYWHEEL HOUSING SIDE COVER
    Refer to PROCEDURE - Step 2
  12. INSTALL REAR ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    Refer to PROCEDURE - Step 3
  13. INSTALL FRONT ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the front engine mounting insulator is necessary.

    Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

  14. INSTALL FRONT ENGINE MOUNTING BRACKET
    Refer to PROCEDURE - Step 12 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 12 [03/2022 - ]
  15. INSTALL FRONT FRAME ASSEMBLY

    Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

  16. CONNECT WIRE HARNESS
    Refer to PROCEDURE - Step 16 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 16 [03/2022 - ]
  17. INSTALL STEERING GEAR HEAT INSULATOR
    Refer to PROCEDURE - Step 7
  18. INSTALL BREATHER PLUG HOSE
  19. CONNECT VACUUM HOSE
  20. INSTALL FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)
    Refer to PROCEDURE - Step 1
  21. INSTALL FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)
    Refer to PROCEDURE - Step 1
  22. INSTALL DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
    Refer to PROCEDURE - Step 22 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 22 [03/2022 - ]
  23. INSTALL FLYWHEEL HOUSING UNDER COVER
  24. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
    1. GTY1076241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Attachments - -
      1. Set the engine assembly with transaxle on an engine lifter.
        NOTE:
        • Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle level.
        • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
    2. GTY1076416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Engine Hanger *2 No. 2 Engine Hanger
    3. GTY1077177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

    4. GTY1077590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Bumper Extension Sub-assembly LH *2 Front Bumper Extension Sub-assembly RH
      *3 Front Suspension Member Brace Rear LH *4 Front Suspension Member Brace Rear RH
      Bolt Nut
      1. Operate the engine lifter and install the engine assembly with transaxle to the vehicle.
        WARNING:

        Do not raise the engine assembly with transaxle more than necessary. If the engine is raised excessively, the vehicle may also be lifted up.

        NOTE:
        • Make sure that the engine assembly with transaxle is clear of all wiring and hoses.
        • While raising the engine assembly with transaxle into the vehicle, do not allow it to contact the vehicle.
      2. Install the front bumper extension sub-assembly RH and front bumper extension sub-assembly LH to the front frame assembly and vehicle body with the 4 bolts and 4 nuts.

        Bolt (A)

        Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

        Bolt (B)

        Torque: 9.5 N.m (97 kgf/cm, 84 in.lbf)

        Nut

        Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

      3. Install the front suspension member brace rear RH and front suspension member brace rear LH to the front frame assembly and vehicle body with the 6 bolts.

        Bolt (C)

        Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

        Bolt (D)

        Torque: 60 N.m (612 kgf/cm, 44 ft.lbf)

      4. Install the engine mounting insulator sub-assembly RH to the engine mounting bracket with the 3 bolts and nut.

        Bolt

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

        Nut

        Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      5. Install the engine mounting insulator sub-assembly LH to the engine mounting bracket LH with the bolt and nut.

        Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

  25. CONNECT TIE ROD ASSEMBLY LH
    Refer to PROCEDURE - Step 9
  26. CONNECT TIE ROD ASSEMBLY RH
  27. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]

  28. INSTALL PROPELLER W/CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to INSTALLATION [11/2021 - ]

  29. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Refer to PROCEDURE - Step 14 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 14 [03/2022 - ]

  30. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
    Refer to PROCEDURE - Step 11
  31. CONNECT NO. 5 WATER BY-PASS HOSE

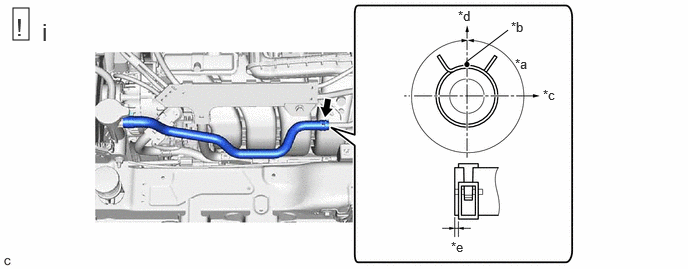

    1. GTY1077506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 360° *b Paint Mark
      *c Front Side *d Upper Side
      *e 2 to 7 mm (0.0787 to 0.276 in.) - -
      1. Connect the No. 5 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 5 water by-pass hose until it contacts the stopper.
        • Make sure that the claws of the clip are within the location shown in the illustration.
  32. CONNECT WIRE HARNESS

    Bolt (vehicle body)

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    Bolt (automatic transaxle assembly)

    Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

    Nut

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  33. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 3
  34. CONNECT SUCTION HOSE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 4
  35. CONNECT NO. 2 RADIATOR HOSE
    1. GTY1079886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b 120°
      *c Paint Mark *d Protrusion
      *e Upper Side - -
      1. Connect the No. 2 radiator hose to the water inlet and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 2 radiator hose until it contacts the stopper.
        • Make sure that the claws of the clip are within the location shown in the illustration.
  36. CONNECT NO. 1 RADIATOR HOSE
    1. GTY1076336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b 120°
      *c Paint Mark *d Protrusion
      *e Upper Side - -
      1. Connect the No. 1 radiator hose to the water outlet and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 1 radiator hose until it contacts the stopper.
        • Make sure that the claws of the clip are within the location shown in the illustration.
      2. Engage the clamp.
  37. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. GTY1077272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the fuel tube sub-assembly.

        Refer to PRECAUTION [11/2021 - ]

      2. Install the No. 1 fuel pipe clamp to the fuel tube connector.
  38. CONNECT INLET HEATER WATER HOSE
    1. GTY1077419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion *b Cutout
      *c Retainer - -
      Push Push in
      1. Connect the inlet heater water hose to the flow shutting valve (water by-pass hose assembly).
        NOTE:

        Check that there is no damage or foreign matter on the connecting parts of the water lines.

        1. Align the protrusions of the inlet heater water hose connector with the cutouts in the flow shutting valve (water by-pass hose assembly) and securely insert the inlet heater water hose connector to the stopper of the pipe.

        2. Push in the retainer.

        3. Check that the flow shutting valve (water by-pass hose assembly) and inlet heater water hose connector are securely connected by pulling on them.

  39. CONNECT OUTLET HEATER WATER HOSE
    1. GTY1076926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion *b Cutout
      *c Retainer - -
      Push Push in
      1. Connect the outlet heater water hose to the No. 2 water by-pass pipe sub-assembly.
        NOTE:

        Check that there is no damage or foreign matter on the connecting parts of the water lines.

        1. Align the protrusion of the No. 2 water by-pass pipe sub-assembly with the cutout in the outlet heater water hose connector and securely insert the outlet heater water hose connector to the stopper of the pipe.

        2. Push in the retainer.

        3. Check that the No. 2 water by-pass pipe sub-assembly and outlet heater water hose connector are securely connected by pulling on them.

  40. CONNECT NO. 1 VACUUM HOSE CONNECTOR
  41. CONNECT FUEL VAPOR FEED HOSE ASSEMBLY
    1. GTY1077115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 120° *b 2 to 7 mm (0.0787 to 0.276 in.)
      1. Connect the fuel vapor feed hose assembly to the purge valve (purge VSV) and slide the clip to secure it.
        NOTE:

        Make sure that the claws of the clip are within the location shown in the illustration.

  42. INSTALL BATTERY CLAMP SUB-ASSEMBLY

    Bolt

    Torque: 18.5 N.m (189 kgf/cm, 14 ft.lbf)

    Nut

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  43. INSTALL ECM
    Refer to PROCEDURE - Step 3
  44. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    Refer to PROCEDURE - Step 5
  45. CONNECT NO. 2 VENTILATION HOSE
    Refer to PROCEDURE - Step 6
  46. CONNECT VACUUM HOSES
  47. INSTALL INLET AIR CLEANER ASSEMBLY
    Refer to PROCEDURE - Step 8
  48. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
    1. GTY1077415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 4 clips to install the No. 1 engine cover sub-assembly.
        NOTE:
        • Securely engage the clips.
        • If the clips are forcibly engaged or struck with an object, they may be damaged.
  49. INSPECT VACUUM HOSES
    1. GTY1077217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD *B for AWD
      1. Inspect the vacuum hoses.
  50. INSTALL BATTERY

    Refer to PROCEDURE - Step 1

  51. ADD ENGINE OIL

    Refer to PROCEDURE - Step 5 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 5 [03/2023 - ]

  52. ADD TRANSFER OIL (for AWD)

    Refer to PROCEDURE - Step 3

  53. ADD ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 5

  54. ADJUST AUTOMATIC TRANSAXLE FLUID

    Refer to ADJUSTMENT [11/2021 - ]

  55. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 7

  56. WARM UP ENGINE

    Refer to PROCEDURE - Step 8

  57. INSPECT FOR FUEL LEAK

    Refer to ON-VEHICLE INSPECTION [11/2021 - ]

  58. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 6 [11/2021 - 03/2023] , or refer to PROCEDURE - Step 6 [03/2023 - ]

  59. INSPECT FOR COOLANT LEAK (for Engine)

    Refer to PROCEDURE - Step 1

  60. INSPECT FOR TRANSFER OIL LEAK (for AWD)

    Refer to PROCEDURE - Step 3

  61. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 9

  62. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 15 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 15 [03/2022 - ]

  63. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]

  64. INSPECT ENGINE COOLANT LEVEL IN RESERVOIR TANK (for Engine)

    Refer to PROCEDURE - Step 2

  65. INSTALL NO. 2 FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 6 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 6 [03/2022 - ]

  66. INSTALL FRONT BUMPER LOWER ABSORBER
  67. INSTALL FRONT BUMPER ASSEMBLY
    Refer to PROCEDURE - Step 1
  68. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 21

  69. INSTALL FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 19

  70. INSTALL FRONT FENDER APRON SEAL LH

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  71. INSTALL FRONT FENDER APRON SEAL RH

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  72. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Bolt

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  73. INSTALL NO. 1 ENGINE UNDER COVER

    Bolt

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  74. INSTALL FRONT FENDER FRONT SPLASH SHIELD LH
  75. INSTALL FRONT FENDER FRONT SPLASH SHIELD RH
  76. INSTALL FRONT WHEELS

    Refer to INSTALLATION [11/2021 - 03/2023] , or refer to INSTALLATION [03/2023 - 03/2024] , or refer to INSTALLATION [03/2024 - ]

  77. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  78. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [11/2021 - ]

  79. PERFORM INITIALIZATION

    Refer to INITIALIZATION [11/2021 - ]

  80. INSPECT IGNITION TIMING

    Refer to PROCEDURE - Step 9

  81. INSPECT ENGINE IDLE SPEED

    Refer to PROCEDURE - Step 10

  82. INSPECT CO/HC

    Refer to PROCEDURE - Step 12

  83. CHECK SPEED SENSOR SIGNAL

    Refer to SIGNAL CHECK [11/2021 - ]

scientia non olet · About LEMON Manuals
