Installation [11/2021 - ]: Procedure
- INSTALL FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)
*a View A *b 90° *c Upper Side *d RH Side *e 2 to 7 mm (0.0787 to 0.276 in.) - - - Connect the flow shutting valve (water by-pass hose assembly) to the transmission oil cooler and slide the clip to secure it.NOTE:
- Make sure to slide the flow shutting valve (water by-pass hose assembly) until it contacts the hose stopper of the transmission oil cooler.
- Make sure that the tabs of the clip are within the area shown in the illustration.
- Connect the flow shutting valve (water by-pass hose assembly) to the transmission oil cooler and slide the clip to secure it.
*a View A *b 90° *c Upper Side *d RH Side *e 2 to 7 mm (0.0787 to 0.276 in.) - - - Connect the flow shutting valve (water by-pass hose assembly) to the water by-pass outlet sub-assembly and slide the clip to secure it.NOTE:
- Make sure to slide the flow shutting valve (water by-pass hose assembly) until it contacts the hose stopper of the water by-pass outlet sub-assembly.
- Make sure that the tabs of the clip are within the area shown in the illustration.
- Connect the flow shutting valve (water by-pass hose assembly) to the water by-pass outlet sub-assembly and slide the clip to secure it.
Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)
Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

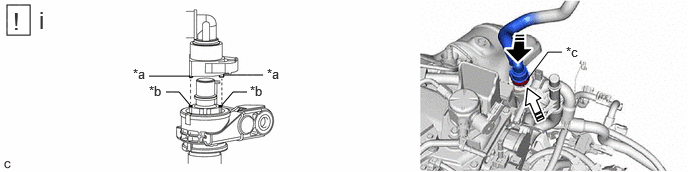

*a Protrusion *b Cutout *c Retainer - - Push Push in - Connect the inlet heater water hose connector to the flow shutting valve (water by-pass hose assembly).NOTE:
Check that there is no damage or foreign matter on the connecting parts of the water lines.
- Align the protrusions of the inlet heater water hose connector with the cutouts in the flow shutting valve (water by-pass hose assembly) and securely insert the inlet heater water hose connector to the stopper of the pipe.
- Push in the retainer.
- Check that the flow shutting valve (water by-pass hose assembly) and inlet heater water hose connector are securely connected by pulling on them.
- Connect the inlet heater water hose connector to the flow shutting valve (water by-pass hose assembly).
*a Protrusion *b Cutout *c Retainer - - Push Push in - Connect the outlet heater water hose connector to the No. 2 water by-pass pipe sub-assembly.NOTE:
Check that there is no damage or foreign matter on the connecting parts of the water lines.
- Align the protrusion of the No. 2 water by-pass pipe sub-assembly with the cutout in the outlet heater water hose connector and securely insert the outlet heater water hose connector to the stopper of the pipe.
- Push in the retainer.
- Check that the No. 2 water by-pass pipe sub-assembly and outlet heater water hose connector are securely connected by pulling on them.
- Connect the outlet heater water hose connector to the No. 2 water by-pass pipe sub-assembly.
- INSTALL FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)
Refer to INSTALLATION [11/2021 - ]
