Removal [09/2023 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

   Remove in this Direction

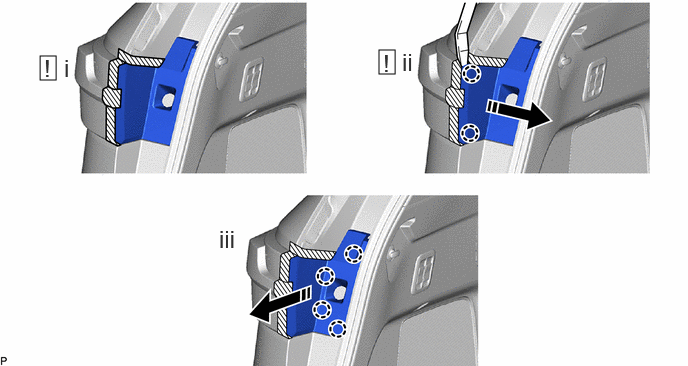

   1. Apply protective tape around the rear combination light cover as shown in the illustration.
   2. Using a moulding remover, disengage the 2 claws as shown in the illustration.
   3. Disengage the 4 claws as shown in the illustration to remove the rear combination light cover.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Guide	*b	Pin
   	Protective Tape		Remove in this Direction

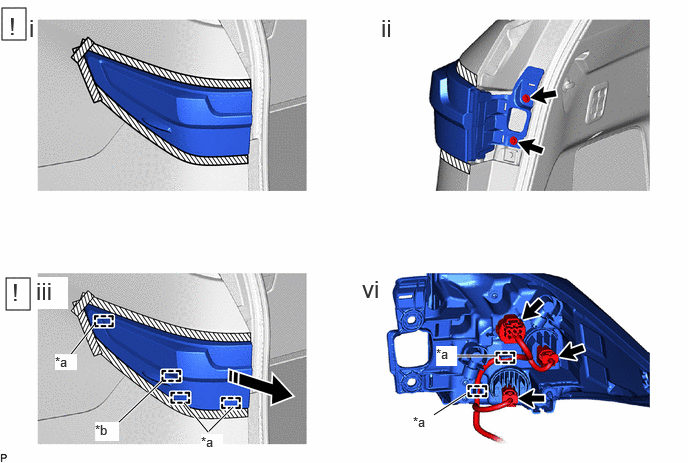

   1. Apply protective tape around the rear combination light sub-assembly as shown in the illustration.
   2. Remove the 2 screws.
   3. Pull the rear combination light sub-assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light sub-assembly.
      NOTE:

      To prevent the rear combination light sub-assembly from falling when disengaging the pin and 3 guides, make sure to hold the rear combination light sub-assembly.

   4. Disconnect the 3 connectors and disengage the 2 guides to remove the rear combination light sub-assembly.

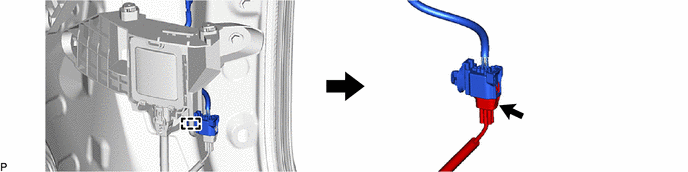

Refer to REMOVAL [09/2023 - 12/2023] , or refer to REMOVAL [12/2023 - ]
