Removal [09/2023 - ]: Procedure

Refer to REMOVAL [09/2023 - 12/2023] , or refer to REMOVAL [12/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Double-sided Tape

   -

   -

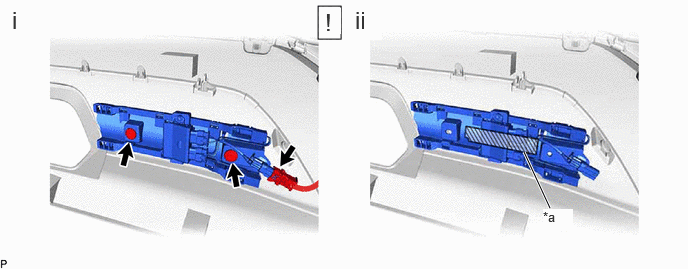

   1. Disengage the 2 clips and connector to remove the kick door control sensor with bracket.
   2. Separate the double-sided tape to remove the kick door control sensor with bracket.

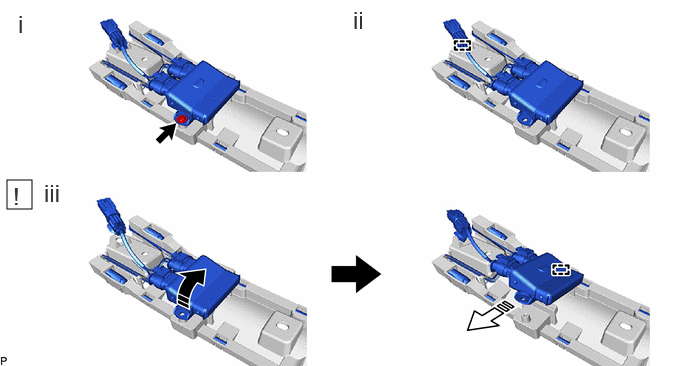

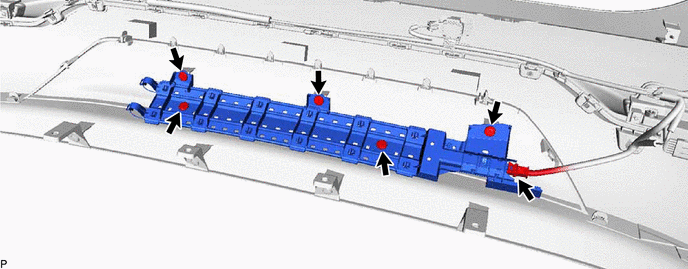

1. Disengage the 12 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction (1)

   Remove in this Direction (2)

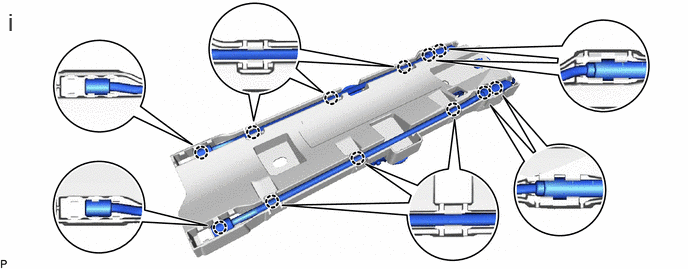

   1. Remove the screw.
   2. Disengage the clamp.
   3. Disengage the guide to remove the kick door control sensor from the kick door control bracket as shown in the illustration.
      NOTE:

      • Do not subject the kick door control sensor to a strong impact or drop it.
      • Do not reuse a kick door control sensor which has been subjected to a strong impact or dropped.
      • Be careful not to pull the wire harness.
      • Be careful not to twist the wire harness.
