Removal [09/2023 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [09/2023 - 12/2023] , or refer to REMOVAL [12/2023 - ]

  2. REMOVE REAR CENTER ULTRASONIC SENSOR

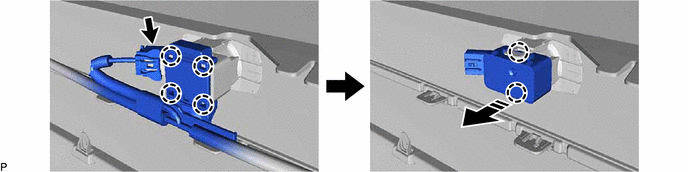

    1. GTY1235279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. Use the same procedure for the RH side and LH side.
  3. REMOVE REAR CORNER ULTRASONIC SENSOR
    1. for LH Side:

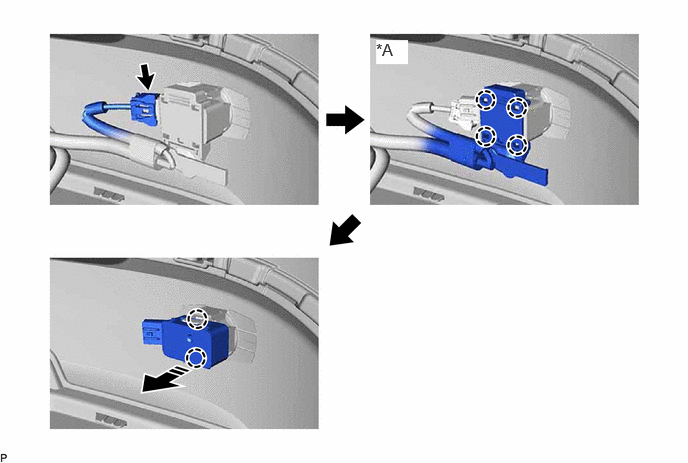

      GTY1228855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Advanced Park - -
      Remove in this Direction - -
    2. for RH Side:

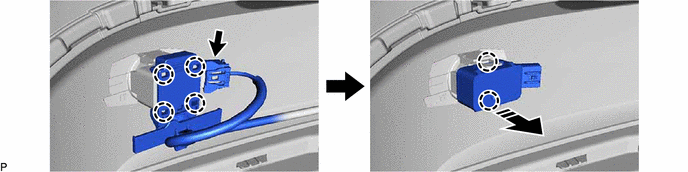

      GTY1231265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE REAR SIDE ULTRASONIC SENSOR (w/ Advanced Park)

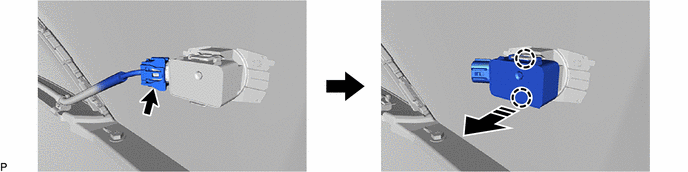

    1. GTY1229853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. The orientation for the RH side is the opposite of the LH side.
  5. REMOVE REAR NO. 2 ULTRASONIC SENSOR CLIP

    HINT:

    • Perform this procedure only when replacement of the rear ultrasonic sensor clip is necessary.
    • Use the same procedure for all ultrasonic sensor clips.
    1. GTY1241041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER

    HINT:

    Perform this procedure only when replacement of the rear center ultrasonic sensor retainer is necessary.

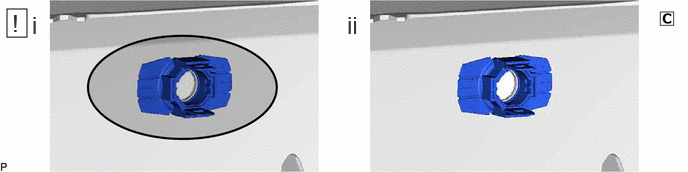

    1. GTY1073501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Heated Area - -
      1. Heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

        Standard Value

        Part Temperature
        Rear Bumper Assembly 40 to 60°C (104 to 140°F)
        Rear Center Ultrasonic Sensor Retainer
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the rear bumper assembly and rear center ultrasonic sensor retainer excessively.

      2. Remove the rear center ultrasonic sensor retainer.
    2. Use the same procedure for the RH side and LH side.
  7. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

    HINT:

    Perform this procedure only when replacement of the rear corner ultrasonic sensor retainer is necessary.

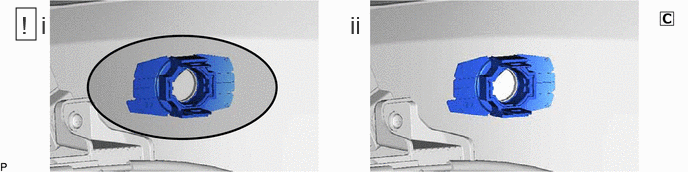

    1. GTY1073486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Heated Area - -
      1. Heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

        Standard Value

        Part Temperature
        Rear Bumper Assembly 40 to 60°C (104 to 140°F)
        Rear Corner Ultrasonic Sensor Retainer
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the rear bumper assembly and rear corner ultrasonic sensor retainer excessively.

      2. Remove the rear corner ultrasonic sensor retainer.
    2. The orientation for the RH side is the opposite of the LH side.
  8. REMOVE REAR SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)

    HINT:

    Perform this procedure only when replacement of the rear side ultrasonic sensor retainer is necessary.

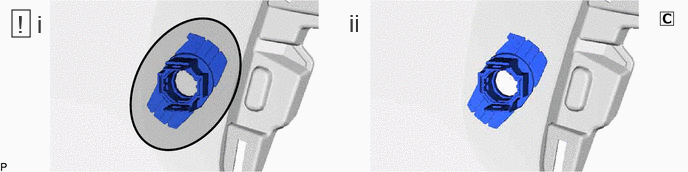

    1. GTY1073132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Heated Area - -
      1. Heat the rear bumper assembly and rear side ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

        Standard Value

        Part Temperature
        Rear Bumper Assembly 40 to 60°C (104 to 140°F)
        Rear Side Ultrasonic Sensor Retainer
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the rear bumper assembly and rear side ultrasonic sensor retainer excessively.

      2. Remove the rear side ultrasonic sensor retainer.
    2. The orientation for the RH side is the opposite of the LH side.
  9. REMOVE ULTRASONIC SENSOR CUSHION SET

    HINT:

    Perform this procedure only when replacement of the ultrasonic sensor cushion set is necessary.

    1. GTY1241272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
