Removal [09/2023 - 12/2023]: Procedure
- PRECAUTION (w/ Kick Sensor) NOTE:
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- REMOVE DECK BOARD ASSEMBLY (w/ Kick Sensor)
- except Gasoline Model:
Refer to PROCEDURE - Step 2
- except Gasoline Model:
- REMOVE BATTERY SERVICE HOLE COVER (w/ Kick Sensor)
- except Gasoline Model:
Refer to PROCEDURE - Step 3
- except Gasoline Model:
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Kick Sensor)
- for T24A-FTS (for Gasoline Model):
Refer to PROCEDURE - Step 2
- for T24A-FTS (for 1Motor-HEV Model):
Refer to PROCEDURE - Step 4
- for T24A-FTS (for Gasoline Model):
- REMOVE QUARTER PANEL WHEEL OPENING MOULDING LH
Refer to REMOVAL [09/2023 - ]
- REMOVE QUARTER PANEL WHEEL OPENING MOULDING RH
- Use the same procedure as for the LH side.
- REMOVE REAR COMBINATION LIGHT COVER LH
Refer to PROCEDURE - Step 1 - REMOVE REAR COMBINATION LIGHT COVER RH
- Use the same procedure as for the LH side.
- REMOVE REAR BUMPER ASSEMBLY

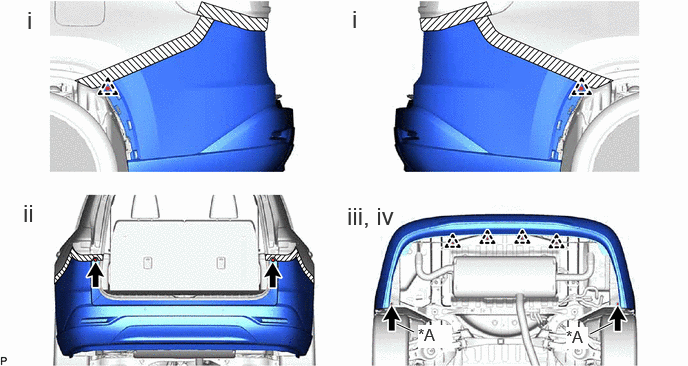

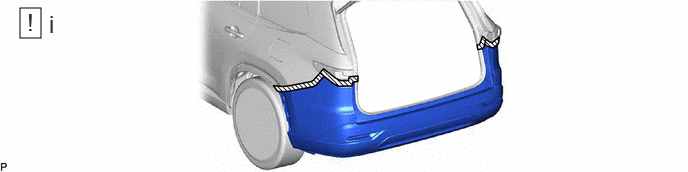

- Apply protective tape around the rear bumper assembly as shown in the illustration.
*A w/o Mudguard - - - Remove the 2 clips.
- Remove the 2 screws.
- Remove the 4 clips.
- w/o Mudguard:
1. Remove the 2 screws.

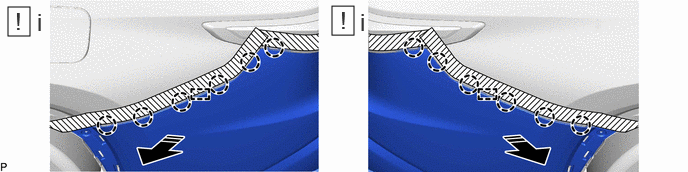

Remove in this Direction - - - Disengage the 12 claws and 2 guides as shown in the illustration.NOTE:
To avoid damaging the claws, do not forcibly pull the quarter outside moulding sub-assembly.
- Disengage the 12 claws and 2 guides as shown in the illustration.

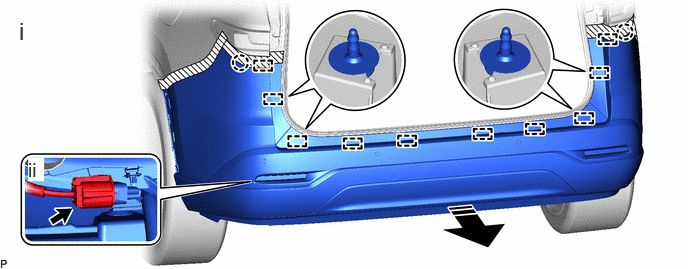

Remove in this Direction - - - Disengage the 2 claws, 6 guides and 4 pins to remove the rear bumper assembly as shown in the illustration.
- w/ connector:
- Disconnect the connector.
