Installation [10/2022 - 10/2024]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 450h+, 2025 Lexus RX 350h, 2024 Lexus RX 450h+, 2024 Lexus RX 350h, and 2023 Lexus RX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY LH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly LH is necessary.

    1. GTY1131004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length - -
      1. Install the engine mounting insulator sub-assembly LH with the bolt (A) and nut, and using SST, install the bolt (B).
        • SST: 09961-01270

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

        NOTE:

        Temporarily tighten the bolt (A), and then fully tighten the 2 bolts and nut in the order of (B), (A) and (C).

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [10/2022 - ]

        • When using SST (fulcrum length of 200 mm (7.87 in.)) + torque wrench (fulcrum length of 255 mm (10 in.)): 40 N.m (408 kgf/cm, 30 ft.lbf)
  2. INSTALL ENGINE MOUNTING SPACER

    HINT:

    Perform this procedure only when replacement of the engine mounting spacer is necessary.

    1. GTY1132023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the engine mounting spacer to the vehicle body with the 2 bolts.

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

        NOTE:

        Temporarily tighten the bolt (A), and then fully tighten the 2 bolts in the order of (B) and (A).

  3. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

    1. GTY1132382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the engine mounting insulator sub-assembly RH with the 2 bolts and nut.

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

        NOTE:

        Temporarily tighten the bolt (A), and then fully tighten the 2 bolts and nut in the order of (B), (A) and (C).

      2. Connect the No. 2 earth wire to the engine mounting insulator sub-assembly RH with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      3. Install the earth bolt cap.
      4. Connect the radiator reserve tank assembly with the bolt and nut.

        Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

        NOTE:

        Tighten the bolt and nut in the order of (A) and (B).

      5. Engage the 2 clamps.
      6. Install the No. 1 inverter reserve tank bracket with the bolt.

        Torque: 14 N.m (143 kgf/cm, 10 ft.lbf)

  4. CONNECT INVERTER RESERVE TANK ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

    Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  5. INSTALL ENGINE HANGERS
    See step  44
  6. REMOVE ENGINE ASSEMBLY FROM ENGINE STAND
  7. INSTALL ENGINE WIRE

    HINT:

    As the illustration shown is an example, the actual details may differ.

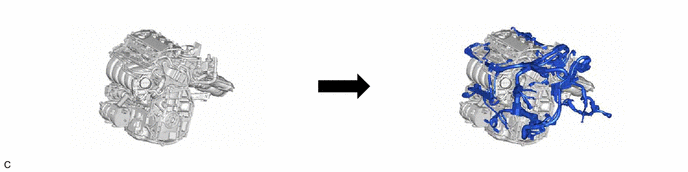

    1. GTY1130680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 CRANKSHAFT POSITION SENSOR PLATE
    See step  2
  9. INSTALL FLYWHEEL SUB-ASSEMBLY
    See step  3
  10. INSTALL TRANSMISSION INPUT DAMPER ASSEMBLY
    See step  4
  11. INSTALL HYBRID VEHICLE TRANSAXLE ASSEMBLY
    Refer to PROCEDURE - Step 14 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 14 [08/2023 - 10/2024]
  12. INSTALL REAR ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

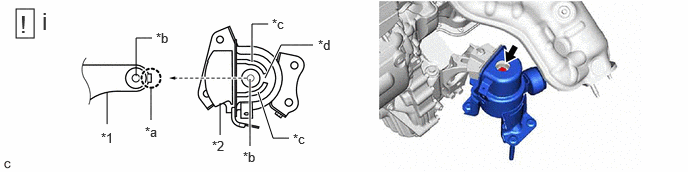

    1. GTY1132202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Engine Mounting Bracket *2 Rear Engine Mounting Insulator
      *a Protrusion *b Bolt Hole
      *c Inner Wall *d Gap
      1. Align and insert the protrusion of the rear engine mounting bracket into the gap between the 2 inner walls of the rear engine mounting insulator to align the bolt hole of the rear engine mounting bracket with the bolt hole of the rear engine mounting insulator, and install the rear engine mounting insulator with the bolt.

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

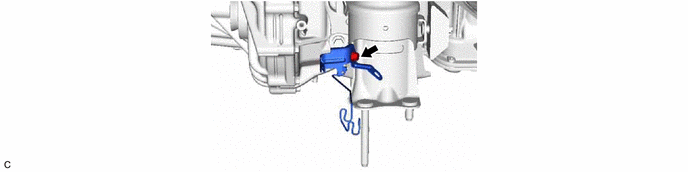

    2. GTY1130683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

  13. INSTALL FRONT ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the front engine mounting insulator is necessary.

    Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

  14. INSTALL FRONT FRAME ASSEMBLY

    Refer to PROCEDURE - Step 9 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 9 [08/2023 - 10/2024]

  15. INSTALL FLYWHEEL HOUSING SIDE COVER
  16. INSTALL OIL PUMP WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 1 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 1 [08/2023 - 10/2024]

  17. INSTALL WIRE HARNESS CLAMP BRACKET

    Refer to PROCEDURE - Step 2 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 2 [08/2023 - 10/2024]

  18. CONNECT NO. 2 TRANSMISSION OIL COOLER HOSE ASSEMBLY
    Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - 10/2024]
  19. INSTALL HV AIR CONDITIONING WIRE
    1. GTY1130682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

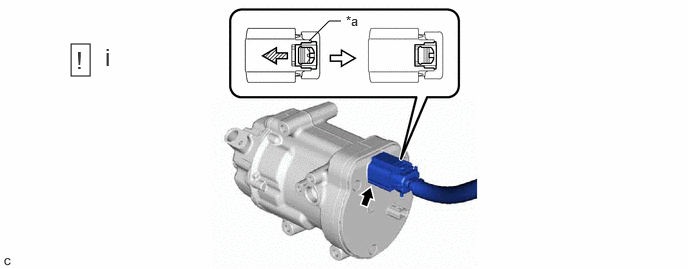

    2. GTY1132188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Green-colored Lock - -
      Slide - -
      1. Connect the connector and slide the green-colored lock as shown in the illustration to lock it securely.
        WARNING:

        Make sure to wear insulated gloves.

        NOTE:

        Make sure that the connector is connected securely.

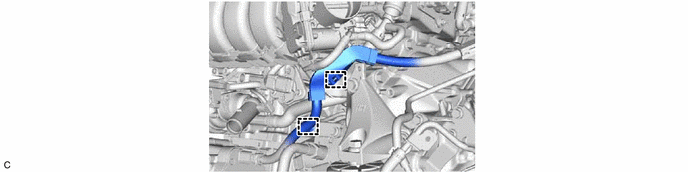

    3. GTY1130292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FLYWHEEL HOUSING UNDER COVER
  21. CONNECT ENGINE WIRE
    Refer to PROCEDURE - Step 27 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 27 [08/2023 - 10/2024]
  22. INSTALL STEERING GEAR HEAT INSULATOR
    Refer to PROCEDURE - Step 7 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 7 [08/2023 - 10/2024]
  23. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
    1. GTY1132616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Attachments - -
      1. Set the engine assembly with transaxle on an engine lifter.
        NOTE:
        • Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle level.
        • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
    2. GTY1132401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Engine Hanger *2 No. 2 Engine Hanger
    3. GTY1131177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

    4. GTY1132809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

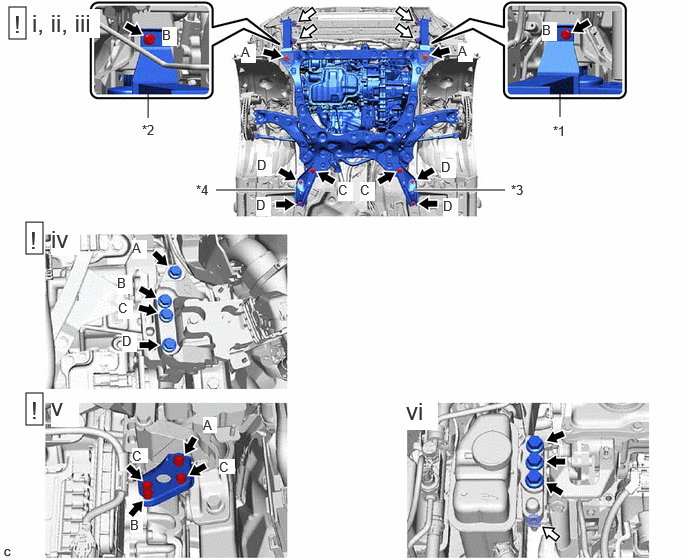

      *1 Front Bumper Extension Sub-assembly LH *2 Front Bumper Extension Sub-assembly RH
      *3 Front Suspension Member Brace Rear LH *4 Front Suspension Member Brace Rear RH
      Bolt Nut
      1. Operate the engine lifter and install the engine assembly with transaxle to the vehicle.
        WARNING:

        Do not raise the engine assembly with transaxle more than necessary. If the engine is raised excessively, the vehicle may also be lifted up.

        NOTE:
        • Make sure that the engine assembly with transaxle is clear of all wiring and hoses.
        • While raising the engine assembly with transaxle into the vehicle, do not allow it to contact the vehicle.
      2. Install the front bumper extension sub-assembly RH and front bumper extension sub-assembly LH to the front frame assembly and vehicle body with the 2 bolts (A), 2 bolts (B) and 4 nuts.

        Bolt (A)

        Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

        Bolt (B)

        Torque: 9.5 N.m (97 kgf/cm, 84 in.lbf)

        Nut

        Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

      3. Install the front suspension member brace rear RH and front suspension member brace rear LH to the front frame assembly and vehicle body with the 2 bolts (C) and 4 bolts (D).

        Bolt (C)

        Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

        Bolt (D)

        Torque: 62 N.m (632 kgf/cm, 46 ft.lbf)

      4. Install the engine mounting insulator sub-assembly LH to the hybrid vehicle transaxle assembly with the 4 bolts.

        Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

        NOTE:

        Fully tighten the 4 bolts in the order of (A), (C), (B) and (D).

      5. Install the engine mounting stay LH with the 4 bolts.

        Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

        NOTE:

        Temporarily tighten the bolt (A), and then fully tighten the 4 bolts in the order of (B), (C) and (A).

      6. Install the engine mounting insulator sub-assembly RH to the engine mounting bracket RH with the 3 bolts and nut.

        Bolt

        Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)

        Nut

        Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

    5. Perform "Inspection After Repair" after replacing the engine assembly.

      Refer to INITIALIZATION [10/2022 - ]

  24. INSTALL TRANSMISSION OIL COOLER AIR DUCT
    Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - 10/2024]
  25. CONNECT TIE ROD ASSEMBLY LH
    Refer to PROCEDURE - Step 9 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 9 [08/2023 - 10/2024]
  26. CONNECT TIE ROD ASSEMBLY RH

    Refer to PROCEDURE - Step 10 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 10 [08/2023 - 10/2024]

  27. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Refer to INSTALLATION [10/2022 - 08/2023] , or refer to INSTALLATION [08/2023 - ]

  28. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 11 [08/2023 - ] , or refer to PROCEDURE - Step 13 [08/2023 - ]

  29. INSTALL FRONT FLOOR COVER RH

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  30. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 19

  31. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
    Refer to PROCEDURE - Step 11 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 11 [08/2023 - 10/2024]
  32. CONNECT NO. 5 WATER BY-PASS HOSE
    1. GTY1131701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 120° *b Paint Mark
      *c Front Side *d Upper Side
      *e 2 to 7 mm (0.0787 to 0.276 in.) - -
      1. Connect the No. 5 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.
        NOTE:

        Make sure to slide the No. 5 water by-pass hose until it contacts the hose stopper.

  33. CONNECT NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY

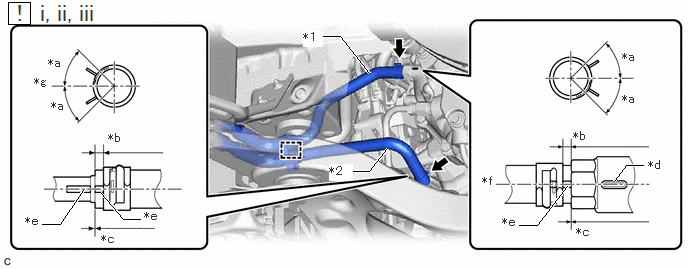

    1. GTY1133129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Inlet Motor Hose *2 Outlet Motor Hose
      *a 45° *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c 0 to 3 mm (0 to 0.118 in.) *d Marking
      *e Paint Mark *f Center of Paint Mark
      *g Upper Side - -
      1. Connect the outlet motor hose to the hybrid vehicle transaxle assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the outlet motor hose until it contacts the hose stopper.
        • Make sure that the claws of the clip are within the location shown in the illustration.
      2. Connect the inlet motor hose to the hybrid vehicle transaxle assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the inlet motor hose until it contacts the hose stopper.
        • Make sure that the claws of the clip are within the location shown in the illustration.
      3. Engage the clamp.
  34. CONNECT NO. 5 INVERTER COOLING HOSE (w/ Water Cooled Transaxle Oil Cooler)
    1. GTY1132391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 120° *b Paint Mark
      *c Upper Side *d Front Side
      *e 2 to 7 mm (0.0787 to 0.276 in.) - -
      1. Connect the No. 5 inverter cooling hose to the oil cooler assembly and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 5 inverter cooling hose until it contacts the hose stopper.
        • Make sure that the claws of the clip are within the location shown in the illustration.
  35. CONNECT WIRE HARNESS

    Bolt

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    Nut

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  36. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - ]
  37. CONNECT SUCTION HOSE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 4 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 4 [08/2023 - ]
  38. CONNECT NO. 2 RADIATOR HOSE
    1. GTY1131345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 120° *b Paint Mark
      *c Upper Side *d RH Side
      *e 2 to 7 mm (0.0787 to 0.276 in.) - -
      1. Connect the No. 2 radiator hose to the water inlet and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 2 radiator hose until it contacts the hose stopper.
        • Make sure that the claws of the clip are within the location shown in the illustration.
  39. CONNECT NO. 1 RADIATOR HOSE

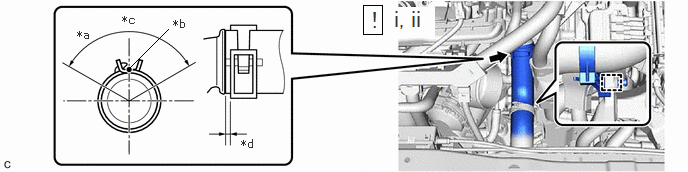

    1. GTY1129865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 120° *b Paint Mark
      *c Front Side *d 2 to 7 mm (0.0787 to 0.276 in.)
      1. Connect the No. 1 radiator hose to the water outlet and slide the clip to secure it.
        NOTE:
        • Make sure to slide the No. 1 radiator hose until it contacts the hose stopper.
        • Make sure that the claws of the clip are within the location shown in the illustration.
      2. Engage the clamp.
  40. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. GTY1133449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the fuel tube sub-assembly.

        Refer to PRECAUTION [10/2022 - 08/2023] , or refer to PRECAUTION [08/2023 - ]

      2. Install the No. 1 fuel pipe clamp to the fuel tube connector.
  41. CONNECT INLET HEATER WATER HOSE
    1. GTY1131464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion *b Cutout
      *c Retainer - -
      Push Push in
      1. Connect the inlet heater water hose connector to the flow shutting valve (water by-pass hose assembly).
        NOTE:

        Check that there is no damage or foreign matter on the connecting parts of the water lines.

        1. Align the protrusions of the inlet heater water hose connector with the cutouts in the flow shutting valve (water by-pass hose assembly) and securely insert the inlet heater water hose connector to the stopper of the pipe.

        2. Push in the retainer.

        3. Check that the flow shutting valve (water by-pass hose assembly) and inlet heater water hose connector are securely connected by pulling on them.

  42. CONNECT OUTLET HEATER WATER HOSE

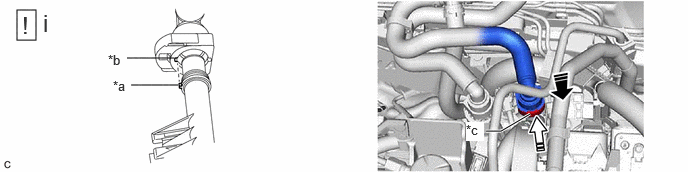

    1. GTY1133664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion *b Cutout
      *c Retainer - -
      Push Push in
      1. Connect the outlet heater water hose connector to the No. 2 water by-pass pipe sub-assembly.
        NOTE:

        Check that there is no damage or foreign matter on the connecting parts of the water lines.

        1. Align the protrusion of the No. 2 water by-pass pipe sub-assembly with the cutout in the outlet heater water hose connector and securely insert the outlet heater water hose connector to the stopper of the pipe.

        2. Push in the retainer.

        3. Check that the No. 2 water by-pass pipe sub-assembly and outlet heater water hose connector are securely connected by pulling on them.

  43. CONNECT NO. 5 INVERTER COOLING HOSE (w/o Water Cooled Transaxle Oil Cooler)
  44. CONNECT FUEL VAPOR FEED HOSE ASSEMBLY
  45. INSTALL HYBRID MOTOR CONTROL INVERTER ASSEMBLY

    Refer to INSTALLATION [10/2022 - ]

  46. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
    1. GTY1132232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Align the center of the grommet hole of the No. 1 engine cover sub-assembly with the oil filler cap assembly, then engage the 4 clips and install the No. 1 engine cover sub-assembly.
        NOTE:
        • Securely engage the clips.
        • If the clips are forcibly engaged or struck with an object, they may be damaged.
  47. ADD ENGINE OIL

    Refer to PROCEDURE - Step 5 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 5 [08/2023 - ]

  48. ADD HYBRID TRANSAXLE FLUID

    Refer to PROCEDURE - Step 3

  49. INSPECT HYBRID TRANSAXLE FLUID

    Refer to PROCEDURE - Step 4

  50. ADD ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 5 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 5 [08/2023 - ]

  51. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 2 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - ]

  52. WARM UP COMPRESSOR

    Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 4 [08/2023 - ]

  53. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 6 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 6 [08/2023 - ]

  54. INSPECT FOR HYBRID TRANSAXLE FLUID LEAK
  55. INSPECT FOR COOLANT LEAK (for Engine)

    Refer to PROCEDURE - Step 1

  56. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 5 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 6 [08/2023 - ]

  57. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 1 [08/2023 - ]

  58. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 6 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 6 [08/2023 - ]

  59. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1

  60. INSPECT ENGINE COOLANT LEVEL IN RESERVOIR TANK (for Engine)

    Refer to PROCEDURE - Step 2

  61. INSTALL NO. 2 FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 7 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 7 [08/2023 - ]

  62. INSTALL FRONT BUMPER LOWER ABSORBER
  63. INSTALL FRONT BUMPER ASSEMBLY

    for Sport Package:

    Refer to INSTALLATION [10/2022 - ]

    except Sport Package:

    Refer to INSTALLATION [10/2022 - ]

  64. INSTALL FRONT FENDER APRON SEAL LH

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  65. INSTALL FRONT FENDER APRON SEAL RH

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  66. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Bolt

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  67. INSTALL NO. 1 ENGINE UNDER COVER

    Bolt

    Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  68. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
  69. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
  70. INSTALL FRONT WHEELS

    Refer to INSTALLATION [10/2022 - ]

  71. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  72. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [10/2022 - ]

  73. PERFORM INITIALIZATION

    Refer to PROCEDURE - Step 11 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 11 [08/2023 - ]

  74. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [10/2022 - 08/2023] , or refer to AUTOMATIC LEARNING CHART [08/2023 - ]

  75. INSPECT IGNITION TIMING

    Refer to PROCEDURE - Step 7 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 7 [08/2023 - ]

  76. INSPECT ENGINE IDLE SPEED

    Refer to PROCEDURE - Step 8 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 8 [08/2023 - ]

  77. INSPECT CO/HC

    Refer to PROCEDURE - Step 10 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 10 [08/2023 - ]

  78. CHECK SPEED SENSOR SIGNAL

    Refer to SIGNAL CHECK [10/2022 - ]

scientia non olet · About LEMON Manuals
