INSTALL OIL PUMP WITH MOTOR ASSEMBLY
Torque: 46 N.m (469 kgf/cm, 34 ft.lbf)
INSTALL WIRE HARNESS CLAMP BRACKET
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

CONNECT NO. 2 TRANSMISSION OIL COOLER HOSE ASSEMBLY

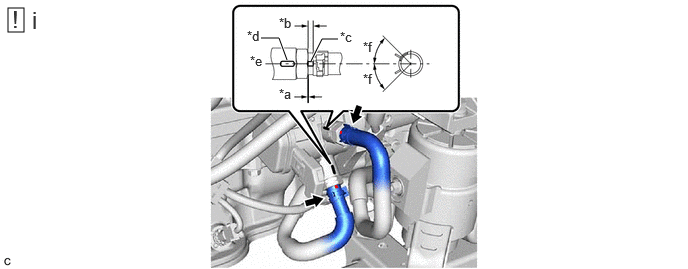

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	0 to 3 mm (0 to 0.118 in.)	*b	2 to 7 mm (0.0787 to 0.276 in.)
*c	Paint Mark	*d	Marking
*e	Center of Paint Mark	*f	45° (Claw of Clip Location)

Connect the No. 2 transmission oil cooler hose assembly to the oil pump with motor assembly and slide the 2 clips to secure it.
NOTE:
- Make sure to slide the No. 2 transmission oil cooler hose assembly until it contacts the hose stopper of the oil pump with motor assembly.
- Make sure to align the paint mark on each No. 2 transmission oil cooler hose assembly with each marking on the oil pump with motor assembly.
- Make sure that the claws of the clip are within the location shown in the illustration.

INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [08/2023 - ]
INSPECT HYBRID TRANSAXLE FLUID
Refer to PROCEDURE - Step 2
INSPECT FOR HYBRID TRANSAXLE FLUID LEAK
Refer to PROCEDURE - Step 5
INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
- for HEV Model:
  Refer to PROCEDURE - Step 66
- for PHEV Model:
  Refer to PROCEDURE - Step 67
INSTALL NO. 1 ENGINE UNDER COVER
- for HEV Model:
  Refer to PROCEDURE - Step 67
- for PHEV Model:
  Refer to PROCEDURE - Step 68
INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
