Installation [08/2023 - ]: Procedure

1. for HEV Model:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Discharge Port

   *b

   Intake Port

   1. When replacing the compressor with motor assembly with a new one, gradually discharge the inert gas from the service valve, and drain the following amount of oil from the new compressor with motor assembly before installation.

      Standard

      (Oil capacity inside the new compressor with motor assembly: 120 to 135 cc (4.06 to 4.56 fl.oz)) - (Remaining oil amount in the removed compressor with motor assembly) - 65 cc (2.20 fl.oz) = (Oil amount to be removed from the new compressor)

      NOTE:

      • When checking the compressor oil level, observe the precautions on the cooler removal/installation.
      • If a new compressor with motor assembly is installed without removing some oil, there will be too much oil in the system due to the oil remaining in the pipes of the vehicle. Excessive oil in the system prevents heat exchange in the refrigeration cycle and causes ineffective cooling.
      • If the amount of oil remaining in the old compressor with motor assembly is too small, check the air conditioning system for oil leaks.
      • Be sure to use ND-OIL 11 or equivalent compressor oil. If any compressor oil other than ND-OIL 11 is used, compressor with motor assembly insulation performance may decrease, resulting in leakage of electric power.
      • Make sure to drain compressor oil from the intake port.
      • Make sure to add compressor oil from the intake port.
      • If the amount of oil from the removed compressor with motor assembly plus an additional 65 cc (2.20 fl.oz) is then greater than the amount of oil in a new compressor with motor assembly, do not drain the compressor oil from the new compressor with motor assembly.
      • When it is not possible to confirm the amount of oil in the system such as when compressor oil is spilt due to damage caused by a vehicle collision, etc., install a new compressor without draining any oil. If also replacing the cooler condenser assembly, do not add the supplied oil (40 cc (1.35 fl.oz)).
2. for PHEV Model:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Discharge Port

   *b

   Intake Port

   1. When replacing the compressor with motor assembly with a new one, gradually discharge the inert gas from the service valve, and drain the following amount of oil from the new compressor with motor assembly before installation.

      Standard

      (Oil capacity inside the new compressor with motor assembly: 220 to 235 cc (7.45 to 7.94 fl.oz)) - (Remaining oil amount in the removed compressor with motor assembly) = (Oil amount to be removed from the new compressor)

      NOTE:

      • When checking the compressor oil level, observe the precautions on the cooler removal/installation.
      • If a new compressor with motor assembly is installed without removing some oil, there will be too much oil in the system due to the oil remaining in the pipes of the vehicle. Excessive oil in the system prevents heat exchange in the refrigeration cycle and causes ineffective cooling.
      • If the amount of oil remaining in the old compressor with motor assembly is too small, check the air conditioning system for oil leaks.
      • Be sure to use ND-OIL 11 or equivalent compressor oil. If any compressor oil other than ND-OIL 11 is used, compressor with motor assembly insulation performance may decrease, resulting in leakage of electric power.
      • Make sure to add compressor oil from the intake port.
      • When it is not possible to confirm the amount of oil in the system such as when compressor oil is spilt due to damage caused by a vehicle collision, etc., install a new compressor without draining any oil. If also replacing the cooler condenser assembly, do not add the supplied oil (40 cc (1.35 fl.oz)).

1. for Type A:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Connector (A)	*b	Connector (B)
   *c	Green-colored Lock	-	-
   	Install in this Direction		Slide

   1. Temporarily install the compressor with motor assembly as shown in the illustration.
   2. Using an E8 "TORX" socket wrench, install the 2 stud bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   3. Install the compressor with motor assembly with the bolt and 2 nuts in the order shown in the illustration.

      Torque: 24.5 N.m (250 kgf/cm, 18 ft.lbf)

   4. Connect the connector (B).
   5. Remove the insulating tape from the connector (A), and connect the connector (A) and slide the green-colored lock as shown in the illustration to securely lock it.
      WARNING:

      Make sure to wear insulated gloves.

      NOTE:

      Make sure that the connector is connected securely.

2. for Type B:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Connector (A)	*b	Connector (B)
   *c	Green-colored Lock	-	-
   	Install in this Direction		Slide

   1. Temporarily install the compressor with motor assembly as shown in the illustration.
   2. Install the compressor with motor assembly with the 3 bolts in the order shown in the illustration.

      Torque: 24.5 N.m (250 kgf/cm, 18 ft.lbf)

   3. Connect the connector (B).
   4. Remove the insulating tape from the connector (A), and connect the connector (A) and slide the green-colored lock as shown in the illustration to securely lock it.
      WARNING:

      Make sure to wear insulated gloves.

      NOTE:

      Make sure that the connector is connected securely.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

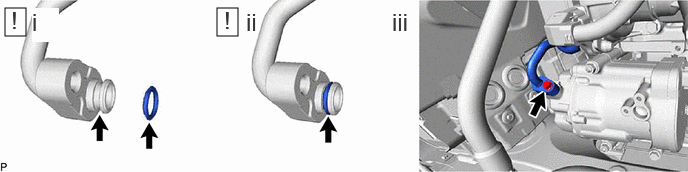

   1. Remove the vinyl tape, and sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor with motor assembly.

      Compressor Oil

      ND-OIL 11 or equivalent

   2. Install the O-ring to the discharge hose sub-assembly.
      NOTE:

      • Keep the O-ring and O-ring fitting surface free of foreign matter.
      • Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in leakage of electric power.
   3. Connect the discharge hose sub-assembly to the compressor with motor assembly with the bolt.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the vinyl tape, sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor with motor assembly.

      Compressor Oil

      ND-OIL 11 or equivalent

   2. Install the O-ring to the suction hose sub-assembly.
      NOTE:

      • Keep the O-ring and O-ring fitting surface free of foreign matter.
      • Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in leakage of electric power.
   3. Connect the suction hose sub-assembly to the compressor with motor assembly with the bolt.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

1. for HEV Model:

   Refer to PROCEDURE - Step 66 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 61 [10/2024 - ]

2. for PHEV Model:

   Refer to PROCEDURE - Step 67

Refer to PROCEDURE - Step 67 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 62 [10/2024 - ]

Refer to PROCEDURE - Step 65 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 60 [10/2024 - ]

1. Use the same procedure described for the LH side.

   Refer to INSTALLATION [10/2022 - ]

Refer to INSTALLATION [10/2022 - ]

1. for HEV Model:

   Refer to INSTALLATION [10/2022 - ]

2. for PHEV Model:

   Refer to INSTALLATION [08/2023 - ]

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 6
