Installation [10/2022 - ]: Procedure

INSTALL FLYWHEEL HOUSING SIDE COVER

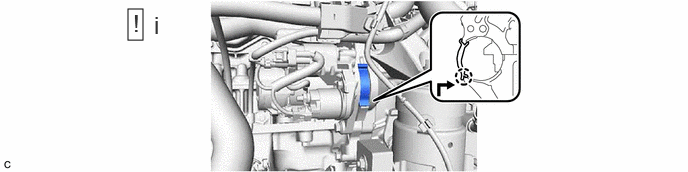

Align the protrusion with the cylinder block sub-assembly and engage the claw as shown in the illustration to install the flywheel housing side cover.
NOTE:
- Make sure the claw makes a click sound, indicating that it fits tightly.
- Replace the flywheel housing side cover with a new one if the claw does not fit tightly or is deformed.

CONNECT ENGINE WIRE
INSTALL INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY
Refer to INSTALLATION [10/2022 - ]
INSTALL AIR CLEANER HOSE ASSEMBLY

Refer to PROCEDURE - Step 51
CONNECT NO. 2 VENTILATION HOSE

Refer to PROCEDURE - Step 52
INSTALL AIR CLEANER ASSEMBLY

Refer to PROCEDURE - Step 4
INSTALL INLET AIR CLEANER ASSEMBLY
INSTALL COOL AIR INTAKE DUCT SEAL
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 5
ADD COOLANT (for Intercooler)
Refer to PROCEDURE - Step 5
ADD ENGINE COOLANT
Refer to PROCEDURE - Step 5
INSPECT FOR COOLANT LEAK (for Intercooler)
Refer to PROCEDURE - Step 1
INSPECT FOR COOLANT LEAK (for Engine)
Refer to PROCEDURE - Step 1
INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 84
INSTALL NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 85
INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
Refer to WORK PROCEDURE [10/2022 - ]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2022 - 08/2023] , or refer to AUTOMATIC LEARNING CHART [08/2023 - ]
