On-Vehicle Inspection [10/2022 - ]: Procedure

  1. INSPECT FOR COOLANT LEAK (for Engine)
    WARNING:

    Do not remove the reserve tank cap, radiator cap sub-assembly or radiator drain cock plug while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

    Pre-procedure1

    • Remove the radiator cap sub-assembly.

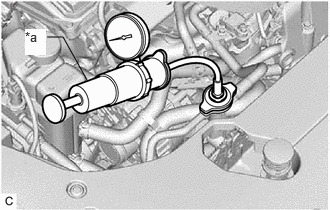

    • Fill the radiator assembly with engine coolant, and then install a radiator cap tester.
      GTY1131030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Radiator Cap Tester
    • Warm up the engine.
    • Pump the radiator cap tester to 103 kPa (1.1 kgf/cm2 , 15 psi), and then check that the pressure does not drop.
      • If the pressure drops, check the hoses, radiator assembly and engine water pump assembly for leaks.
      • If there are no signs of external engine coolant leaks, check the heater core, cylinder block sub-assembly and cylinder head sub-assembly.

    Post-procedure1

    • Remove the radiator cap tester.
    • Install the radiator cap sub-assembly.
  2. INSPECT ENGINE COOLANT LEVEL IN RESERVOIR TANK (for Engine)
    1. Check that the engine coolant level is between the MIN line and MAX line when the engine is cold. (for Type A)
      GTY1133486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a MAX Line
      *b MIN Line

      If the engine coolant level is low, check for leaks and add engine coolant to the MAX line.

      NOTE:

      Do not substitute plain water for engine coolant.

    2. Check that the engine coolant level is between the LOW line and FULL line when the engine is cold. (for Type B)
      GTY994161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a FULL Line
      *b LOW Line

      If the engine coolant level is low, check for leaks and add engine coolant to the FULL line.

      NOTE:

      Do not substitute plain water for engine coolant.

  3. INSPECT ENGINE COOLANT QUALITY (for Engine)
    WARNING:

    Do not remove the reserve tank cap, radiator cap sub-assembly or radiator drain cock plug while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

    Pre-procedure1

    • Remove the radiator cap sub-assembly.
    • Check if there are any excessive deposits of rust or scale around the radiator cap sub-assembly and water filler hole. Also, the engine coolant should be free of oil.

      If excessively dirty, replace the engine coolant.

    Post-procedure1

    • Install the radiator cap sub-assembly.
