Removal [10/2022 - ]: Procedure

  1. REMOVE DRIVE SHAFT BEARING BRACKET
    1. GTY1078349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  3. REMOVE PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 10

  4. DISCONNECT NO. 1 VENTILATION PRESSURE SENSOR HOSE
    1. GTY1077920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE AIR TUBE ASSEMBLY
    Refer to PROCEDURE - Step 9
  6. REMOVE FUEL DELIVERY GUARD

    Refer to PROCEDURE - Step 10

  7. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE

    Refer to PROCEDURE - Step 11

  8. DISCONNECT NO. 1 TURBO WATER HOSE

    Refer to PROCEDURE - Step 12

  9. DISCONNECT NO. 3 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 14

  10. DISCONNECT NO. 4 TURBO WATER HOSE

    Refer to PROCEDURE - Step 16

  11. DISCONNECT NO. 4 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 18

  12. DISCONNECT NO. 5 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 19

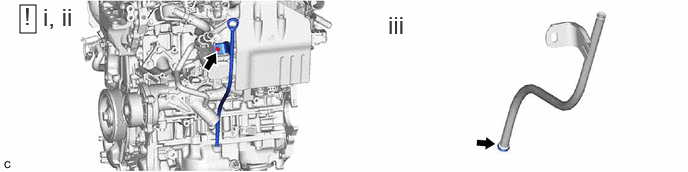

  13. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. GTY1077906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the engine oil level dipstick.
      2. Using an 8 mm socket wrench, remove the bolt and engine oil level dipstick guide from the intake manifold with intercooler assembly.
      3. Remove the O-ring from the engine oil level dipstick guide.
  14. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    Refer to PROCEDURE - Step 21

  15. REMOVE WATER CONTROL VALVE

    Refer to PROCEDURE - Step 10

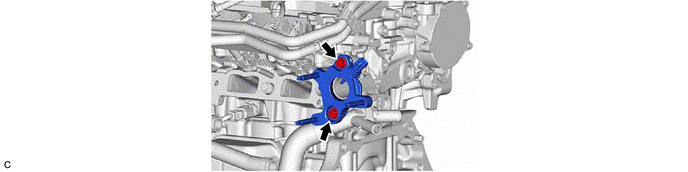

  16. REMOVE FRONT WATER BY-PASS JOINT
    1. GTY1078350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE WATER OUTLET GASKET
    1. GTY1078351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE CONVERTER WITH CATALYST ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  19. REMOVE VACUUM REGULATING VALVE ASSEMBLY

    Refer to PROCEDURE - Step 14

  20. REMOVE COMPRESSOR INLET ELBOW SUB-ASSEMBLY
    Refer to PROCEDURE - Step 15
  21. REMOVE NO. 1 TURBO INSULATOR

    Refer to PROCEDURE - Step 18

  22. DISCONNECT NO. 2 TURBO WATER HOSE

    Refer to PROCEDURE - Step 20

  23. DISCONNECT NO. 3 TURBO WATER HOSE

    Refer to PROCEDURE - Step 19

  24. REMOVE NO. 1 HEAT INSULATOR BRACKET

    Refer to PROCEDURE - Step 21

  25. REMOVE MANIFOLD STAY
    1. GTY1078368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE NO. 1 TURBO OIL PIPE
    1. GTY1080649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE NO. 1 TURBO OIL OUTLET GASKET
    1. GTY1078366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

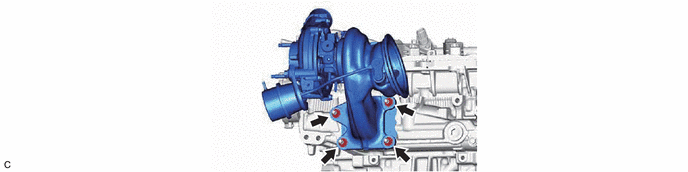

  28. REMOVE TURBOCHARGER SUB-ASSEMBLY
    1. GTY1080650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

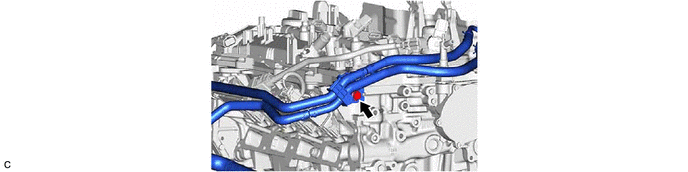

  29. DISCONNECT WATER OUTLET STAY
    1. GTY1078353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. GTY1077812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the EFI fuel pipe clamp (fuel delivery pipe side) from the fuel tube connector.
      2. Disconnect the fuel tube sub-assembly from the fuel (engine room side) pump assembly.

        Refer to PRECAUTION [10/2022 - ]

      3. Disconnect the fuel tube sub-assembly from the fuel delivery pipe.

        Refer to PRECAUTION [10/2022 - ]

  31. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 12
  32. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY
    Refer to PROCEDURE - Step 13
  33. REMOVE FUEL PUMP SPACER GASKET

    Refer to PROCEDURE - Step 14

  34. REMOVE FUEL PUMP LIFTER ASSEMBLY

    Refer to PROCEDURE - Step 15

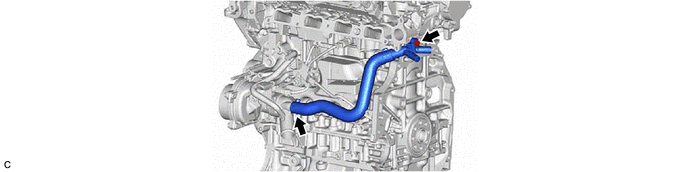

  35. REMOVE NO. 2 WATER BY-PASS PIPE
    1. GTY1078388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE FUEL DELIVERY PIPE
    Refer to PROCEDURE - Step 14
  37. REMOVE FUEL DELIVERY SPACER

    Refer to PROCEDURE - Step 15

  38. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 16

  39. REMOVE NO. 5 ENGINE WIRE

    Refer to PROCEDURE - Step 17

  40. REMOVE PORT FUEL INJECTOR ASSEMBLY
    Refer to PROCEDURE - Step 18
  41. REMOVE IGNITION COIL ASSEMBLY
    Refer to PROCEDURE - Step 4
  42. REMOVE WIRE HARNESS
    1. GTY1078586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 4 connectors.
      2. Disengage the 2 clamps.
      3. Using an 8 mm socket wrench, remove the bolt and wire harness.
  43. REMOVE WATER INLET HOUSING
    1. GTY1078394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE NO. 2 MANIFOLD STAY
    1. GTY1078367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE EXHAUST PIPE HEAT INSULATOR

    Refer to PROCEDURE - Step 2

  46. REMOVE WATER BY-PASS HOSE
    1. GTY1078370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE WATER BY-PASS PIPE SUB-ASSEMBLY
    1. GTY1078989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE WATER BY-PASS GASKET
    1. GTY1078373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE HEATER WATER HOSE BRACKET
    1. GTY1078407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side)
    Refer to PROCEDURE - Step 9
  51. REMOVE KNOCK CONTROL SENSOR
    Refer to PROCEDURE - Step 3
  52. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

    Refer to PROCEDURE - Step 2

  53. REMOVE CRANKSHAFT POSITION SENSOR
    Refer to PROCEDURE - Step 2
  54. REMOVE WIRE HARNESS CLAMP BRACKET
    1. GTY1078813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt and wire harness clamp bracket from the No. 2 timing chain cover assembly.
      2. Using an 8 mm socket wrench, remove the bolt and wire harness clamp bracket from the crankshaft bearing cap.
