Disassembly [12/2023 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    Refer to PRECAUTION [12/2023 - ]

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2023 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE FRONT DOOR UPPER TRIM COVER LH
    1. GTY1214509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover A, detach the claw and remove the front door upper trim cover LH.

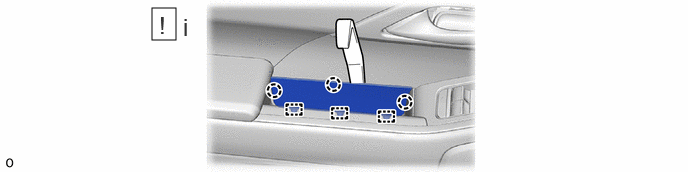

  4. REMOVE DOOR ARMREST COVER SUB-ASSEMBLY LH
    1. GTY1216394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover A, detach the claw and guide to remove the door armrest cover sub-assembly LH.
  5. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1

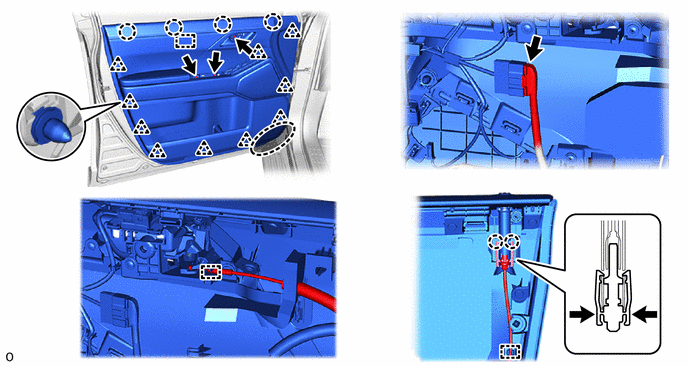

  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
    1. GTY1217217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here - -
  7. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
    1. GTY1217925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP LH
    1. GTY1217920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT DOOR PANEL PROTECTOR LH
    1. GTY1217919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT DOOR REAR OUTSIDE SEAL LH
    1. GTY1217922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
    Refer to PROCEDURE - Step 7
  12. REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  13. REMOVE OUTER MIRROR INSTALL HOLE COVER LH

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1217921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE HOLE PLUG
    1. GTY1219573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
    Refer to PROCEDURE - Step 7
  16. REMOVE FRONT DOOR SERVICE HOLE COVER LH
    1. GTY1214875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Location Mark *b Bead Mark
      Turn in this Direction - -
      1. Disconnect the connector and detach the clamp.
      2. Turn the service hole cover clip 45°clockwise to remove the 3 service hole cover clips as shown in the illustration.
      3. Detach the clip to remove front door service hole cover LH.
      4. Pull out the open lever front door lock remote control cable assembly LH and front door inside locking cable assembly LH from the front door service hole cover LH.
  17. REMOVE SIDE AIRBAG PRESSURE SENSOR LH
    Refer to PROCEDURE - Step 8
  18. REMOVE HOLE PLUG
    1. GTY1217883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH
    1. GTY1212860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the connector.
      2. Connect the cable to the negative (-) battery terminal and turn the ignition switch to ON.

        Refer to INSTALLATION [12/2023 - ]

      3. Move the front door glass sub-assembly LH so that the door glass bolts can be seen.

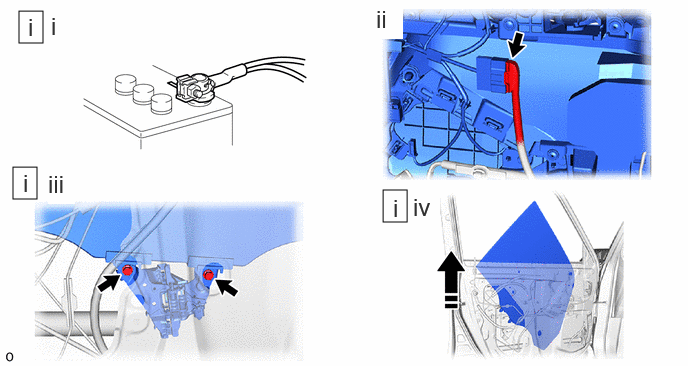

    2. GTY1213530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Turn the ignition switch off and disconnect the cable from the negative (-) battery terminal.
        WARNING:
        • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
          GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • If an airbag deploys for any reason, it may cause a serious injury.

        Refer to REMOVAL [12/2023 - ]

      2. Disconnect the connector.
      3. Remove the 2 bolts.
        NOTE:

        After the bolts are removed, do not allow the front door glass sub-assembly LH to fall.

      4. Remove the front door glass sub-assembly LH as shown in the illustration.
        NOTE:

        Be careful not to damage the front door glass sub-assembly LH.

  20. REMOVE FRONT DOOR WINDOW REGULATOR WITH MOTOR ASSEMBLY
    1. GTY1217880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE DOOR FRAME GARNISH LH
    1. GTY1219564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FRONT DOOR GLASS RUN LH
    1. GTY1217877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH
    1. GTY1217879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

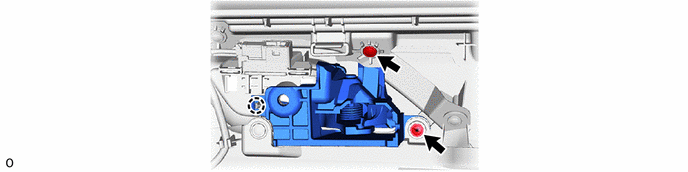

  24. REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH
    1. GTY1217878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

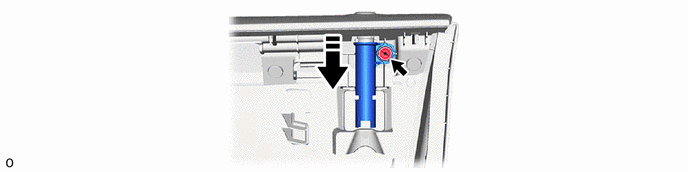

  25. REMOVE FRONT DOOR LOCK CONTROL KNOB HOLDER
    1. GTY1210966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  26. REMOVE DOOR LOCK CONTROL KNOB BEZEL LH
    1. GTY1212120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

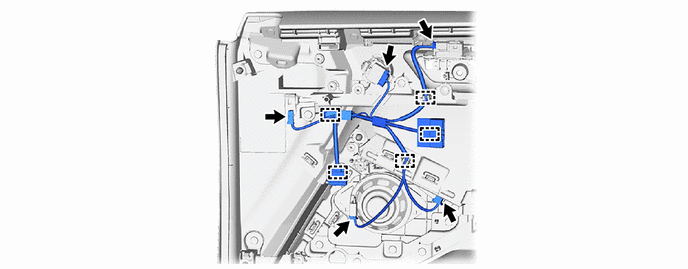

  27. REMOVE FRONT DOOR WIRE LH

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1217876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH
    1. GTY1216069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Using a screwdriver with its tip wrapped with protective tape, detach the claw and pull up the connector cover as shown in the illustration.
      2. Using a screwdriver with its tip wrapped with protective tape, disconnect the connector.
      3. Detach the claw and pull up the holder as shown in the illustration.
      4. Remove the front door outside handle assembly LH as shown in the illustration.
  29. REMOVE HOLE PLUG
    1. GTY1217873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
    1. GTY1212298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, loosen the "TORX" screw.
      2. Remove the front door lock cylinder assembly.
  31. REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)
    1. GTY1212302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, loosen the "TORX" screw.
      2. Detach the claw and remove the front door outside handle cover.
  32. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
    Refer to PROCEDURE - Step 19
  33. REMOVE DOOR LOCK WIRING HARNESS SEAL
    Refer to PROCEDURE - Step 20
  34. REMOVE FRONT DOOR FRONT OUTSIDE HANDLE PAD
    1. GTY1217869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE FRONT DOOR REAR OUTSIDE HANDLE PAD
    1. GTY1217868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

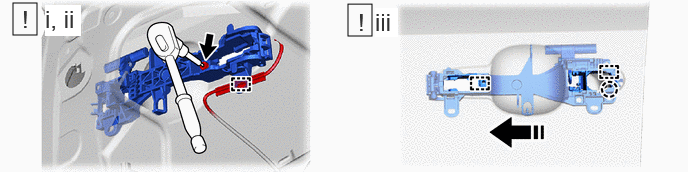

  36. REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH
    1. GTY1216845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a T30 "TORX" socket wrench, loosen the "TORX" screw.
      2. Detach the clamp.
      3. Detach the claw and guide to remove the front door outside handle frame sub-assembly LH as shown in the illustration.
  37. REMOVE FRONT DOOR LOCK OPEN ROD LH
    1. GTY1212770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  38. REMOVE FRONT DOOR CHECK ASSEMBLY LH
    1. GTY1217909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE FRONT DOOR WEATHERSTRIP LH
    NOTE:

    When removing the front door weatherstrip LH, if the double-sided tape is difficult to remove, heat the adhesive of the front door weatherstrip LH using a heat light.
    STANDARD VALUE

    Part Temperature
    Front Door Weatherstrip LH 20 to 30 °C (68 to 86 °F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front door weatherstrip LH excessively.

      1. Using a clip remover with its tip wrapped in protective tape, disengage the clips.
      2. Remove the double-sided tape and front door weatherstrip.
        NOTE:

        Remove any remaining double-sided tape from the front door panel.

    2. GTY1219581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
      1. Heat the adhesive of the front door weatherstrip LH using a heat light.
      2. Detach the double-sided Tape and clip to remove the front door weatherstrip LH.
  40. REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER LH
    Refer to PROCEDURE - Step 15
  41. REMOVE FRONT DOOR BELT MOULDING LH
    Refer to PROCEDURE - Step 16
  42. REMOVE FRONT DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)
    Refer to PROCEDURE - Step 4
  43. REMOVE FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 1
  44. REMOVE FRONT DOOR PANEL CUSHION
    1. GTY1217901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE HOLE PLUG
    1. GTY1217900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE FRONT DOOR DUST PROOF SEAL
    1. GTY1217896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE SCREW GROMMET
    1. GTY1219568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE NO. 1 BLACK OUT TAPE LH
    Refer to PROCEDURE - Step 3
  49. REMOVE FRONT DOOR NO. 2 STRIPE LH
    Refer to PROCEDURE - Step 4
  50. REMOVE FRONT DOOR OUTSIDE STRIPE LH
    Refer to PROCEDURE - Step 5
  51. REMOVE FRONT DOOR WIRE LH

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1217898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE FRONT DOOR NO. 3 WEATHERSTRIP LH (w/ Weatherstrip)
    NOTE:

    When removing the front door No. 3 weatherstrip LH, if the double-sided tape is difficult to remove, heat the adhesive of the front door weatherstrip LH using a heat light.

    HINT: In order to remove the front door No. 3 weatherstrip LH, first remove the front door panel.
    STANDARD VALUE

    Part Temperature
    Front Door No. 3 Weatherstrip LH 20 to 30 °C (68 to 86 °F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front door No. 3 weatherstrip LH excessively.

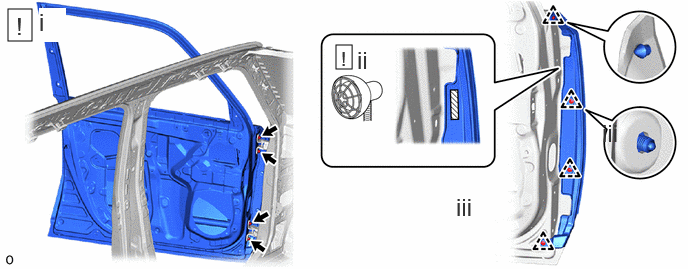

    1. GTY1213214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
      1. Remove the 4 bolts and front door panel LH.
        WARNING:

        Be sure to perform this procedure with 2 or more persons as the part is very heavy.

      2. Heat the adhesive of the front door No. 3 weatherstrip LH using a heat light.
      3. Detach the double-sided Tape and clip to remove the front door No. 3 weatherstrip LH.
