Removal [12/2023 - ]: Procedure
- REMOVE FRONT DOOR UPPER TRIM COVER LH
Refer to PROCEDURE - Step 3 - REMOVE DOOR ARMREST COVER SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 4 - REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 6

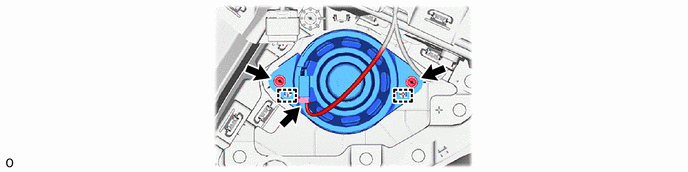

- REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for 21 Speakers) NOTE:
Do not touch the cone of the front No. 3 speaker assembly.

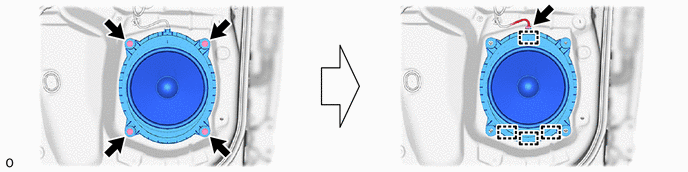

- REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for 21 Speakers) NOTE:
Do not touch the cone of the front No. 2 speaker assembly.
- REMOVE FRONT NO. 1 SPEAKER ASSEMBLY NOTE:
Do not touch the cone of the front No. 1 speaker assembly.
