Removal [12/2023 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  2. REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION
    Refer to PROCEDURE - Step 2
  3. REMOVE NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION
    1. Use the same procedure described for the No. 2 instrument panel finish panel cushion.
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 24

  5. REMOVE LOWER INSTRUMENT PANEL

    Refer to PROCEDURE - Step 15

  6. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  7. REMOVE UPPER CONSOLE PANEL ASSEMBLY
    Refer to PROCEDURE - Step 4
  8. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 25

  9. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    Refer to PROCEDURE - Step 26
  10. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
    Refer to PROCEDURE - Step 10
  11. REMOVE STEREO PLAYER FINISH PANEL

    Refer to PROCEDURE - Step 11

  12. REMOVE TELEPHONE ECU WIRE

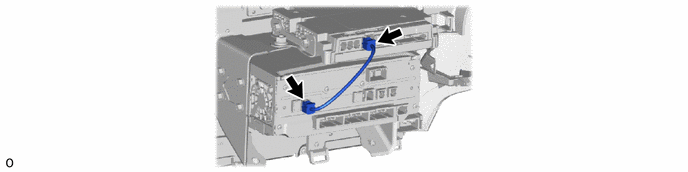

    1. GTY1217421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
    1. GTY1217415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 TELEPHONE BRACKET
    1. GTY1217414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 TELEPHONE BRACKET
    1. GTY1217416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
