Removal [12/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2021 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [12/2021 - ]

  3. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 2

  4. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  5. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE ASSEMBLY RH

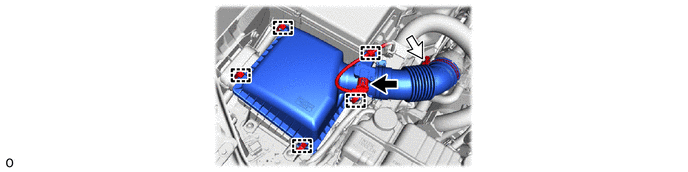

    1. GTY1074051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE ASSEMBLY LH

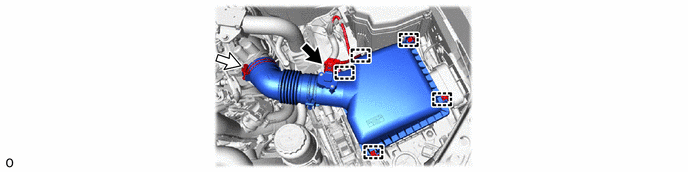

    1. GTY1074050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE UPPER ENGINE SIDE UNDER COVER PLATE LH

    Refer to PROCEDURE - Step 41

  9. REMOVE REAR ENGINE SIDE UNDER COVER ASSEMBLY LH

    Refer to PROCEDURE - Step 42

  10. REMOVE ENGINE SIDE UNDER COVER RH

    Refer to PROCEDURE - Step 43

  11. DISCONNECT ENGINE WIRE

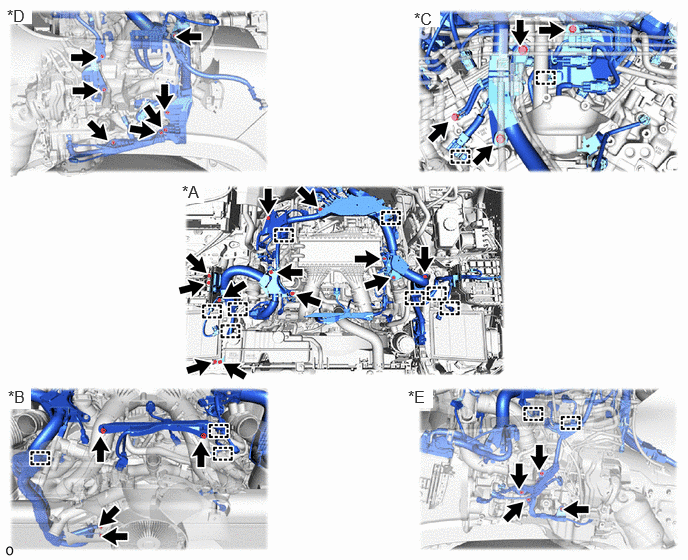

    1. GTY1074497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Upper Side *B for Front Side
      *C for Rear Side *D for RH Side
      *E for LH Side - -
  12. REMOVE COOLING FAN WIRE
    Refer to PROCEDURE - Step 19
  13. REMOVE NO. 1 AIR TUBE ASSEMBLY

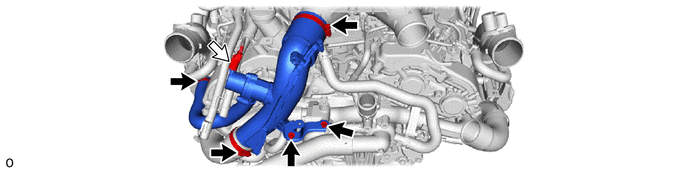

    1. GTY1041445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 AIR TUBE ASSEMBLY

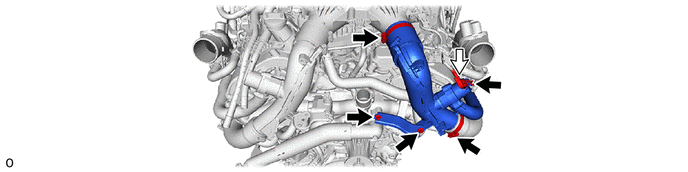

    1. GTY1043024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 5 AIR HOSE
    1. GTY1041383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 AIR HOSE
    1. GTY1041377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 4 AIR HOSE
    1. GTY1042564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE TURBO PRESSURE SENSOR

    Refer to PROCEDURE - Step 2

  19. REMOVE NO. 2 TURBO PRESSURE SENSOR

    Refer to PROCEDURE - Step 2

  20. REMOVE NO. 1 TURBO PRESSURE SENSOR (w/ Canister Pump Module)

    Refer to PROCEDURE - Step 4

  21. REMOVE INTERCOOLER ASSEMBLY

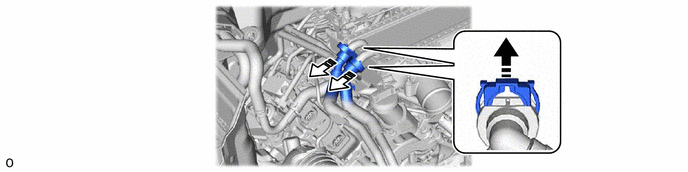

    1. GTY1074255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Move the Retainer Upwards Disconnect the Intercooler Cooling Water Pipe Assembly

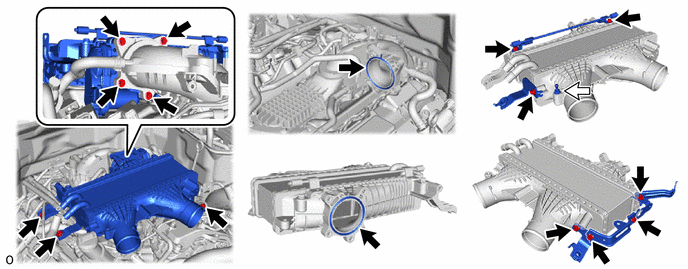

    2. GTY1074034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
