Removal [12/2021 - ]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP
    HINT:
    • Use the same procedure for the RH and LH sides.
    • The procedure described below is for the LH side.

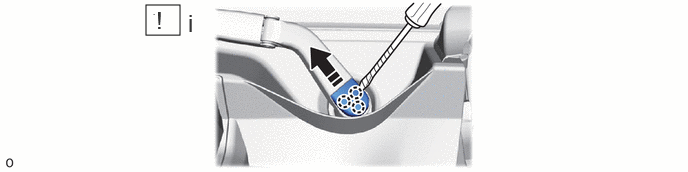

    1. GTY1082452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Protective Tape
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration to remove the front wiper arm head cap.
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

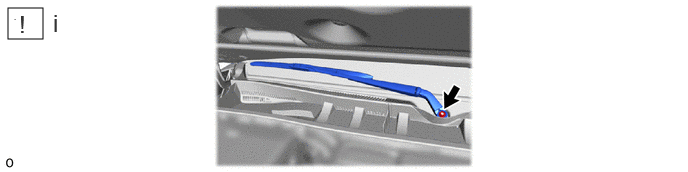

    1. GTY1081691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and front wiper arm and blade assembly RH.

        HINT:

        While holding the front wiper arm and blade assembly RH, loosen the nut.

  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

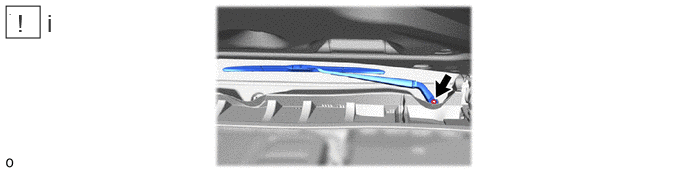

    1. GTY1081689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut and the front wiper arm and blade assembly LH.

        HINT:

        While holding the front wiper arm and blade assembly LH, loosen the nut.

  4. REMOVE WINDSHIELD OUTSIDE MOULDING RH

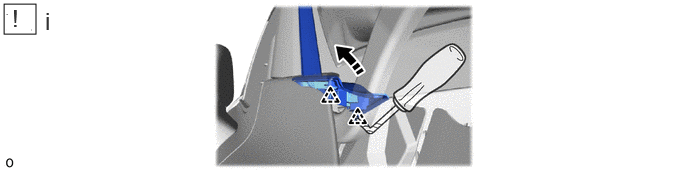

    1. GTY1081583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Protective Tape
      1. Using a clip remover with its tip wrapped with protective tape, detach the clip and remove the windshield outside moulding RH.
  5. REMOVE WINDSHIELD OUTSIDE MOULDING LH

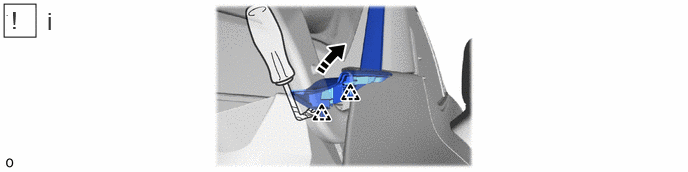

    1. GTY1082079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Protective Tape
      1. Using a clip remover with its tip wrapped with protective tape, detach the clip and remove the windshield outside moulding LH.
  6. REMOVE ENGINE SIDE COVER RH

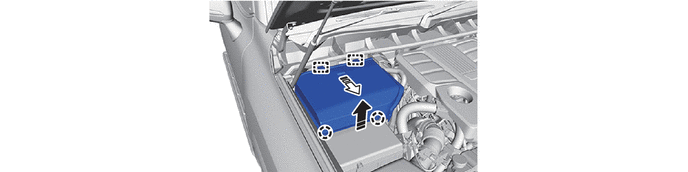

    1. GTY1067156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  7. REMOVE ENGINE SIDE COVER LH

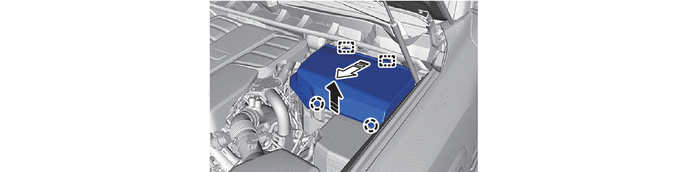

    1. GTY1066668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  8. REMOVE HOOD TO COWL TOP SEAL

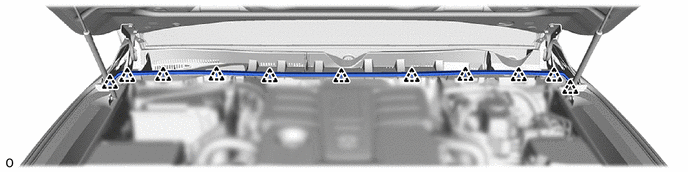

    1. GTY1081713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE COWL TOP VENTILATOR LOUVER RH

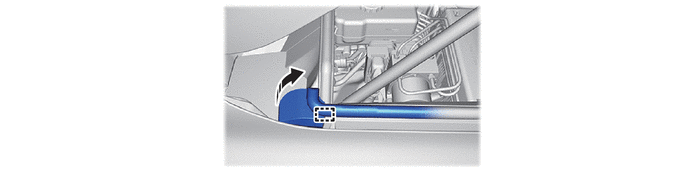

    1. GTY1127072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) - -

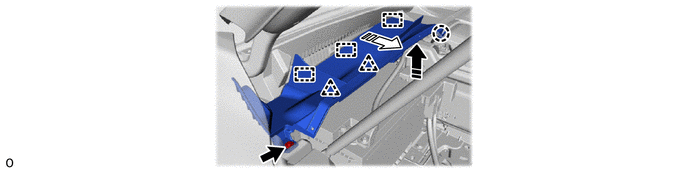

    2. GTY1069551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  10. REMOVE COWL TOP VENTILATOR LOUVER LH

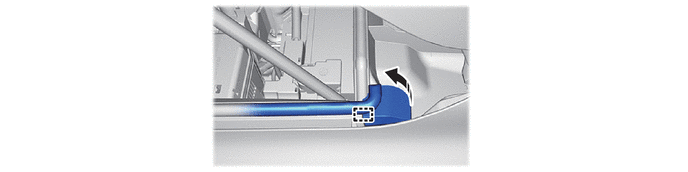

    1. GTY1125422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) - -

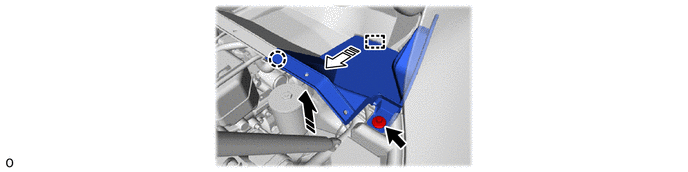

    2. GTY1069617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  11. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
    NOTE:

    To prevent damage to the windshield glass, remove any foreign matter (sand, dust, etc.) from around the contacting surfaces of the cowl top ventilator louver sub-assembly and windshield glass.

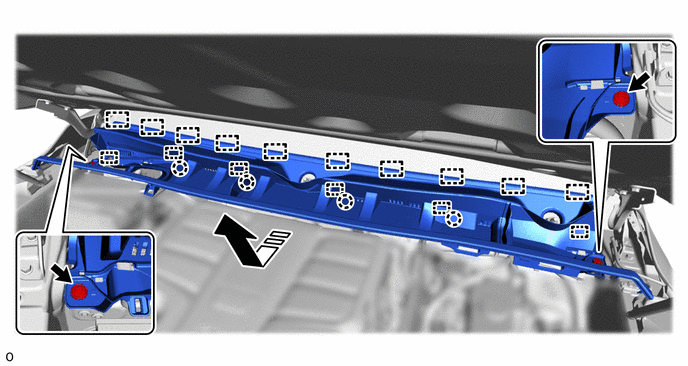

    1. GTY1069772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  12. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    NOTE:

    Be careful not to damage the windshield glass when removing the windshield wiper motor and link assembly.

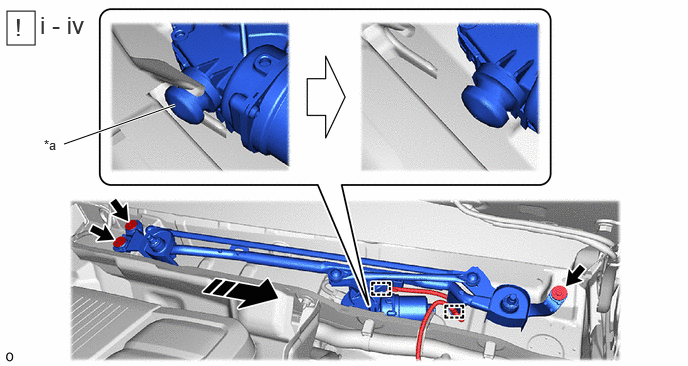

    1. GTY1122797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Motor Grommet - -
      Slide in this Direction - -
      1. Remove the 3 bolts.
      2. Detach the motor grommet and remove the front wiper motor and link as shown in the illustration.
      3. Slide the front wiper motor and link toward the outside of the vehicle.
      4. Slide the front wiper motor and link toward the inside of the vehicle and detach the wire harness clamp.

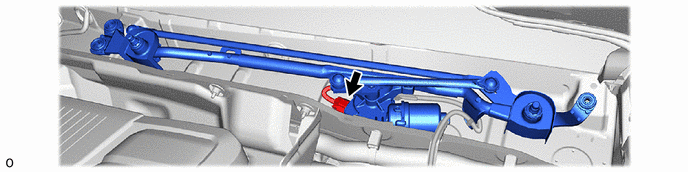

    2. GTY1125164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

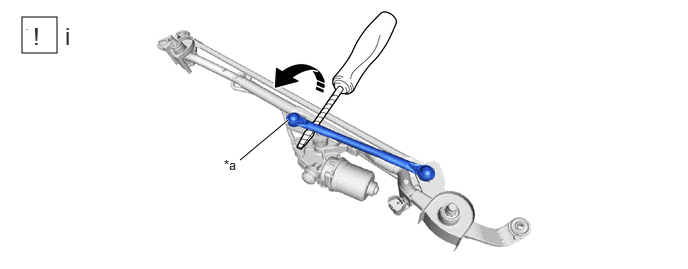

    1. GTY1082625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wiper Motor Pivot - -
      Remove in this Direction Protective Tape
      1. Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 1 wiper ring rod from the wiper motor pivot as shown in the illustration.

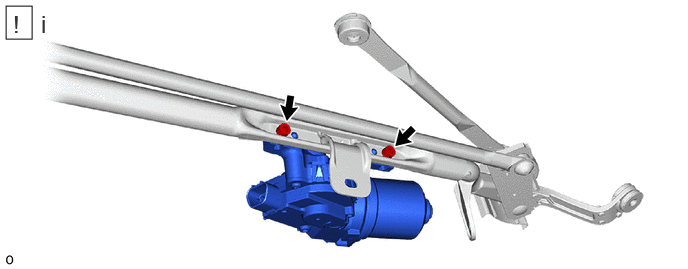

    2. GTY1124189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, remove the 2 "TORX" screws and the windshield wiper motor assembly.
        NOTE:

        Do not remove the wiper crank arm from the windshield wiper motor assembly.
