Installation [03/2017 - 05/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CONSOLE BOX ASSEMBLY

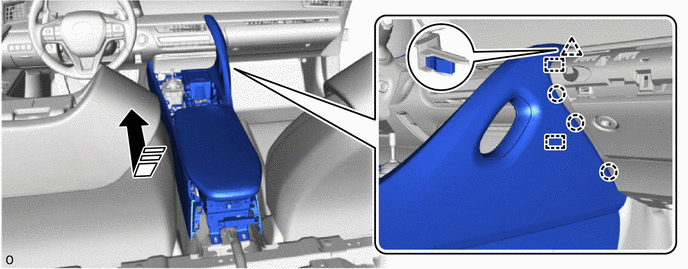

    1. Align the guides and attach the claws and clip in the direction of the arrow shown in the illustration to temporarily install the console box assembly.
      GTY802893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    2. Install the bolt.
      GTY825553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 bolts.
      GTY825554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 5 bolts.
      GTY825555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the console box assembly with the 2 bolts.
      GTY825556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the 2 connectors and attach the clamp.
      GTY825557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 GLOVE COMPARTMENT PANEL

    Refer to PROCEDURE - Step 29 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 29 [06/2019 - 04/2020] , or see step  29 [04/2020 - 05/2023]

  3. INSTALL EQUIPMENT SET PANEL
    1. Connect the 3 connectors.
      GTY825560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

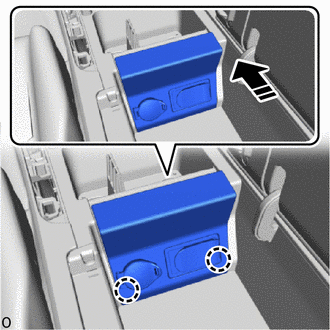

    2. Attach the claws in the direction of the arrow shown in the illustration.
      GTY802282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

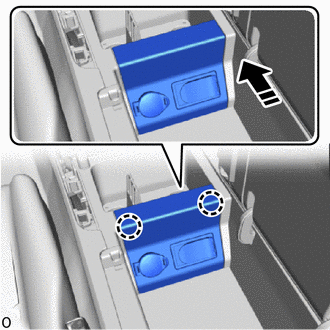

    3. Attach the claws in the direction of the arrow shown in the illustration to install the equipment set panel.
      GTY809955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL EQUIPMENT SET PANEL COVER
    1. Attach the claws in the direction of the arrow shown in the illustration to install the equipment set panel cover.
      GTY789231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL LOWER CONSOLE BOX
    1. Attach the claws in the direction of the arrow shown in the illustration to install the lower console box.
      GTY794741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  6. INSTALL UPPER CONSOLE BOX
    1. Align the guide and attach the claws in the direction of the arrow shown in the illustration to install the upper console box.
      GTY776252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  7. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 6

  8. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 7

  9. INSTALL SHIFTING HOLE COVER ASSEMBLY
    1. Connect the 3 connectors.
      GTY825572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

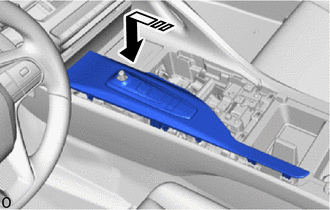

    2. Set the shifting hole cover assembly on the shift lever in the direction of the arrow shown in the illustration.
      GTY811558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

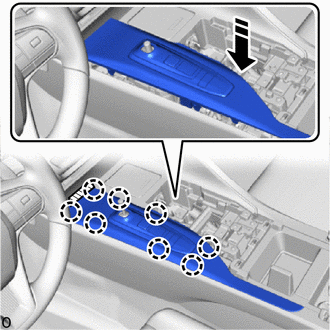

    3. Attach the claws in the direction of the arrow shown in the illustration.
      GTY819792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

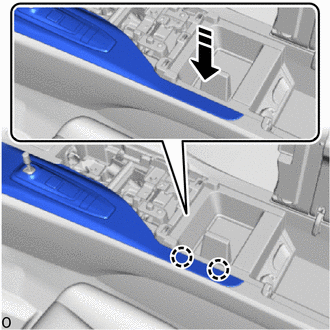

    4. Attach the claws in the direction of the arrow shown in the illustration to install the shifting hole cover assembly.
      GTY792683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    5. Remove the protective tape.
  10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to INSTALLATION [03/2017 - ]

  11. INSTALL RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 4

  12. INSTALL REAR CONSOLE BOX POCKET

    Refer to PROCEDURE - Step 5
