Removal [09/2015 - ]: Procedure

  1. REMOVE OUTER MIRROR

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 OUTER MIRROR COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 OUTER MIRROR COVER

    Refer to PROCEDURE - Step 3

  4. REMOVE OUTER MIRROR HOLE COVER

    Refer to PROCEDURE - Step 4

  5. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

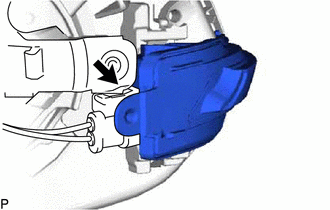

    1. Disconnect the connector.
      GTY655322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

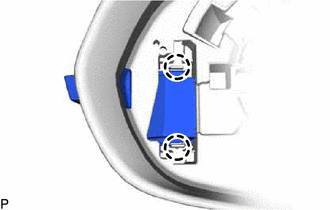

    2. Disengage the 2 claws to remove the side turn signal light assembly.
      GTY655321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
