Removal [09/2015 - ]: Procedure

  1. REMOVE OUTER MIRROR

    See step  1

  2. REMOVE NO. 1 OUTER MIRROR COVER

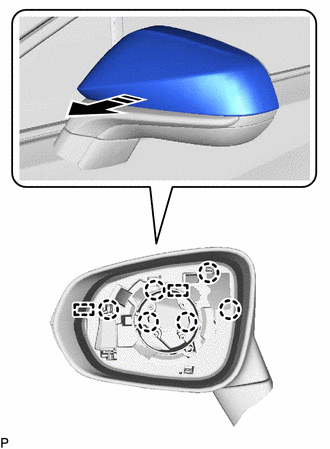

    1. Disengage the 6 claws and 2 guides to remove the No. 1 outer mirror cover as shown in the illustration.
      GTY656640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
