Removal [09/2015 - ]: Procedure

  1. REMOVE OUTER MIRROR
    1. Apply protective tape to the areas shown in the illustration.

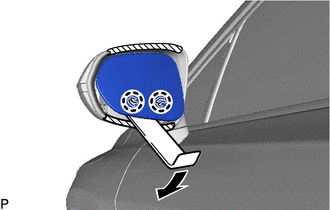

      GTY613553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Push the upper part of the mirror surface and tilt it.
    3. Using a moulding remover, disengage the 2 claws on the lower part of the outer mirror as shown in the illustration.
      NOTE:

      Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

    4. Push the lower part of the mirror surface and tilt it.
    5. Using a moulding remover, disengage the 2 claws on the upper part of the outer mirror as shown in the illustration.

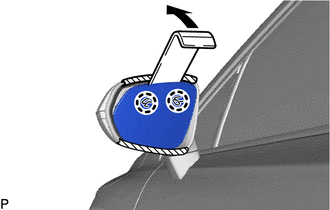

      GTY616548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.

    6. Disengage the clamp.

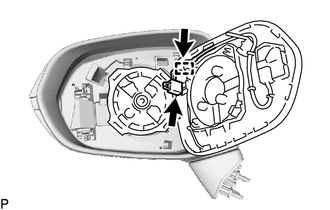

      GTY616551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disconnect the 2 connectors to remove the outer mirror.
