Removal [11/2021 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE BATTERY SERVICE COVER PLATE

    Refer to PROCEDURE - Step 3 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 3 [03/2024 - ]

  3. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 7 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 7 [03/2024 - ]

  4. REMOVE REAR FLOOR BOARD REAR RH

    Refer to PROCEDURE - Step 8 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 8 [03/2024 - ]

  5. REMOVE JUNCTION BLOCK SERVICE COVER

    Refer to PROCEDURE - Step 9 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 9 [03/2024 - ]

  6. REMOVE REAR FLOOR BOARD REAR LH

    Refer to PROCEDURE - Step 10 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 10 [03/2024 - ]

  7. REMOVE FRONT DECK FLOOR BOX

    Refer to PROCEDURE - Step 11 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 11 [03/2024 - ]

  8. REMOVE DECK BOARD SET SUPPORT

    Refer to PROCEDURE - Step 12 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 12 [03/2024 - ]

  9. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 21 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 21 [03/2024 - ]

  10. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 23 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 23 [03/2024 - ]

  11. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 34 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 34 [03/2024 - ]

  12. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 22

  13. REMOVE NO. 1 SIDE TRIM BASE COVER LH

    Refer to PROCEDURE - Step 35 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 35 [03/2024 - ]

  14. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 37 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 37 [03/2024 - ]

  15. REMOVE ROPE HOOK ASSEMBLY
    Refer to PROCEDURE - Step 39 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 39 [03/2024 - ]
  16. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Refer to PROCEDURE - Step 40 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 40 [03/2024 - ]

  17. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
    Refer to PROCEDURE - Step 41 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 41 [03/2024 - ]
  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    Refer to PROCEDURE - Step 42 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 42 [03/2024 - ]
  19. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY

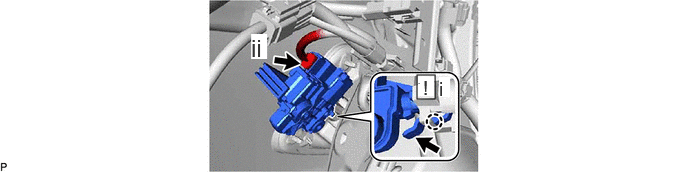

    1. GTY1052745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Release the stopper and disengage the claw.
      2. Disconnect the connector to remove the fuel lid lock with motor assembly.
