Removal [12/2021 - ]: Procedure

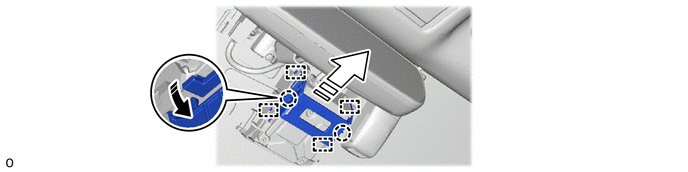

REMOVE NO. 2 FORWARD RECOGNITION COVER

NOTE:

If these claws are detached separately, they may break. Insert a moulding remover between them and pull it down to detach the claws simultaneously.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)		Remove in this Direction (2)
	Move in this Direction	-	-

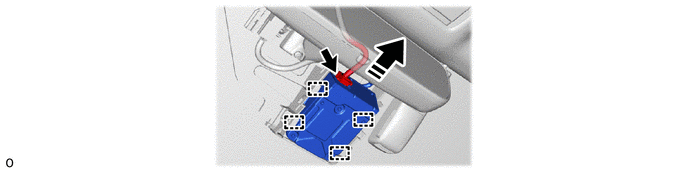

REMOVE NO. 1 FORWARD RECOGNITION COVER

NOTE:

To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Your Finger Here

Remove in this Direction

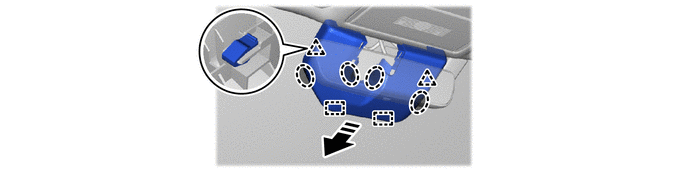

REMOVE FORWARD RECOGNITION LATCH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction (1)

Remove in this Direction (2)

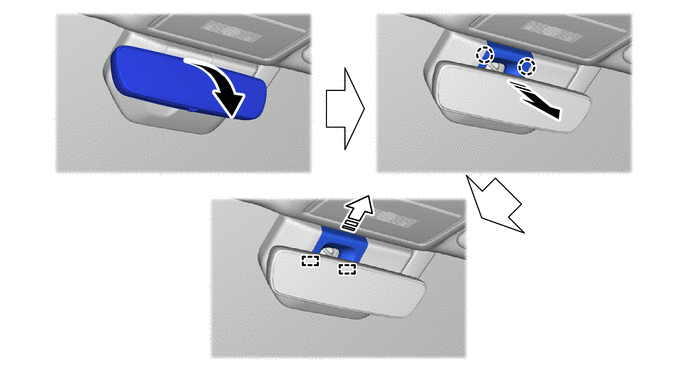

REMOVE FORWARD RECOGNITION CAMERA

NOTE:

Do not pull the harness forcibly when disconnecting the connector.
Do not touch the camera lens.
If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.

Remove in this Direction
