Removal [12/2021 - ]: Procedure

  1. REMOVE SPOT LIGHT ASSEMBLY

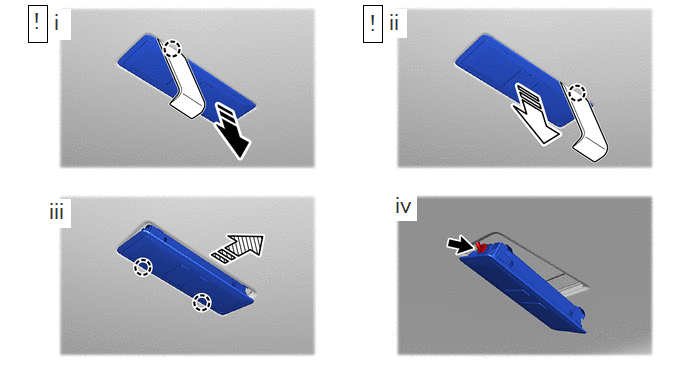

    1. GTY1072782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -
      1. Using a moulding remover D, detach the claw as shown in the illustration.
      2. Using a moulding remover D, detach the claw as shown in the illustration.
      3. Detach the claw as shown in the illustration.
      4. Disconnect the connector and remove the spot light assembly.
  2. REMOVE NO. 2 ROOM LIGHT ASSEMBLY

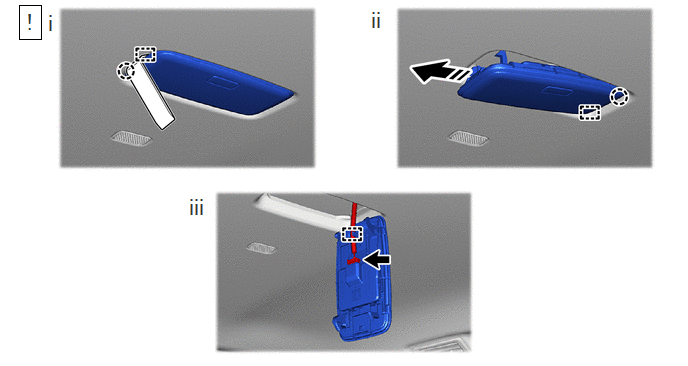

    1. GTY1072192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a moulding remover D, detach the claw and guide.
      2. Detach the claw and guide as shown in the illustration.
      3. Detach the clamp, disconnect the connector and remove the No. 2 room light assembly.
