Removal [12/2021 - ]: Procedure

  1. REMOVE REAR SEAT CONSOLE TABLE PLATE ASSEMBLY
    Refer to PROCEDURE - Step 3
  2. REMOVE REAR SEAT CONSOLE TABLE ASSEMBLY

    Refer to PROCEDURE - Step 6

  3. REMOVE REAR SEAT CONSOLE BOX COVER LH

    Refer to PROCEDURE - Step 8

  4. REMOVE REAR SEAT CONSOLE BOX COVER RH

    Refer to PROCEDURE - Step 9

  5. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

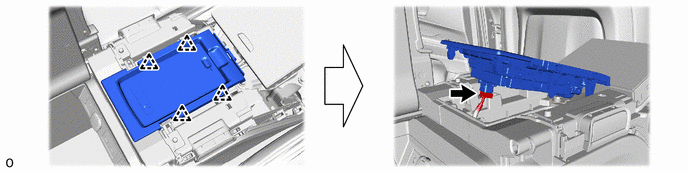

    1. GTY1054991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
