Removal [12/2021 - ]: Procedure

  1. REMOVE REAR SEAT CONSOLE TABLE PLATE ASSEMBLY
    Refer to PROCEDURE - Step 3

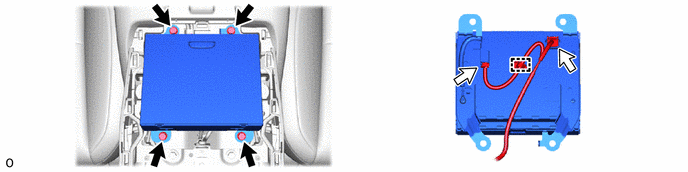

  2. REMOVE COOLER CONTROL SWITCH ASSEMBLY
    1. GTY1057484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Connector
