Disassembly [12/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2021 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [12/2021 - ]

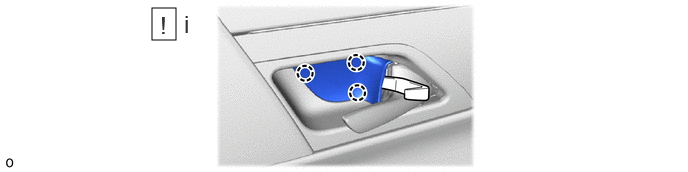

  3. REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL
    1. GTY1056442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the claws to remove the No. 2 door inside handle bezel.

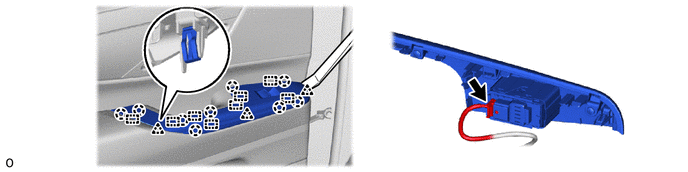

  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
    1. GTY1057027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the clips, claws and guides as shown in the illustration.
      2. Disconnect connector to remove the rear power window regulator switch assembly with rear door upper armrest base panel.
  5. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1

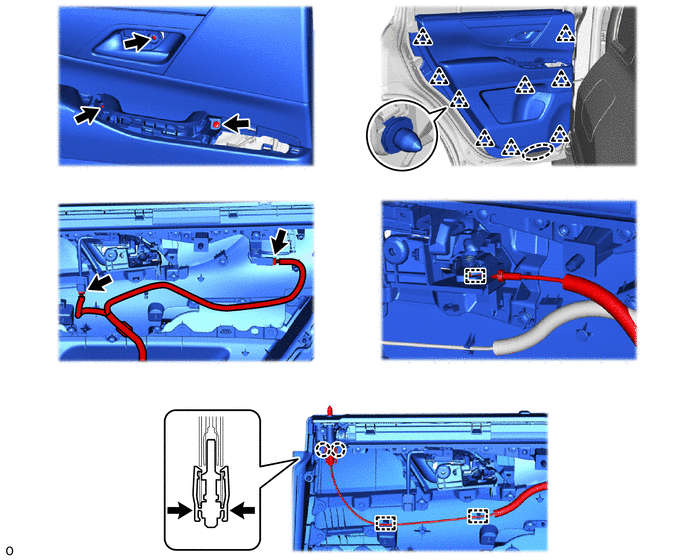

  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
    1. GTY1056413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here - -

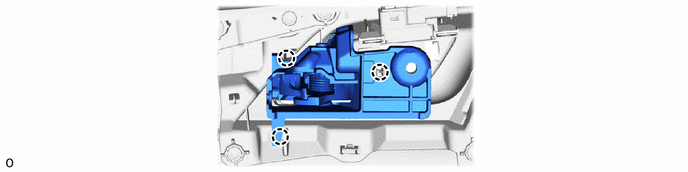

  7. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY
    1. GTY1055707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR DOOR LOCK CONTROL KNOB HOLDER (w/o Sunshade)

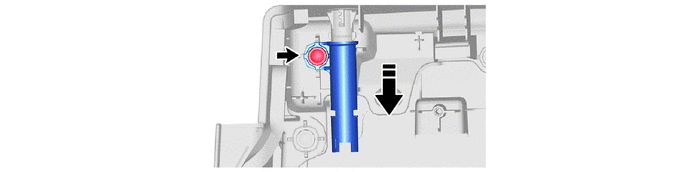

    1. GTY1058580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  9. INSTALL DOOR LOCK CONTROL KNOB BEZEL (w/o Sunshade)
    1. GTY1058789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  10. REMOVE REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 5
  11. REMOVE REAR CURTAIN SUB-ASSEMBLY (w/ Sunshade)

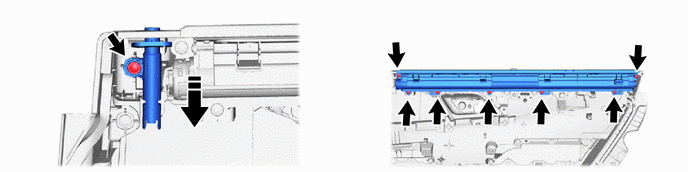

    1. GTY1056993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  12. REMOVE REAR DOOR UPPER TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7

  13. REMOVE REAR DOOR TRIM BASE SUB-ASSEMBLY LH WITH DOOR INSIDE HANDLE SEAL
    Refer to PROCEDURE - Step 8
  14. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 25 Speakers)
    Refer to PROCEDURE - Step 5
  15. REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 9

  16. REMOVE REAR DOOR TRIM ORNAMENT SUB-ASSEMBLY
    1. GTY1055688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

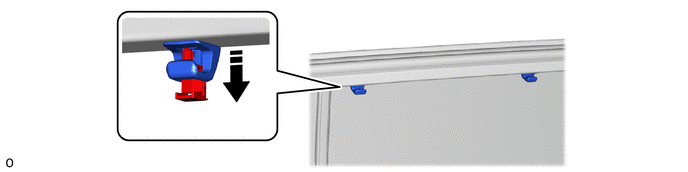

  17. REMOVE SUNSHADE HOOK (w/ Sunshade)
    1. GTY1056928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  18. REMOVE REAR DOOR FRAME GARNISH

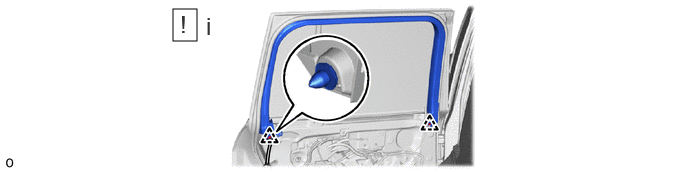

    1. GTY1056064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a clip remover with its tip wrapped in protective tape, disengage the clips and remove the rear door frame garnish.

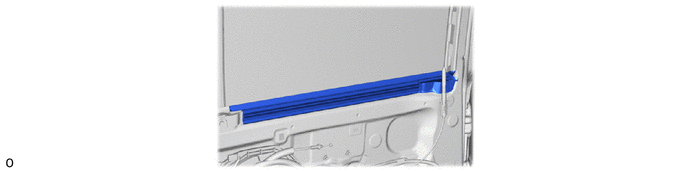

  19. REMOVE REAR DOOR GLASS INNER WEATHERSTRIP
    1. GTY1055686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR DOOR FRONT BELT SEAL
    1. GTY1055705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR DOOR REAR BELT SEAL

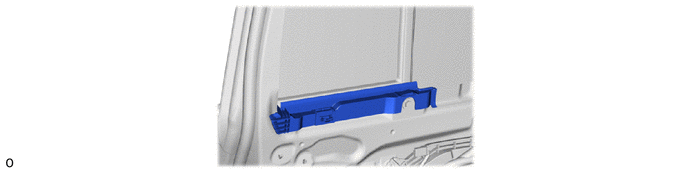

    1. GTY1055704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

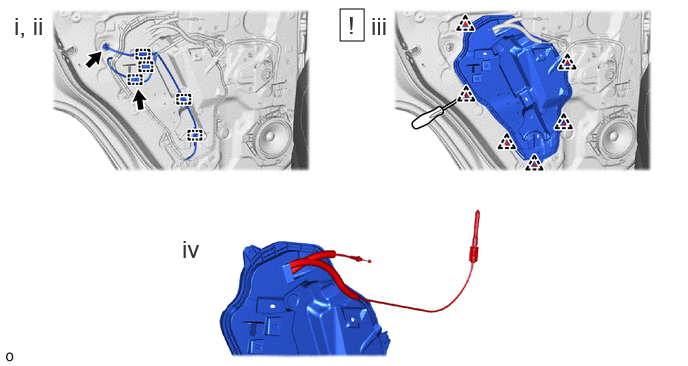

  22. REMOVE REAR DOOR SERVICE HOLE COVER
    1. GTY1056378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors.
      2. Disengage the clamps.
      3. Using a clip remover with its tip wrapped in protective tape, disengage the clips and remove the rear door service hole cover.
      4. Pull out the rear door lock remote control cable assembly and rear door inside locking cable assembly from the rear door service hole cover as shown in the illustration.

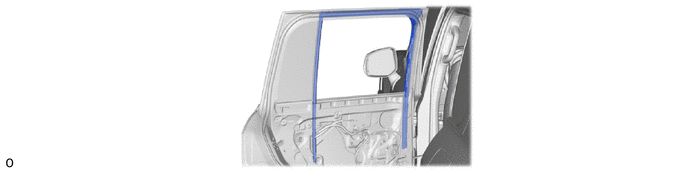

  23. REMOVE REAR DOOR GLASS RUN
    1. GTY1055664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

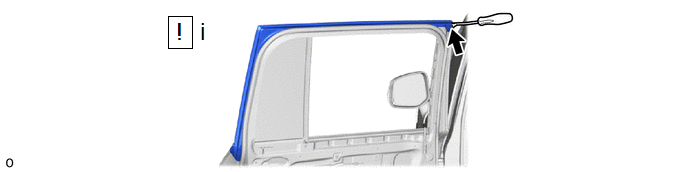

  24. REMOVE NO. 2 REAR DOOR WEATHERSTRIP
    1. GTY1056106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a clip remover with its tip wrapped in protective tape, disengage the clip and remove the No. 2 rear door weatherstrip.
  25. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

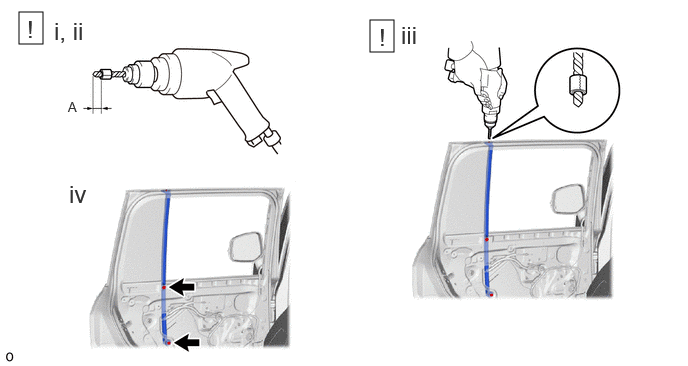

    1. GTY1056684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Insert a 4.0 mm (0.157 in.) drill bit into a drill.
      2. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

        Standard Measurement

        Area Measurement Area Measurement
        A 5.0 mm (0.197 in.) - -
        NOTE:

        Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

      3. Lightly press the drill against the rivet to drill off the rivet flange, and remove the rivet.
        WARNING:

        Be careful of the drilled rivet, as they may be hot.

        NOTE:
        • Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
        • Prying the rivet with the rivet with the may damage the rivet installation hole or drill bit.
      4. Remove the 2 bolts and remove the rear door window division bar sub-assembly.

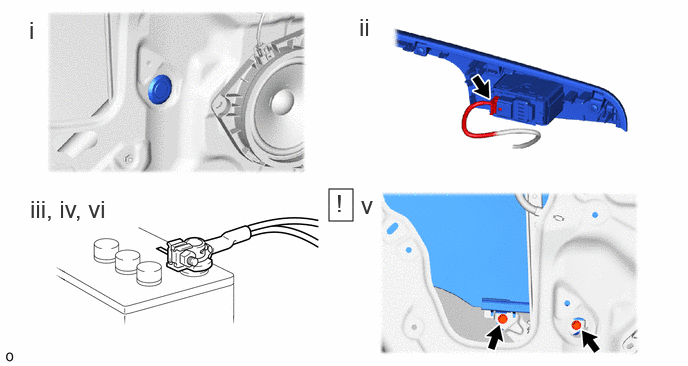

  26. REMOVE REAR DOOR GLASS SUB-ASSEMBLY
    1. GTY1056138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the hole plug.
      2. Connect the connector to the power window regulator switch assembly with rear door armrest base panel.
      3. Connect the cable to the negative (-) auxiliary battery terminal.

        Refer to INSTALLATION [12/2021 - ]

      4. Turn the ignition switch to ON.
      5. Move the rear door glass sub-assembly until the bolts appear in the service holes.
      6. Turn the ignition switch off.

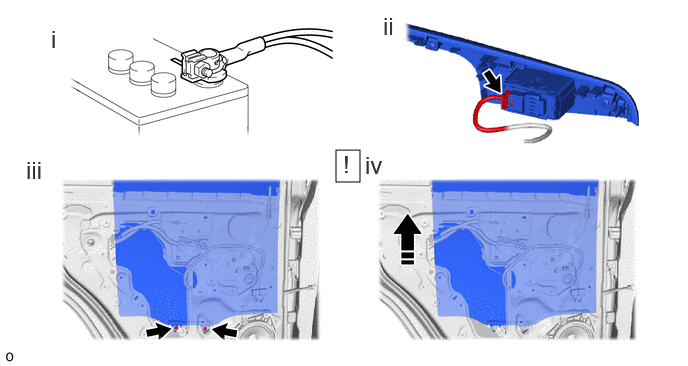

    2. GTY1056178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disconnect the cable from the negative (-) auxiliary battery terminal.

        Refer to REMOVAL [12/2021 - ]

      2. Disconnect the connector from the power window regulator switch assembly with rear door armrest base panel.
      3. Remove the 2 bolts.
      4. Remove the rear door glass sub-assembly as shown in the illustration.
        NOTE:

        Do not damage the rear door glass sub-assembly.

  27. REMOVE REAR DOOR QUARTER WINDOW GLASS
    1. GTY1056150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  28. REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP
    1. GTY1055794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR MULTIPLEX NETWORK DOOR COMPUTER (w/ Easy Closer)

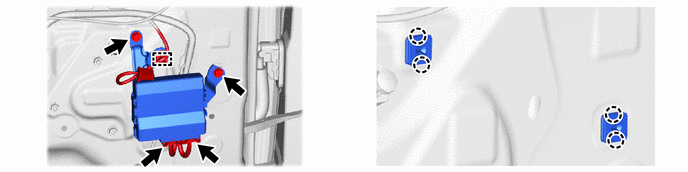

    1. GTY1055811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

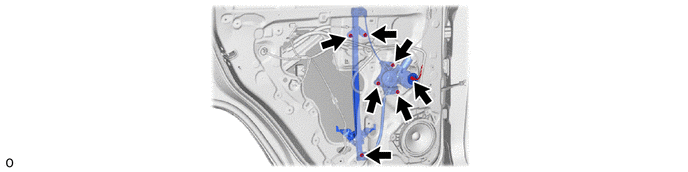

  30. REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY
    1. GTY1055810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR SPEAKER ASSEMBLY (for 10 Speakers)
    Refer to PROCEDURE - Step 6
  32. REMOVE DOOR LOCK COVER SET

    Refer to PROCEDURE - Step 14

  33. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY (w/ Easy Closer)
    Refer to PROCEDURE - Step 17
  34. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY (w/o Easy Closer)
    Refer to PROCEDURE - Step 18

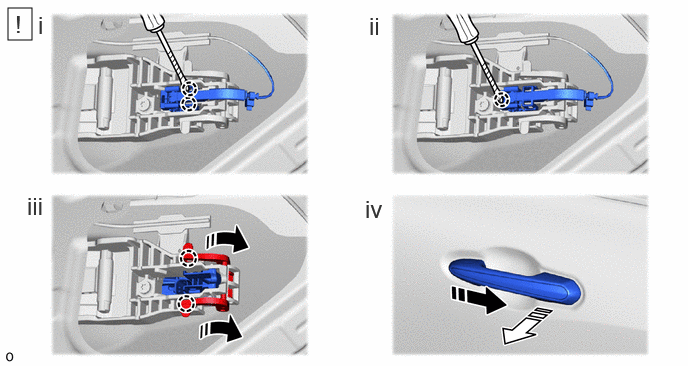

  35. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY
    1. GTY1056619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws.
      2. Using a screwdriver with its tip wrapped in protective tape, disconnect the connector.
      3. Disengage the claws and move the lever as shown in the illustration.
      4. Remove the rear door outside handle assembly as shown in the illustration.

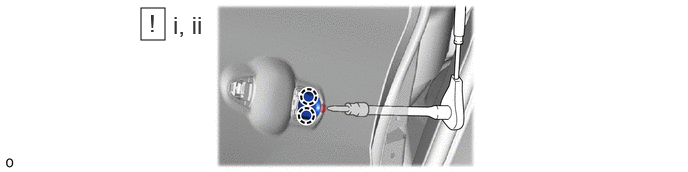

  36. REMOVE REAR DOOR OUTSIDE HANDLE COVER
    1. GTY1056243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, loosen the TORX screw.

        HINT:

        The screw cannot be removed because it is integrated into the rear door outside handle frame sub-assembly.

      2. Disengage the 2 claws to remove the rear door outside handle cover.

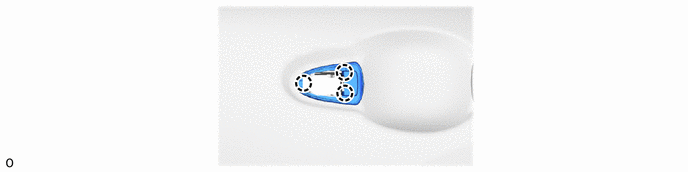

  37. REMOVE REAR DOOR OUTSIDE HANDLE FRONT PAD
    1. GTY1055772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

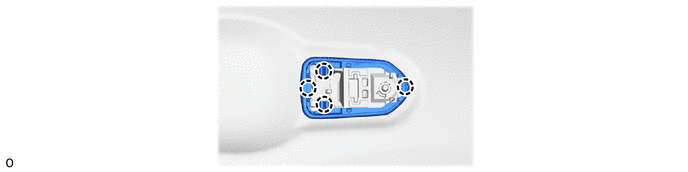

  38. REMOVE REAR DOOR OUTSIDE HANDLE REAR PAD
    1. GTY1055790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

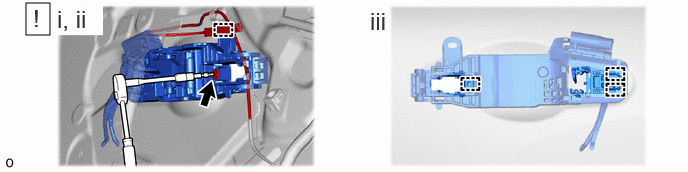

    1. GTY1056643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the clamp.
      2. Using a T30 "TORX" socket wrench, loosen the screw.

        HINT:

        The screw cannot be removed because it is integrated into the rear door outside handle frame sub-assembly.

      3. Disengage the guides to remove the rear door outside handle frame sub-assembly as shown in the illustration.

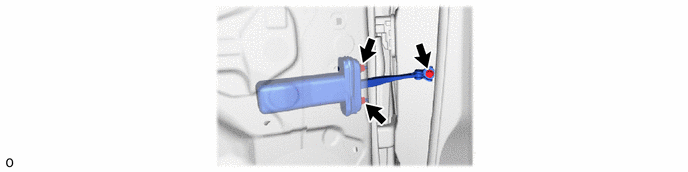

  40. REMOVE REAR DOOR CHECK ASSEMBLY
    1. GTY1055789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

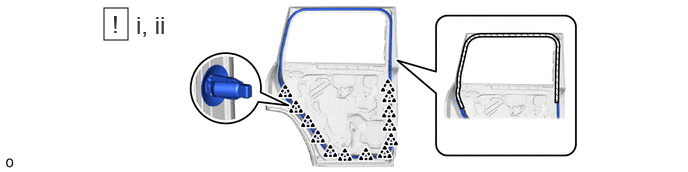

  41. REMOVE REAR DOOR WEATHERSTRIP
    1. GTY1056700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the clips.
      2. Remove the double-sided tape with rear door weatherstrip from rear door panel.
        NOTE:

        Remove any remaining double-sided tape from the rear door panel.

  42. REMOVE REAR DOOR BELT MOULDING ASSEMBLY
    Refer to PROCEDURE - Step 16

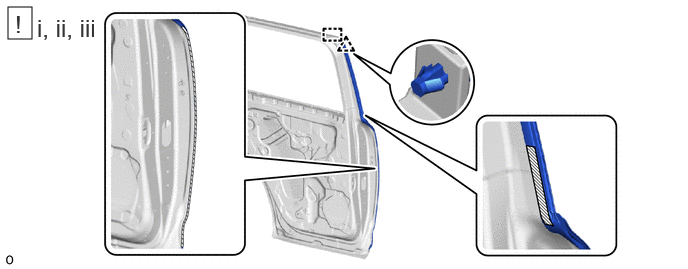

  43. REMOVE REAR NO. 4 DOOR WEATHERSTRIP
    1. GTY1056396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the clip.
      2. Disengage the guide to remove the rear door No. 4 weatherstrip.
      3. Remove the double-sided tape with rear door No. 4 weatherstrip from rear door panel.
        NOTE:

        Remove any remaining double-sided tape from the rear door panel.

  44. REMOVE REAR DOOR REAR WINDOW FRAME MOULDING
    Refer to PROCEDURE - Step 4
  45. REMOVE REAR DOOR FRONT WINDOW FRAME MOULDING
    Refer to PROCEDURE - Step 3
  46. REMOVE REAR DOOR UPPER WINDOW FRAME MOULDING
    Refer to PROCEDURE - Step 5

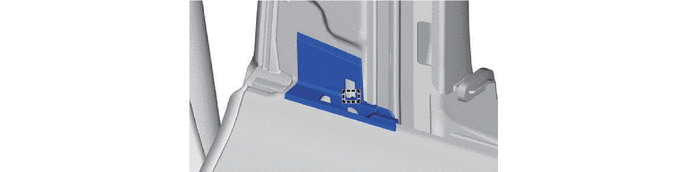

  47. REMOVE REAR DOOR FRONT OUTSIDE SEAL
    1. GTY1059371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY
    Refer to PROCEDURE - Step 3
  49. REMOVE REAR DOOR NO. 1 STIFFENER CUSHION

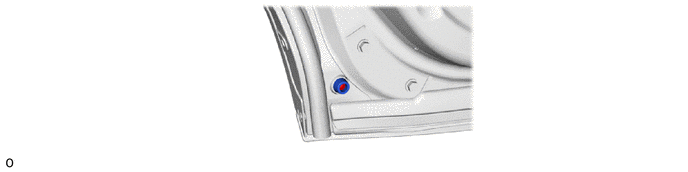

    1. GTY1055770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

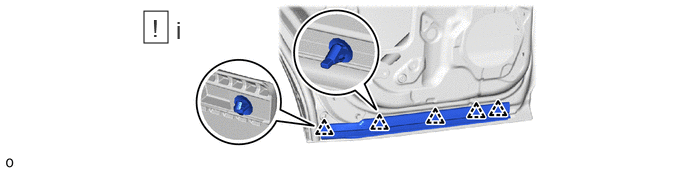

  50. REMOVE REAR DOOR REAR OPENING TRIM WEATHERSTRIP
    1. GTY1056728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws and remove the rear door rear opening trim weatherstrip.

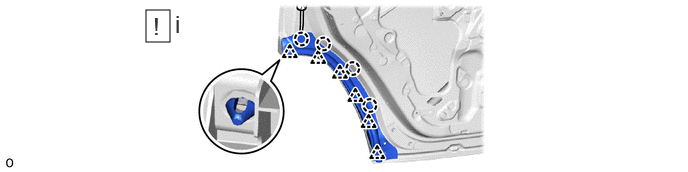

  51. REMOVE REAR DOOR PANEL PROTECTOR
    1. GTY1056694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws and remove the rear door panel protector.

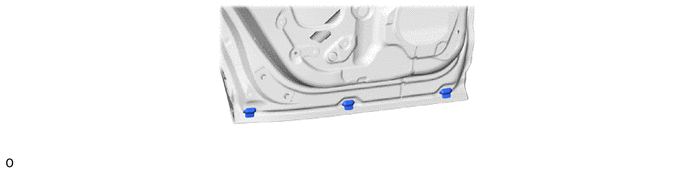

  52. REMOVE REAR DOOR DUST PROOF SEAL
    1. GTY1056819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

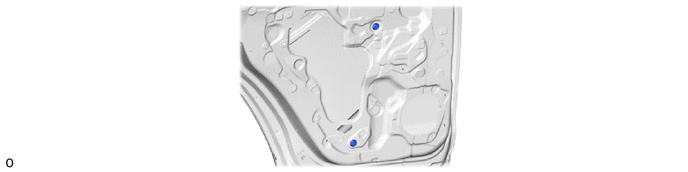

  53. REMOVE HOLE PLUG
    1. GTY1056813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
