Removal [12/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2021 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [12/2021 - ]

  3. REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL
    Refer to PROCEDURE - Step 3
  4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
    Refer to PROCEDURE - Step 4
  5. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 5
  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE SUNSHADE HOOK (w/ Sunshade)

    Refer to PROCEDURE - Step 17

  8. REMOVE REAR DOOR FRAME GARNISH
    Refer to PROCEDURE - Step 18
  9. REMOVE REAR DOOR GLASS INNER WEATHERSTRIP

    Refer to PROCEDURE - Step 19

  10. REMOVE REAR DOOR REAR BELT SEAL

    Refer to PROCEDURE - Step 21

  11. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 22

  12. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 23

  13. REMOVE NO. 2 REAR DOOR WEATHERSTRIP
    Refer to PROCEDURE - Step 24
  14. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
    Refer to PROCEDURE - Step 25
  15. REMOVE REAR DOOR GLASS SUB-ASSEMBLY
    Refer to PROCEDURE - Step 26

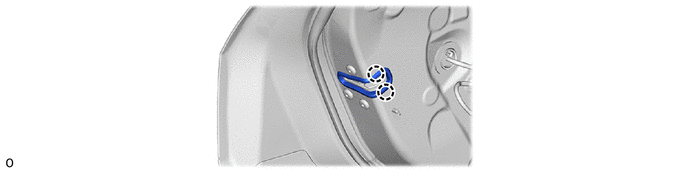

  16. REMOVE DOOR LOCK COVER SET
    1. GTY1056917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

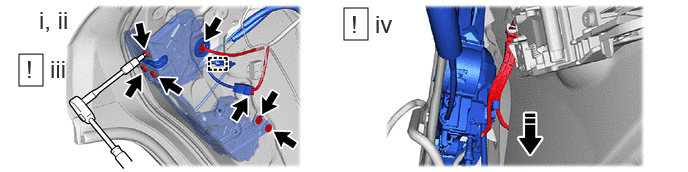

  17. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY (w/ Easy Closer)
    1. GTY1055579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disconnect the connectors and disengage the clamps.
      2. Remove the 2 bolts.
      3. Using a T30 "TORX" socket wrench, remove the 3 screws and rear door lock with motor assembly.
      4. Remove the rear door lock with motor assembly as shown in the illustration.

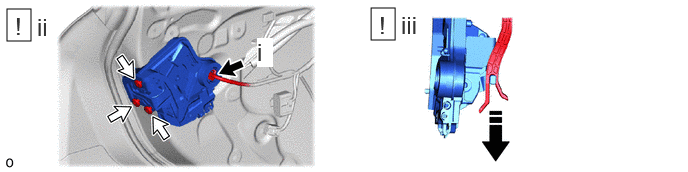

  18. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY (w/o Easy Closer)
    1. GTY1056745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disconnect the connector.
      2. Using a T30 "TORX" socket wrench, remove the 3 screws.
      3. Remove the rear door lock with motor assembly as shown in the illustration.

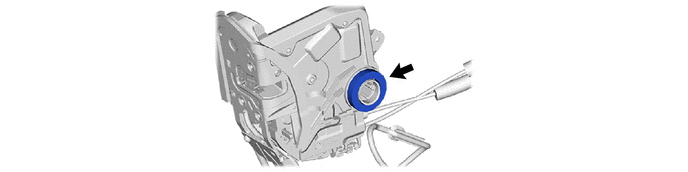

  19. REMOVE DOOR LOCK WIRING HARNESS SEAL (w/ Easy Closer)
    NOTE:

    When reusing a removed rear door lock with motor assembly, replace the door lock wiring harness seal with a new one.
    1. GTY1056275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE DOOR LOCK WIRING HARNESS SEAL (w/o Easy Closer)
    NOTE:

    When reusing a removed rear door lock with motor assembly, replace the door lock wiring harness seal with a new one.
    1. GTY1058730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY (w/ Easy Closer)

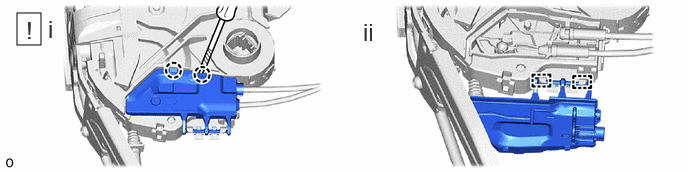

    1. GTY1056507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
      2. Disengage the claws to remove the rear door lock cover sub-assembly.

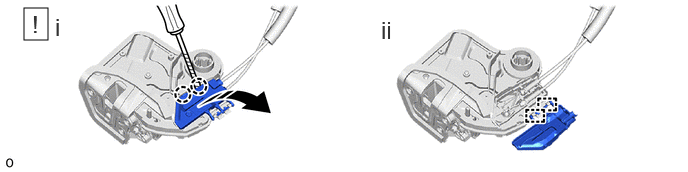

  22. REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY (w/o Easy Closer)
    1. GTY1058669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
      2. Disengage the claws to remove the rear door lock cover sub-assembly.

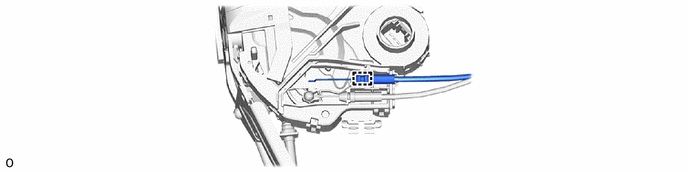

  23. REMOVE REAR DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE (w/ Easy Closer)
    1. GTY1056259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

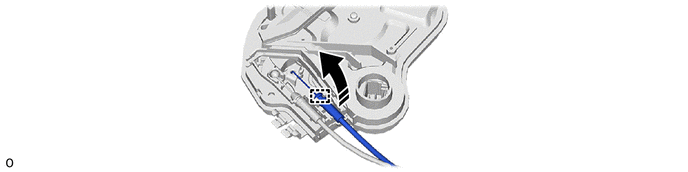

  24. REMOVE REAR DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE (w/o Easy Closer)
    1. GTY1058491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

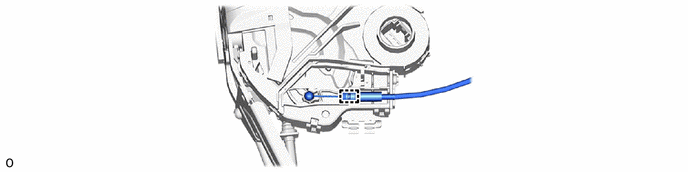

  25. REMOVE REAR DOOR LOCK AND UNLOCK KNOB INSIDE LOCKING CABLE (w/ Easy Closer)
    1. GTY1056911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR DOOR LOCK AND UNLOCK KNOB INSIDE LOCKING CABLE (w/o Easy Closer)

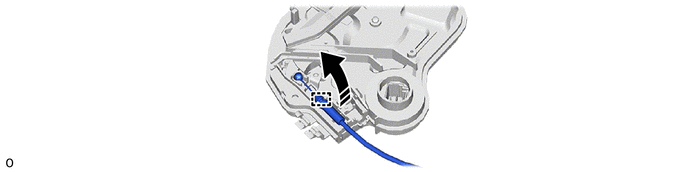

    1. GTY1058955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
