Removal [12/2021 - ]: Procedure

  1. REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL LH
    Refer to PROCEDURE - Step 3
  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
    Refer to PROCEDURE - Step 4
  3. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  5. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 25 Speakers)
    NOTE:

    Do not touch the cone of the rear No. 2 speaker assembly.

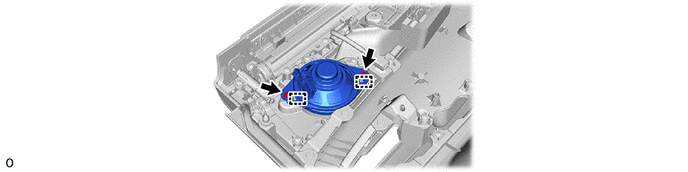

    1. GTY1071193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SPEAKER ASSEMBLY (for 10 Speakers)
    NOTE:

    Do not touch the cone of the rear speaker assembly.

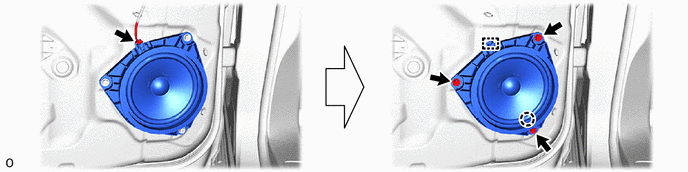

    1. GTY1071190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
