Disassembly [10/2016 - 09/2020]: Procedure

  1. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Refer to PROCEDURE - Step 2

  3. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE HEADLIGHT WASHER COVER LH (w/ Headlight Cleaner System)

    Refer to PROCEDURE - Step 4

  5. REMOVE HEADLIGHT WASHER COVER RH (w/ Headlight Cleaner System)

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)
    1. Disengage the 14 clamps to remove the headlight cleaner hose.
      GTY674135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CONNECTOR BRACKET (w/o Intuitive Parking Assist System)
    1. Disengage the clamp to remove the connector bracket.
      GTY674840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  9. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  10. REMOVE NO. 2 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4

  11. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)
    1. Disengage the 11 clamps to remove the No. 4 engine room wire.
      GTY615094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Remove the 2 screws.
      GTY619972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and 2 guides to remove the front bumper extension mounting bracket.
      GTY619973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CLEARANCE LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  14. REMOVE CLEARANCE LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE FRONT BUMPER SIDE BRACKET LH
    1. Remove the 2 screws.
      GTY623114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.
    3. Disengage the claw and guide to remove the front bumper side bracket LH.
      GTY619981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT BUMPER SIDE BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE NO. 2 COOL AIR INTAKE DUCT
    1. Remove the 2 screws.
      GTY619980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and No. 2 cool air intake duct.
  18. REMOVE NO. 1 COOL AIR INTAKE DUCT

    HINT:

    Use the same procedure as for the No. 2 cool air intake duct.

  19. REMOVE FRONT FENDER LINER RETAINER
    1. Disengage the claw to remove the front fender liner retainer as shown in the illustration.

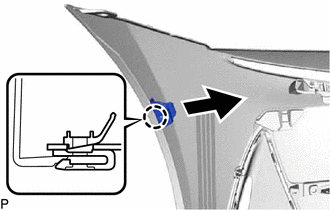

      GTY619974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  20. REMOVE LOWER RADIATOR GRILLE LH
    1. Disengage the 5 claws to remove the lower radiator grille LH.
      GTY619975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE LOWER RADIATOR GRILLE RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE NO. 1 MOULDING TAPE (for Type A)
    1. Remove the No. 1 moulding tape.

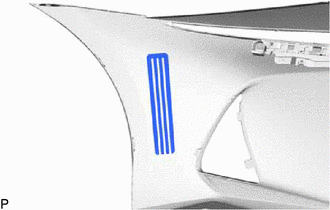

      GTY619991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  23. REMOVE NO. 1 MOULDING TAPE (for Type B)
    1. Remove the No. 1 moulding tape.

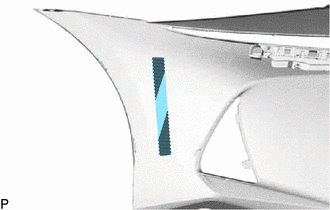

      GTY780666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  24. REMOVE NO. 2 FRONT BUMPER RETAINER BRACKET
    1. Remove the 2 screws.
      GTY674138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the No. 2 front bumper retainer bracket as shown in the illustration.

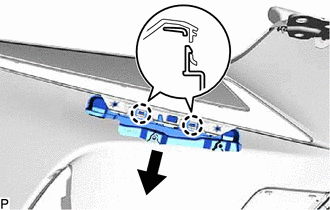

      GTY619994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE NO. 1 FRONT BUMPER RETAINER BRACKET

    HINT:

    Use the same procedure as for the No. 2 front bumper retainer bracket.

  26. REMOVE LOWER FRONT BUMPER COVER
    1. Disengage the 4 claws.

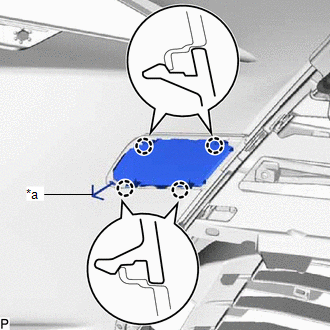

      GTY638959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
    2. Disengage the hook to remove the lower front bumper cover.
  27. REMOVE FRONT ENERGY ABSORBER MOUNTING PLATE
    1. Remove the 4 screws.

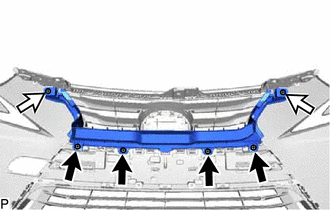

      GTY669908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
    2. Remove the 2 clips.
    3. Disengage the 3 claws to remove the front energy absorber mounting plate as shown in the illustration.

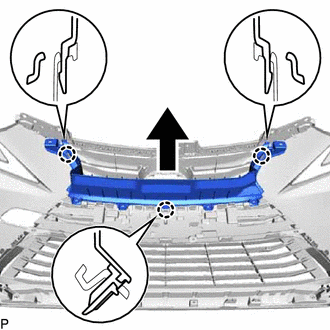

      GTY619983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE RADIATOR GRILLE PROTECTOR
    1. Disengage the 7 clips and remove the radiator grille protector.
      GTY674136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE NO. 1 FRONT BUMPER BRACKET LH
    1. Remove the clip.
      GTY674140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the No. 1 front bumper bracket LH.
      GTY620004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE NO. 1 FRONT BUMPER BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  31. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
    1. Remove the 2 screws.
      GTY620001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and pin to remove the radiator grille (or front panel) emblem.
      GTY615071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE RADIATOR GRILLE ASSEMBLY
    1. Remove the 12 screws.
      GTY623116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 12 claws and 8 guides to remove the radiator grille assembly.
      GTY623117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE RADIATOR GRILLE BRACKET
    1. Remove the clip.
      GTY615065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 guides to remove the radiator grille bracket.
      GTY674844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE RADIATOR GRILLE MOULDING
    1. Disengage the 17 claws to remove the radiator grille moulding.
      GTY623174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE LOWER RADIATOR GRILLE MOULDING
    1. Disengage the 7 claws to remove the lower radiator grille moulding.
      GTY623176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE INSIDE RADIATOR GRILLE
    1. Disengage the 6 claws to remove the inside radiator grille.
      GTY615084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE NO. 1 RADIATOR GRILLE MOULDING
    1. Remove the 2 screws.
      GTY673056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws to remove the No. 1 radiator grille moulding.
      GTY615079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE NO. 2 RADIATOR GRILLE MOULDING
    1. Remove the 2 screws.
      GTY615081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws to remove the No. 2 radiator grille moulding.
      GTY673057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE NO. 3 RADIATOR GRILLE MOULDING
    1. Remove the 2 screws.
      GTY615091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 claws to remove the No. 3 radiator grille moulding.
      GTY615093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE FRONT BUMPER ENERGY ABSORBER
    GTY615133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 2 guides to remove the front bumper energy absorber.
  41. REMOVE FRONT BUMPER REINFORCEMENT
    1. Remove the 14 bolts and front bumper reinforcement.
      GTY615134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE FRONT BUMPER SIDE RETAINER LH
    1. Remove the bolt.
      GTY673070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to remove the front bumper side retainer LH.
  43. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.
