Removal [10/2016 - 09/2020]: Procedure

for Standard:

Refer to REMOVAL [10/2016 - 09/2020]

for Sport Package:

Refer to REMOVAL [10/2016 - 09/2020]

1. Disengage the claw and disconnect the headlight cleaner hose as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Push

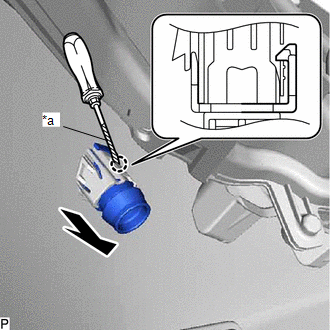

2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the headlight washer actuator sub-assembly LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

HINT:

Use the same procedure as for the LH side.

1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the headlight washer cover LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

HINT:

Use the same procedure as for the LH side.
