Removal [10/2016 - 09/2020]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    for Standard: Refer to REMOVAL [10/2016 - 09/2020]

    for Sport Package: Refer to REMOVAL [10/2016 - 09/2020]

  2. REMOVE NO. 1 ULTRASONIC SENSOR

    HINT:

    Use the same procedure for all No. 1 ultrasonic sensors.

    1. Disconnect the connector.

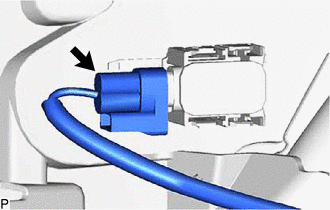

      GTY639379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the No. 1 ultrasonic sensor.

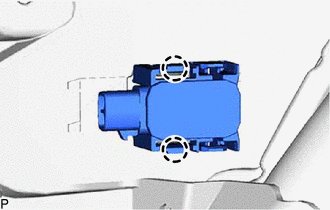

      GTY678421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER

    HINT:

    • Perform this procedure only when replacement of the No. 1 ultrasonic sensor retainer is necessary.
    • Use the same procedure for all No. 1 ultrasonic sensor retainers.
    1. Remove the No. 1 ultrasonic sensor retainer.

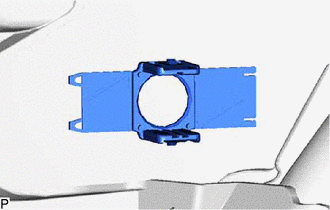

      GTY678424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 ULTRASONIC SENSOR

    HINT:

    Use the same procedure for all No. 2 ultrasonic sensors.

    1. Disconnect the connector.

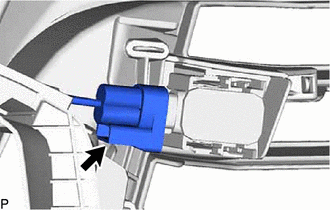

      GTY639394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the No. 2 ultrasonic sensor.

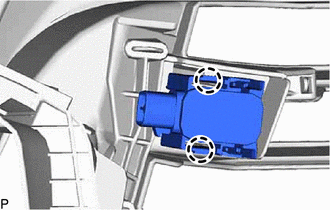

      GTY639395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
