Removal [10/2016 - 09/2020]: Procedure

for Standard: Refer to REMOVAL [10/2016 - 09/2020]

for Sport Package: Refer to REMOVAL [10/2016 - 09/2020]

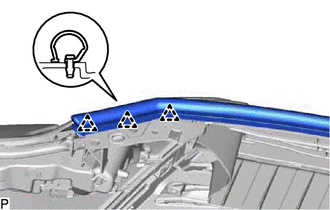

1. Disengage the 3 clips to separate the radiator grille protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

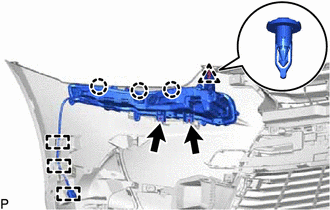

2. Disengage the 3 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the 2 screws and clip.
4. Disengage the 3 claws to remove the clearance light assembly.
