Removal [09/2014 - ]: Procedure
- PRECAUTION WARNING:
Be sure to read Precaution thoroughly before servicing.
Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - 01/2023] , or refer to PRECAUTION [01/2023 - ]
NOTE:After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [09/2014 - 11/2017] , or refer to PRECAUTION [11/2017 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [09/2014 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019] , or refer to INITIALIZATION [03/2019 - 01/2023] , or refer to INITIALIZATION [01/2023 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure for the RH side and LH side.
Refer to PROCEDURE - Step 3 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 3 [11/2017 - ]
- REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT:
Use the same procedure for the RH side and LH side.
Refer to PROCEDURE - Step 4 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 4 [11/2017 - ]
- REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 22 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 22 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 22 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 22 [09/2020 - 01/2023] , or refer to PROCEDURE - Step 21 [01/2023 - ]
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 23 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 23 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 23 [09/2020 - 01/2023] , or refer to PROCEDURE - Step 22 [01/2023 - ]
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY WARNING:
When storing the lower No. 2 instrument panel airbag assembly, keep the airbag deployment side facing upward.
- Check that the engine switch is off.
- Check that the cable is disconnected from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

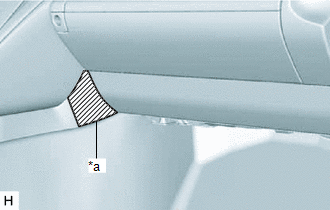

- Apply protective tape to the area shown in the illustration.

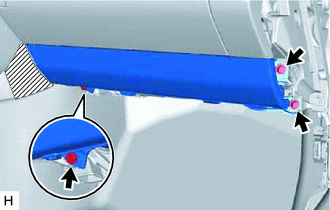

*a Protective Tape - Remove the 3 bolts.

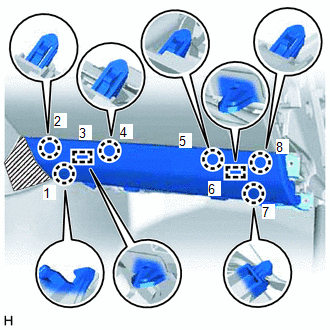

- Disengage the 6 claws and 2 guides in the order shown in the illustration to separate the lower No. 2 instrument panel airbag assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:When separating the lower No. 2 instrument panel airbag assembly, do not pull the airbag wire harness.

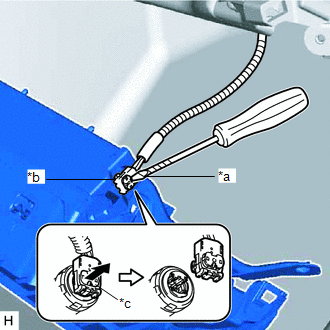

- Using a screwdriver with its tip wrapped with protective tape, release the airbag connector lock.
*a Protective Tape *b Airbag Connector *c Airbag Connector Lock - Disconnect the airbag connector to remove the lower No. 2 instrument panel airbag assembly.NOTE:
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
