Removal [11/2017 - ]: Procedure

PRECAUTION
NOTE:
- When replacing the radio receiver assembly or navigation ECU, always replace it with a new one. If a radio receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
  - A communication malfunction DTC may be stored.
  - The radio receiver assembly or navigation ECU may not operate normally.
- After replacing the navigation ECU, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the radio receiver assembly.
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 1 [03/2019 - ]
REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 2 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 2 [03/2019 - ]
REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 3 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 3 [03/2019 - ]
REMOVE FRONT PANEL GARNISH LH
Refer to PROCEDURE - Step 4 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 4 [03/2019 - ]
REMOVE FRONT PANEL GARNISH RH
Refer to PROCEDURE - Step 5 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 5 [03/2019 - ]
REMOVE CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 8 [03/2019 - ]
REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 8 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 8 [03/2019 - ]

REMOVE NO. 1 NAVIGATION WIRE

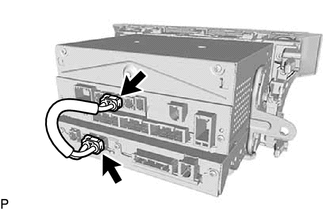

Disconnect the 2 connectors to remove the No. 1 navigation wire.

REMOVE NO. 1 RADIO BRACKET
Refer to PROCEDURE - Step 10 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - ]
REMOVE NO. 2 RADIO BRACKET
Refer to PROCEDURE - Step 11 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 11 [03/2019 - ]
REMOVE RADIO RECEIVER ASSEMBLY
REMOVE NAVIGATION ECU
