Removal [09/2014 - 03/2019]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Disengage the claw and disconnect the shift hole cover sub-assembly as shown in the illustration.
      GTY516953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the shift lever knob sub-assembly counterclockwise and remove it.
      GTY516949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

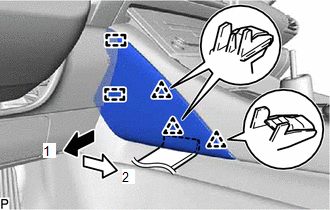

    1. Using a moulding remover, disengage the 3 clips in the direction indicated by the arrow (1) in the illustration.
      GTY496238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the instrument panel finish panel end LH in the direction indicated by the arrow (2) in the illustration to disengage the 2 guides and remove the instrument panel finish panel end LH.
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

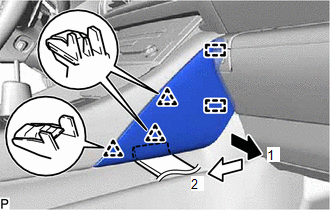

    1. Using a moulding remover, disengage the 3 clips in the direction indicated by the arrow (1) in the illustration.
      GTY520260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the instrument panel finish panel end RH in the direction indicated by the arrow (2) in the illustration to disengage the 2 guides and remove the instrument panel finish panel end RH.
  4. REMOVE FRONT PANEL GARNISH LH

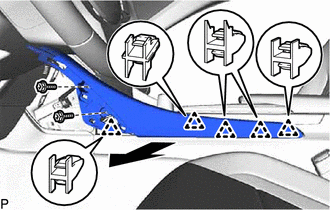

    1. Remove the 2 screws.
      GTY510238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips to remove the front panel garnish LH.
  5. REMOVE FRONT PANEL GARNISH RH

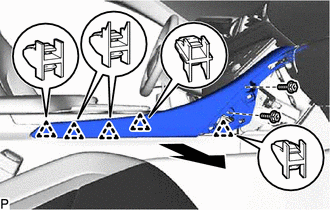

    1. Remove the 2 screws.
      GTY510236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips to remove the front panel garnish RH.
  6. REMOVE FRONT NO. 1 CONSOLE BOX INSERT
    1. Disengage the clip in the direction indicated by the arrow (1) in the illustration.
      GTY502284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front No. 1 console box insert in the direction indicated by the arrow (2) in the illustration to disengage the guide and remove the front No. 1 console box insert.
  7. REMOVE FRONT NO. 2 CONSOLE BOX INSERT
    1. Disengage the clip in the direction indicated by the arrow (1) in the illustration.
      GTY506776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front No. 2 console box insert in the direction indicated by the arrow (2) in the illustration to disengage the guide and remove the front No. 2 console box insert.
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY
    1. Remove the screw.
      GTY510234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to N.

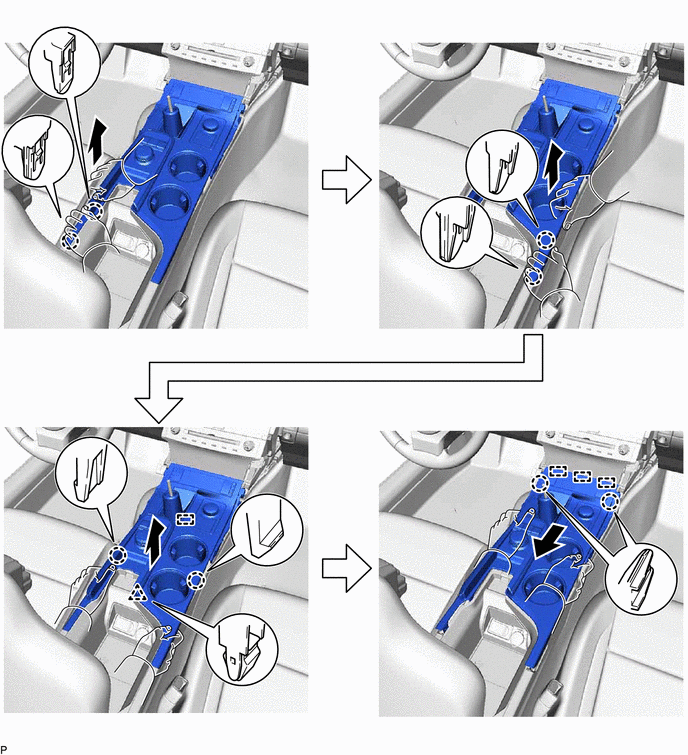

    3. Disengage the 8 claws, clip and 4 guides as shown in the illustration.
      GTY500158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector to remove the console panel sub-assembly.
  9. REMOVE NO. 2 CONSOLE BOX SILENCER PAD

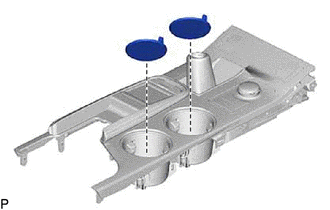

    1. Remove the 2 No. 2 console box silencer pads.
      GTY510232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY
    1. Disengage the clamp.

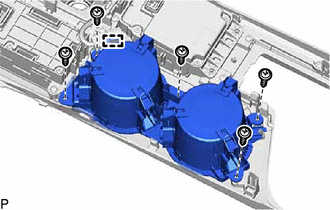

      GTY510251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 5 screws and remove the instrument panel cup holder assembly.
  11. REMOVE CONSOLE BOX REGISTER ASSEMBLY
    1. Using a moulding remover, disengage the 4 claws, 4 clips and guide and remove the console box register assembly as shown in the illustration.
      GTY520302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CONSOLE BOX ASSEMBLY

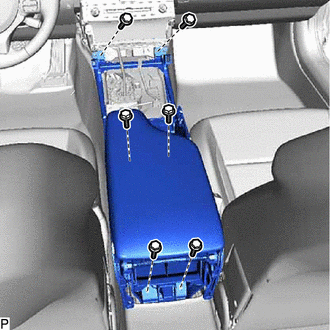

    1. Remove the 6 bolts.
      GTY510235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

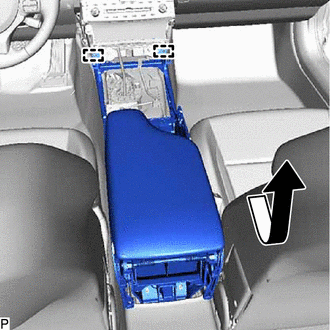

    2. Pull the rear part of the console box assembly as shown in the illustration to disengage the 2 guides and remove the console box assembly.
      GTY510243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector.
