Removal [11/2017 - 03/2019]: Procedure

1. w/o Navigation System:
   NOTE:

   • When replacing the radio receiver assembly, always replace it with a new one. If a radio receiver assembly which was installed to another vehicle is used, the following may occur:
     • A communication malfunction DTC may be stored.
     • The radio receiver assembly may not operate normally.
2. w/ Navigation System:
   NOTE:

   • When replacing the radio receiver assembly or navigation ECU, always replace it with a new one. If a radio receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
     • A communication malfunction DTC may be stored.
     • The radio receiver assembly or navigation ECU may not operate normally.
   • After replacing the radio receiver assembly, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the navigation ECU.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 8

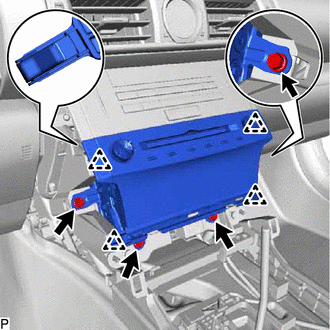

1. Remove the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Pull the radio receiver assembly with bracket toward the rear of the vehicle and disengage the 4 clips.
3. Disconnect each connector and remove the radio receiver assembly with bracket.

Refer to PROCEDURE - Step 9

1. w/o Navigation System:

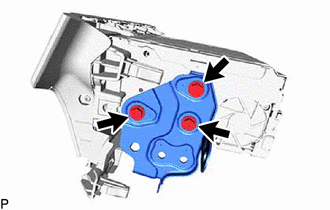

   1. Remove the 3 screws and No. 1 radio bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. w/ Navigation System:

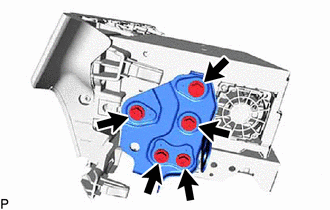

   1. Remove the 5 screws and No. 1 radio bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/o Navigation System:

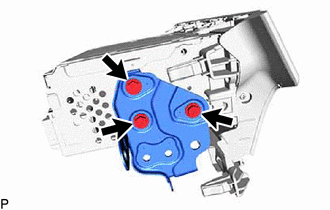

   1. Remove the 3 screws and No. 2 radio bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. w/ Navigation System:

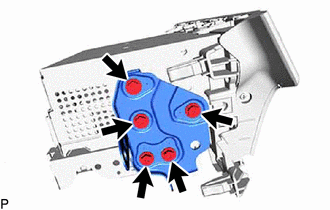

   1. Remove the 5 screws and No. 2 radio bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
