Removal [03/2019 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

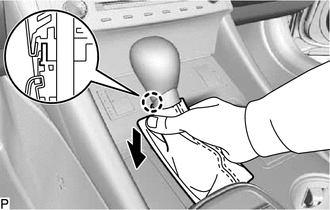

    1. Disengage the claw and disconnect the shift hole cover sub-assembly as shown in the illustration.
      GTY516953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the shift lever knob sub-assembly counterclockwise and remove it.

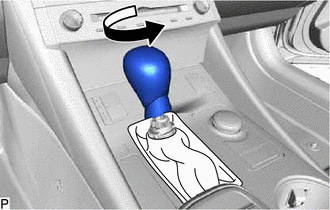

      GTY516949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
    1. Using a moulding remover, disengage the 3 clips in the direction indicated by the arrow (1) shown in the illustration.

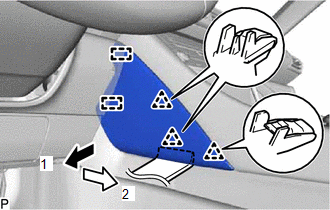

      GTY780427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the instrument panel finish panel end LH in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the instrument panel finish panel end LH.
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
    1. Using a moulding remover, disengage the 3 clips in the direction indicated by the arrow (1) shown in the illustration.

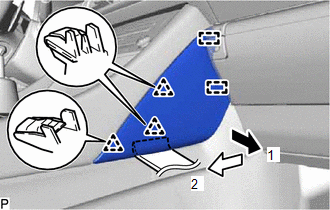

      GTY798276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the instrument panel finish panel end RH in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the instrument panel finish panel end RH.
  4. REMOVE FRONT PANEL GARNISH LH
    1. Remove the 2 screws.

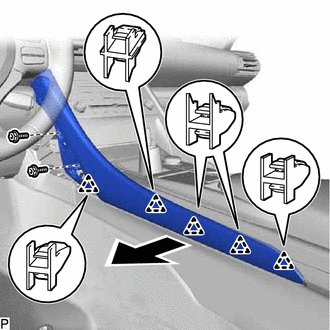

      GTY950261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips as shown in the illustration.
    3. Disengage the 3 claws in the direction indicated by the arrow (1) shown in the illustration.

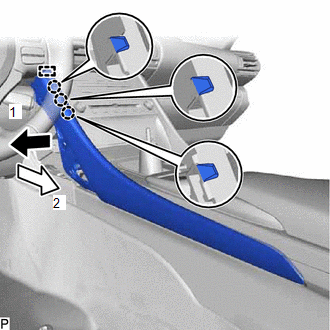

      GTY950950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Pull the front panel garnish LH in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove the front panel garnish LH.
  5. REMOVE FRONT PANEL GARNISH RH
    1. Remove the 2 screws.

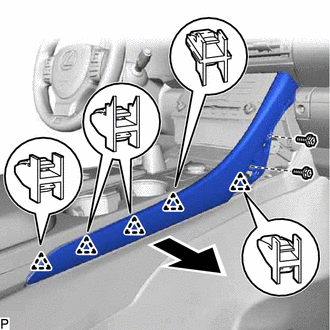

      GTY950265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips as shown in the illustration.
    3. Disengage the 3 claws in the direction indicated by the arrow (1) shown in the illustration.

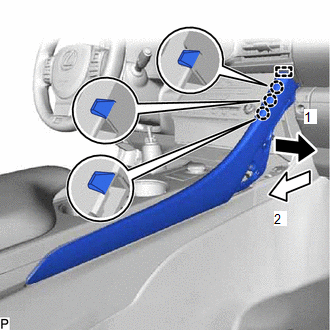

      GTY949979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Pull the front panel garnish RH in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove the front panel garnish RH.
  6. REMOVE FRONT NO. 1 CONSOLE BOX INSERT
    1. Disengage the clip in the direction indicated by the arrow (1) shown in the illustration.

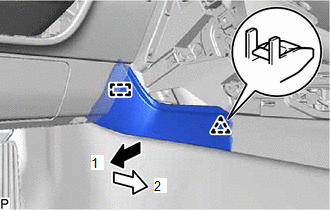

      GTY502284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front No. 1 console box insert in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove the front No. 1 console box insert.
  7. REMOVE FRONT NO. 2 CONSOLE BOX INSERT
    1. Disengage the clip in the direction indicated by the arrow (1) in the illustration.

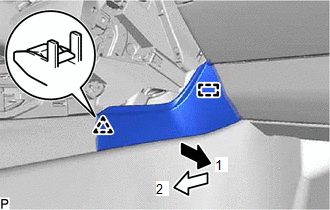

      GTY506776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front No. 2 console box insert in the direction indicated by the arrow (2) in the illustration to disengage the guide and remove the front No. 2 console box insert.
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY
    1. Remove the screw.

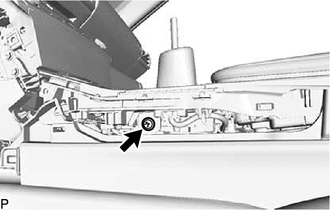

      GTY510234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to N.
    3. Disengage the 8 claws, clip and 4 guides as shown in the illustration.

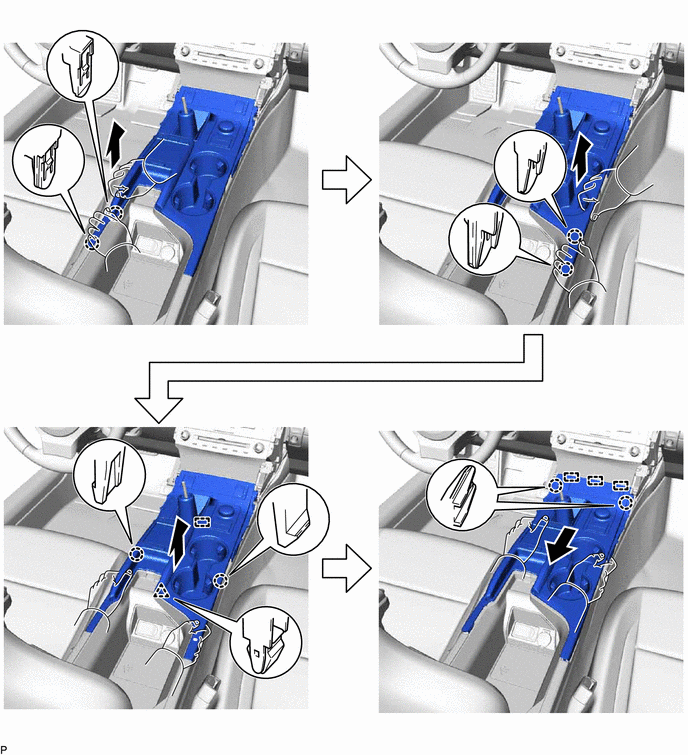

      GTY801087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector to remove the console panel sub-assembly.
  9. REMOVE NO. 2 CONSOLE BOX SILENCER PAD
    1. Remove the No. 2 console box silencer pads.
      GTY801088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY
    1. Disengage the clamp.
      GTY832947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws.
    3. Disengage the 2 claws to remove the instrument panel cup holder assembly.

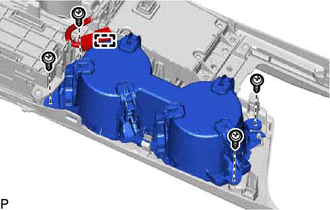

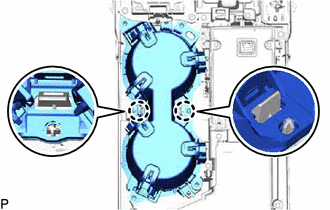

      GTY801086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CONSOLE BOX REGISTER ASSEMBLY
    1. Using a moulding remover, disengage the 4 claws, 4 clips and guide and remove the console box register assembly as shown in the illustration.

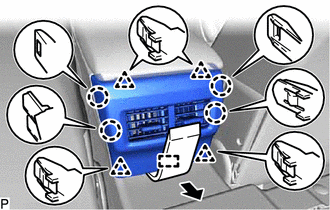

      GTY520302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CONSOLE BOX ASSEMBLY
    1. Remove the 6 bolts.

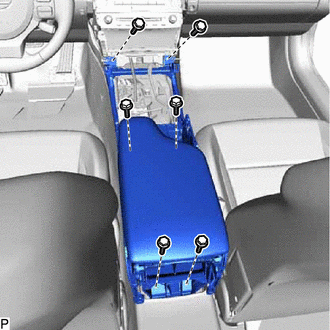

      GTY801084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the rear part of the console box assembly as shown in the illustration to disengage the 2 guides and remove the console box assembly.

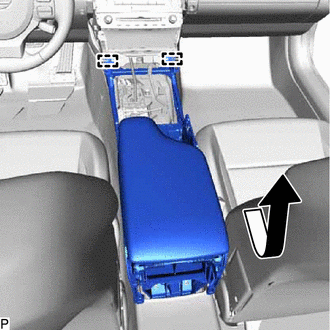

      GTY801085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector.
