Reassembly [10/2017 - 10/2020]: Procedure

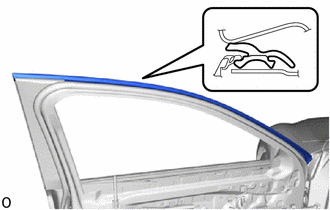

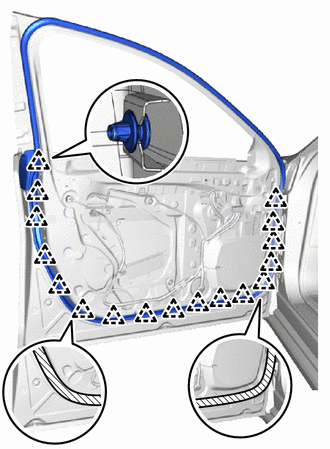

- INSTALL FRONT DOOR WEATHERSTRIP LH
- Degrease the front door weatherstrip LH installation surface using non-residue solvent.
- Remove the peeling paper of the double-sided tape trying not to touch the adhesional surface.
- Attach the clip and install the new front door weatherstrip LH.
Double-sided Tape NOTE:Press the double-sided tape on the front door weatherstrip LH firmly to apply it.
- INSTALL FRONT DOOR PANEL CUSHION
- INSTALL FRONT DOOR NO. 4 WEATHERSTRIP LH
- INSTALL FRONT DOOR CHECK ASSEMBLY LH
- Clean the threaded portion on the vehicle body with non-residue solvent.
- When reusing bolt:
- Clean the threaded portion on the bolt with non-residue solvent.
- Apply adhesive to the threads of the bolt.
Adhesive
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent.

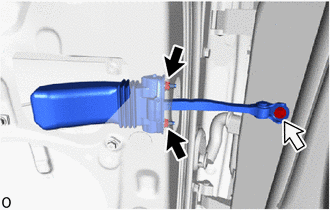

- Install the front door check assembly LH with the bolt and 2 nuts.
Bolt
Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)
Nut
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)
Nut Bolt
- INSTALL FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY LH
Refer to PROCEDURE - Step 1
- INSTALL FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH
Refer to PROCEDURE - Step 2
- INSTALL FRONT DOOR LOCK COVER SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 3
- INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
Refer to PROCEDURE - Step 4

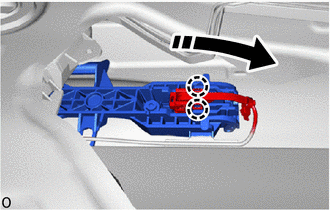

- INSTALL FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH
- Apply MP grease to the sliding parts of the front door outside handle frame sub-assembly LH.
- Attach the 2 wire harness clamps and guide.
- Attach the claw as shown in the illustration.

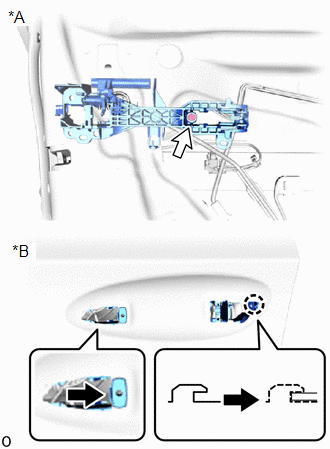

*A Outside *B Inside - Using a T30 "TORX" socket wrench, install the front door outside handle frame sub-assembly LH with the TORX screw.
Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

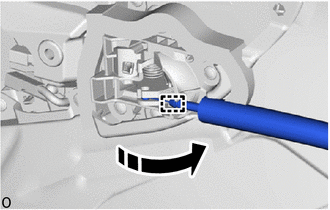

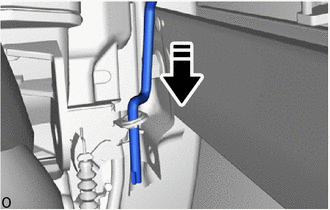

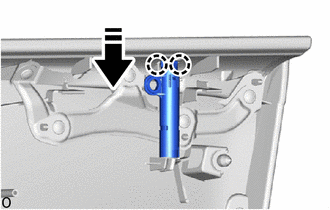

- INSTALL FRONT DOOR LOCK OPEN ROD LH
- Install the front door lock open rod LH on the front door lock with motor assembly LH as shown in the illustration.
Install in this Direction HINT:
Check that the front door lock open rod LH is securely attached to the front door lock with motor assembly LH.

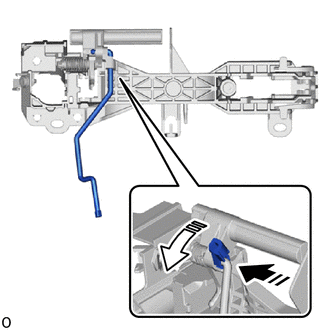

- Install the front door lock open rod LH to the front door outside handle frame sub-assembly LH and attach the snap of the front door outside handle as shown in the illustration.
Install in this Direction (1) Install in this Direction (2)
- Install the front door lock open rod LH on the front door lock with motor assembly LH as shown in the illustration.
- INSTALL FRONT DOOR FRONT OUTSIDE HANDLE PAD
- INSTALL FRONT DOOR REAR OUTSIDE HANDLE PAD

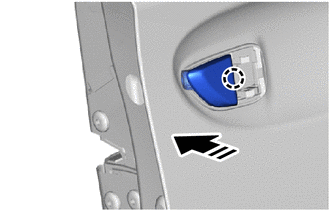

- INSTALL FRONT DOOR LOCK CYLINDER ASSEMBLY LH (for Driver Side)
- Apply MP grease to the sliding parts of the front door lock cylinder assembly LH.

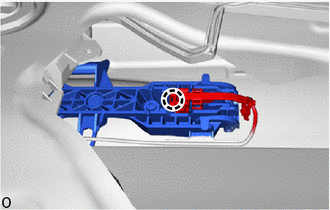

- Attach the guide for the front door lock cylinder assembly LH in the direction indicated by the arrow.

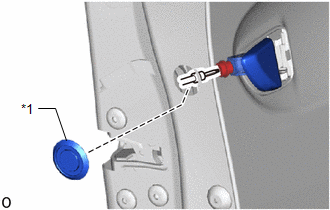

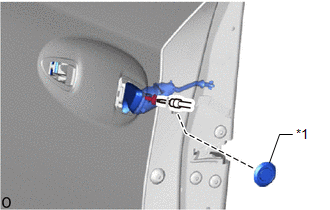

Install in this Direction - Using a T30 "TORX" socket wrench, install the front door lock cylinder assembly LH with the TORX screw.
*1 Plug Hole Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)
- Install the plug hole.

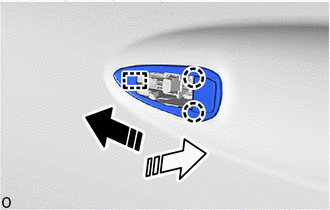

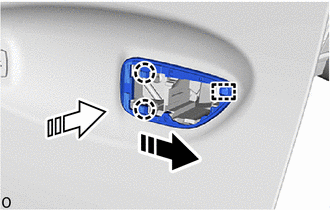

- INSTALL FRONT DOOR OUTSIDE HANDLE COVER RH (for Front Passenger Side)

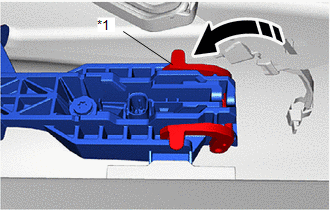

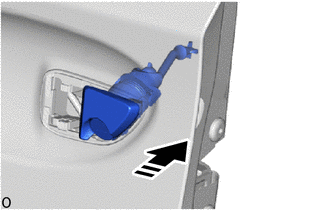

- Attach the claw of the front door outside handle cover RH in the direction indicated by the arrow.
Install in this Direction - Using a T30 "TORX" socket wrench, install the front door outside handle cover RH with the TORX screw.
*1 Plug Hole Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)
- Install the plug hole.
- Attach the claw of the front door outside handle cover RH in the direction indicated by the arrow.
- INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH

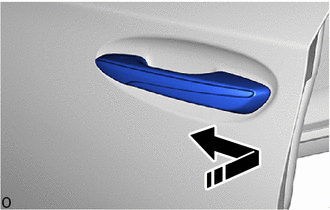

- Install the front door outside handle assembly LH in the direction of the arrow shown in the illustration.
Install in this Direction - Attach the holder as shown in the illustration.
*1 Holder Install in this Direction - Connect the connector.
- Attach the claw and close the connector cover as shown in the illustration.
Install in this Direction
- Install the front door outside handle assembly LH in the direction of the arrow shown in the illustration.

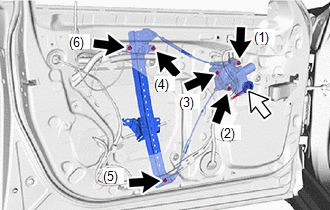

- INSTALL FRONT DOOR WINDOW REGULATOR ASSEMBLY LH
- Apply MP grease to the sliding parts of the front door window regulator assembly LH.

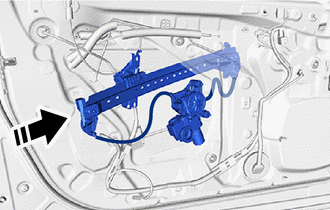

- Pull out the front door window regulator assembly LH from the service hole as shown in the illustration.
Install in this Direction - Install the front door window regulator assembly LH with the 6 nuts in the order shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Nut Connector Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)
NOTE:Do not damage the front door panel assembly with the front door window regulator assembly LH.
- Connect the connector.

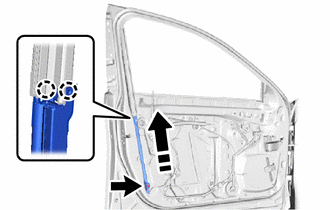

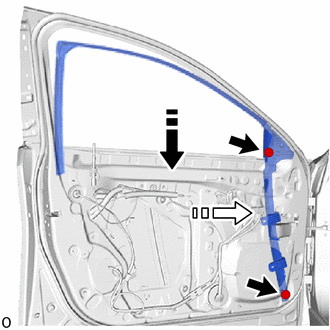

- INSTALL FRONT DOOR REAR WINDOW FRAME LH

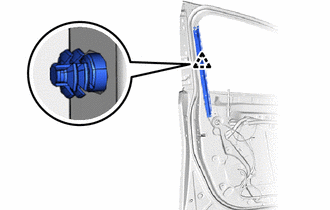

- Attach the clip and install the front door rear window frame LH.

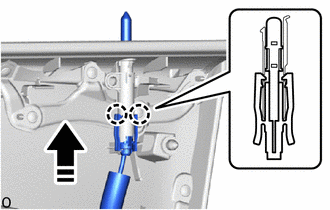

- Install the nose piece to an air riveter and insert the mandrel section of a new 4 mm rivet into the nose piece.
- Press the rivets perpendicularly to the installation holes. Using the air riveter, install the front door rear window frame LH with the 4 rivets.
*1 Nose piece NOTE:Press the air riveter perpendicularly to the installation holes.
HINT:
Pull the trigger again to cut off the rivet if the rivet does not cut off.
- Attach the clip and install the front door rear window frame LH.

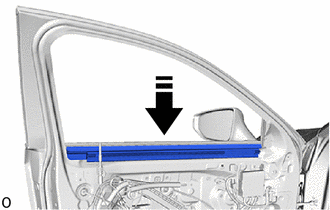

- INSTALL FRONT DOOR NO. 2 GLASS RUN LH
- INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH

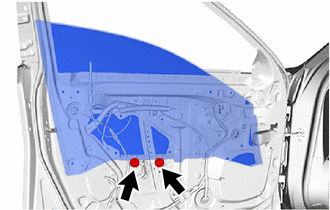

- INSTALL FRONT DOOR GLASS SUB-ASSEMBLY LH
- Connect the 3 front multiplex network door ECU LH connectors.
- Connect the connector and temporarily install the front door trim board sub-assembly LH.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the power switch on (IG).
- Move the front door glass sub-assembly LH until the installation bolts can be seen.
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the connector and remove the front door trim board sub-assembly LH.
- Disconnect the 3 front multiplex network door ECU LH connectors.

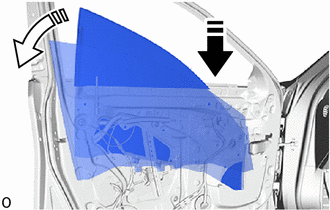

- Temporarily install the front door glass sub-assembly LH to the front door window regulator assembly LH in the order shown in the illustration.NOTE:
Be careful not to damage the front door glass sub-assembly LH.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install in this Direction (1) Install in this Direction (2) - Install the front door glass sub-assembly LH with the 2 bolts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)
- Connect the 3 front multiplex network door ECU LH connectors.
- INSTALL FRONT DOOR FRONT WINDOW FRAME MOULDING LH
Refer to PROCEDURE - Step 4
- INSTALL FRONT DOOR UPPER WINDOW FRAME MOULDING LH
Refer to PROCEDURE - Step 6

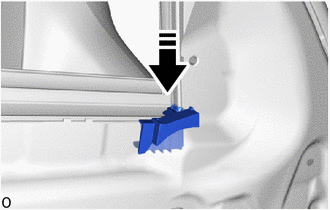

- INSTALL DOOR GUIDE PROTECTOR

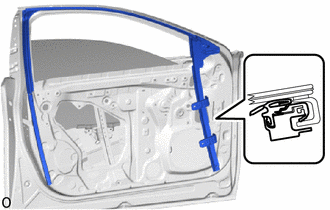

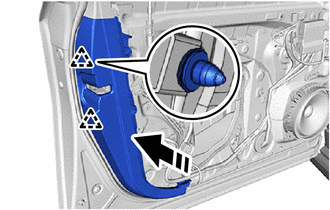

- INSTALL FRONT DOOR FRONT GLASS RUN LH

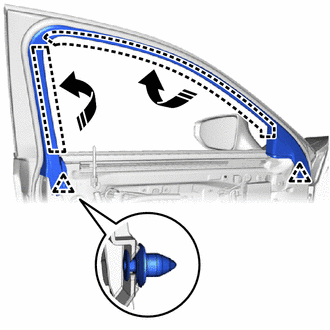

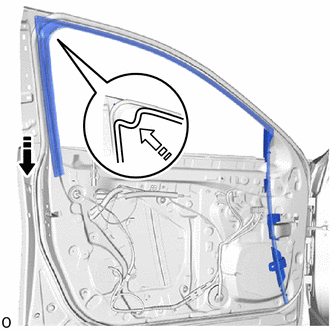

- INSTALL FRONT DOOR GLASS RUN LH

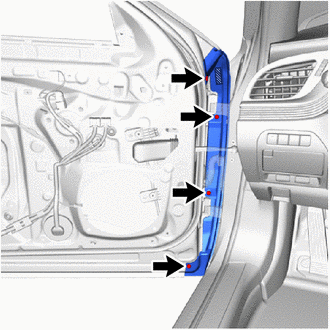

- INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY LH

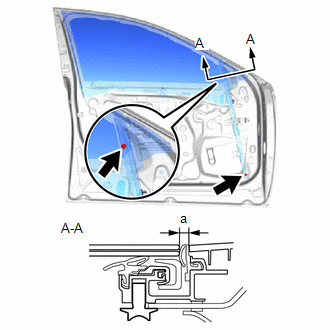

- Slide the front door glass run LH in the direction indicated by the arrow shown in the illustration and temporarily install it together with the front pillar upper cover sub-assembly LH with the 2 bolts.
Install in this Direction (1) Install in this Direction (2) - Install the front door glass run LH as shown in the illustration.
Install in this Direction (1) Install in this Direction (2)
- Slide the front door glass run LH in the direction indicated by the arrow shown in the illustration and temporarily install it together with the front pillar upper cover sub-assembly LH with the 2 bolts.
- ADJUST FRONT DOOR GLASS SUB-ASSEMBLY LH

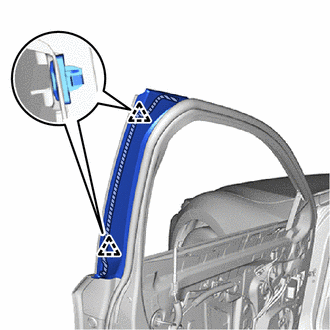

- INSTALL FRONT DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)
Refer to PROCEDURE - Step 10
- INSTALL FRONT DOOR REAR BELT MOULDING END COVER LH
HINT:
When installing the front door rear belt moulding end cover LH, heat the front door panel and front door rear belt moulding end cover LH using a heat light.
Item Temperature Front Door Panel 40 to 60°C (104 to 140°F) Front Door Rear Belt Moulding End Cover LH 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light - Install a new front door rear belt moulding end cover LH.
- Using a heat light, heat a new front door rear belt moulding end cover LH and the front door panel surface.
- Remove the peeling paper from the face of the front door rear belt moulding end cover LH.
HINT:
After removing the peeling paper, keep the exposed adhesive free from foreign matter.
- Attach the clip and install the front door rear belt moulding end cover LH as shown in the illustration.
Double-sided Tape NOTE:Press the double-sided tape on the front door rear belt moulding end cover LH firmly to apply it.
- INSTALL FRONT DOOR BELT MOULDING LH
Refer to PROCEDURE - Step 1
- INSTALL FRONT DOOR NO. 2 WEATHERSTRIP LH
- INSTALL FRONT DOOR NO. 3 WEATHERSTRIP LH
HINT:
When installing the front door No. 3 weatherstrip LH, heat the front door panel and front door No. 3 weatherstrip LH using a heat light.
Item Temperature Front Door Panel 40 to 60°C (104 to 140°F) Front Door No. 3 Weatherstrip LH 20 to 30°C (68 to 86°F) WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light - Install a new front door No. 3 weatherstrip LH.
- Using a heat light, heat a new front door No. 3 weatherstrip LH and the front door panel surface.
- Remove the peeling paper from the face of the front door No. 3 weatherstrip LH.
HINT:
After removing the peeling paper, keep the exposed adhesive free from foreign matter.
- Attach the 4 clips and install the front door No. 3 weatherstrip LH.
Double-sided Tape NOTE:Press the double-sided tape on the front door No. 3 weatherstrip LH firmly to apply it.
- INSTALL FRONT DOOR ARMREST SET BRACKET LH
- INSTALL DOOR SIDE AIR BAG SENSOR LH
Refer to PROCEDURE - Step 1
- INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
Refer to PROCEDURE - Step 1

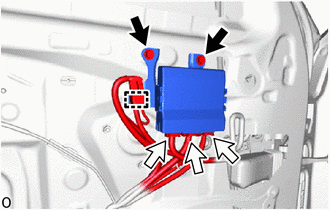

- INSTALL FRONT MULTIPLEX NETWORK DOOR ECU LH
- INSTALL OUTER MIRROR INSTALL HOLE COVER LH
Refer to PROCEDURE - Step 3

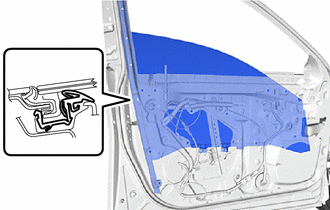

- INSTALL FRONT DOOR SERVICE HOLE COVER LH

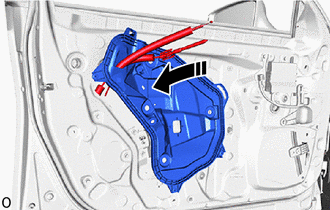

- Pass the front door lock remote control cable assembly LH and front door inside locking cable assembly LH through the front door service hole cover LH.
Install in this Direction - Attach the clip and install the front door service hole cover LH.

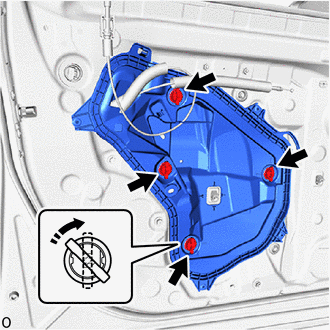

- Turn the clips 45° in the direction indicated by the arrow shown in the illustration and install the 4 front door weatherstrip clips.
Turn Service Hole Cover Clip - Connect the connector.
- Connect the wire harness clamps.
- Pass the front door lock remote control cable assembly LH and front door inside locking cable assembly LH through the front door service hole cover LH.
- INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL FRONT DOOR PANEL PROTECTOR LH
- INSTALL FRONT DOOR VENT SEAL LH
- INSTALL FRONT DOOR GLASS INNER WEATHERSTRIP LH
- INSTALL UPPER DOOR FRAME GARNISH LH
- INSTALL FRONT DOOR TRIM COVER LH
- INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH
- INSTALL SEAT MEMORY SWITCH LH
Refer to PROCEDURE - Step 1
- INSTALL NO. 2 SWITCH BEZEL
Refer to PROCEDURE - Step 7
- INSTALL FRONT DOOR INNER TRIM COVER LH
- INSTALL FRONT DOOR LOCK CONTROL KNOB HOLDER LH
- INSTALL DOOR LOCK CONTROL KNOB BEZEL LH
- INSTALL COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY (for Driver Side)
Refer to PROCEDURE - Step 1
- INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side)
Refer to PROCEDURE - Step 1

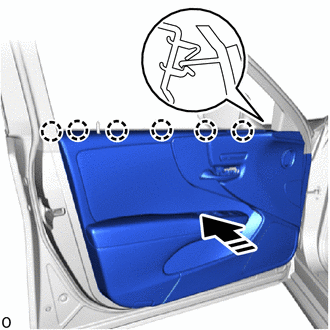

- INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
- Connect each connector.
- Attach the claw and connect the front door inside locking cable assembly LH.
Install in this Direction - Connect the front door lock remote control cable assembly LH to the front door inside handle sub-assembly LH.
Install in this Direction - Attach the claw in the direction indicated by the arrow shown in the illustration to install the front door trim board sub-assembly LH.

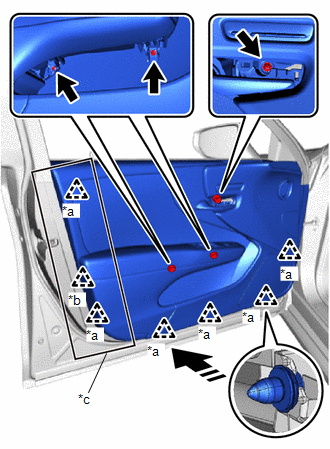

Install in this Direction - Attach the clip A and clip B to install the front door trim board sub-assembly LH.
*a Clip A *b Clip B *c Non-reusable part Install in this Direction HINT:
The clip (*c in illustration) is a non-reusable part. Make sure to replace it with a new one.
- Install the 3 screws.
- INSTALL FRONT DOOR NO. 2 ARMREST COVER LH
- INSTALL FRONT DOOR ARMREST COVER LH
- INSTALL FRONT DOOR TRIM UPPER COVER LH
- INSPECT FITTING OF FRONT DOOR
Refer to ADJUSTMENT [10/2017 - ]
- INSPECT FITTING OF FRONT DOOR TRIM BOARD SUB-ASSEMBLY
- Remove the front door inner trim cover LH.

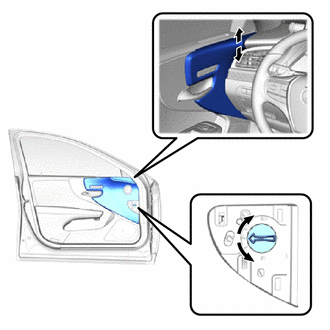

- Rotate the dial to align the instrument panel safety pad sub-assembly stitching with the stitch line on the front door trim board sub-assembly LH as shown in the illustration.
HINT:
Adjust the front door trim board sub-assembly LH so that it is within the range of -2.0 to 2.0 mm (-0.079 to 0.079 in.).
- Install the front door inner trim cover LH.
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]
- INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
- INSPECT SRS WARNING LIGHT
Refer to OPERATION CHECK [10/2017 - 10/2020]
- PERFORM DIAGNOSTIC SYSTEM CHECK
- INITIALIZE POWER WINDOW CONTROL SYSTEM
Refer to INITIALIZATION [10/2017 - 10/2023]
- CHECK POWER WINDOW CONTROL SYSTEM
Refer to OPERATION CHECK [10/2017 - 10/2023]
- CHECK POWER DOOR LOCK CONTROL SYSTEM
Refer to OPERATION CHECK [10/2017 - 10/2023]
- INSPECT OUTER REAR VIEW MIRROR OPERATION
Refer to OPERATION CHECK [10/2017 - ]
- CHECK FRONT POWER SEAT CONTROL SYSTEM
Refer to OPERATION CHECK [10/2017 - 09/2019] , or refer to OPERATION CHECK [09/2019 - 10/2020]
