Installation [10/2017 - 10/2023]: Procedure

  1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

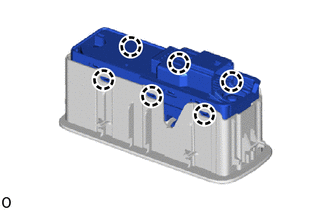

    1. Attach the claw and install the power window regulator switch assembly to the front door armrest upper base panel.
      GTY782589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.

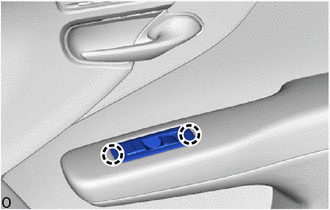

    3. Attach the claw and install the power window regulator switch assembly to the front door trim board sub-assembly RH.
      GTY817183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT POWER WINDOW OPERATION

    Refer to OPERATION CHECK [10/2017 - 10/2023]

  3. INSPECT DOOR LOCK OPERATION

    Refer to OPERATION CHECK [10/2017 - 10/2023]
