Installation [10/2017 - ]: Procedure

  1. INSTALL SEAT MEMORY SWITCH LH
    1. Install the seat memory switch LH with the 2 screws.
      GTY787289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 SWITCH BEZEL

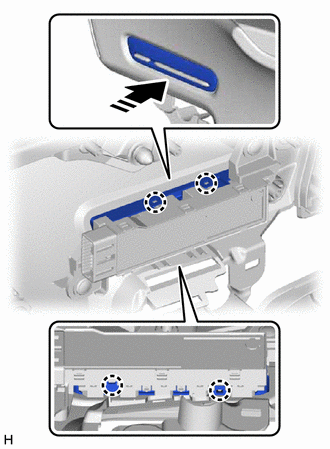

    1. Attach the claw and install the No. 2 switch bezel.
      GTY821893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      install in this Direction
    2. Attach the claw and install the inner handle illumination.
      GTY783588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector clamp.

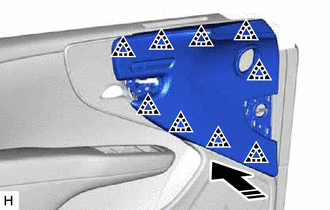

    4. Attach the clip and install the middle board sub-assembly.
      GTY775381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      install in this Direction
    5. Remove the 3 screws.
      GTY829943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 45 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 45 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 45 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 45 [10/2023 - ]

  4. INSTALL FRONT DOOR INNER TRIM COVER LH

    Refer to PROCEDURE - Step 48 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 48 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 48 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 48 [10/2023 - ]

  5. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 54 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 54 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 54 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 54 [10/2023 - ]

  6. INSTALL FRONT DOOR NO. 2 ARMREST COVER LH

    Refer to PROCEDURE - Step 55 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 55 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 55 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 55 [10/2023 - ]

  7. INSTALL FRONT DOOR ARMREST COVER LH

    Refer to PROCEDURE - Step 56 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 56 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 56 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 56 [10/2023 - ]

  8. INSTALL FRONT DOOR TRIM UPPER COVER LH

    Refer to PROCEDURE - Step 57 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 57 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 57 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 57 [10/2023 - ]

  9. INSPECT FITTING OF FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 59 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 59 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 59 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 59 [10/2023 - ]
