Installation [10/2017 - 10/2023]: Procedure
- INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

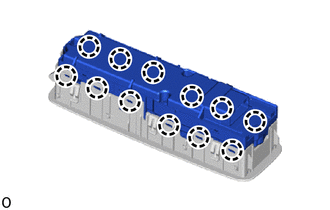

- Attach the claw and install the multiplex network master switch assembly to the front door armrest upper base panel.
- Connect the connector.

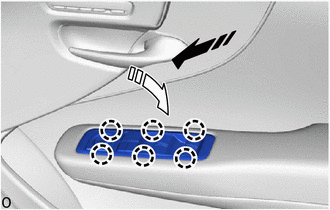

- Insert the multiplex network master switch assembly with front door armrest upper panel into the front door trim board sub-assembly LH in the direction of the arrow (1) shown in the illustration.
Install in this Direction (1) Install in this Direction (2) - Attach the claw in the direction of the arrow (2) shown in the illustration and install the multiplex network master switch assembly with front door armrest upper panel to the front door trim board sub-assembly LH.
- Attach the claw and install the multiplex network master switch assembly to the front door armrest upper base panel.
- INSPECT POWER WINDOW OPERATION
Refer to OPERATION CHECK [10/2017 - 10/2023]
- INSPECT DOOR LOCK OPERATION
Refer to OPERATION CHECK [10/2017 - 10/2023]
- INSPECT POWER MIRROR CONTROL SYSTEM
Refer to OPERATION CHECK [10/2017 - ]
