Disassembly [12/2017 - 10/2020]: Procedure

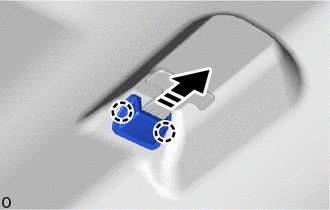

  1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE
    GTY782611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Remove in this Direction
    1. Detach the claw and remove the luggage lock control cable plate as shown in the illustration.
  2. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
    GTY832202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the luggage compartment door inside handle from the luggage door lock control cable sub-assembly.
  3. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
    1. Using a screwdriver with its tip wrapped with protective tape, detach the claw and open the cover.
      GTY782657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and luggage compartment assist grip.
      GTY782658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SWITCH BEZEL
    1. Detach the claw and remove the switch bezel.
      GTY782664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE LUGGAGE COMPARTMENT DOOR COVER
    1. Using a clip remover, remove the clip.
      GTY782665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and remove the luggage compartment door cover.
      GTY782666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE DOOR CONTROL SWITCH

    Refer to PROCEDURE - Step 7

  8. REMOVE LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Detach the clamp and remove the luggage door lock control cable sub-assembly.
      GTY797680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE LUGGAGE DOOR CLOSER ASSEMBLY

    Refer to PROCEDURE - Step 7

  10. REMOVE LUGGAGE LOCK CONTROL CABLE CLAMP
    1. Detach the claw and guide and remove the luggage lock control cable clamp.
      GTY797683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
    1. Remove the 2 nuts and disconnect the luggage compartment door lock cylinder assembly.
      GTY782667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

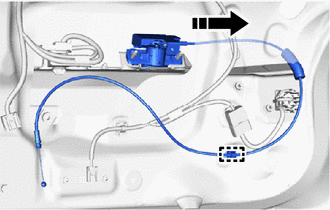

    2. Detach the clamp of the luggage door lock control cable sub-assembly.
      GTY779974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull Out
    3. Pull out the luggage door lock control cable sub-assembly together with the luggage compartment door lock cylinder assembly in the direction indicated by the arrow shown in the illustration.
  12. REMOVE LUGGAGE COMPARTMENT KEY CYLINDER PROTECTOR
    1. Remove the nut and luggage compartment key cylinder protector.
      GTY782676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Remove the luggage door lock control cable sub-assembly from the luggage compartment door lock cylinder assembly.
      GTY782677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  15. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH and LH sides.

  16. REMOVE UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH LH

    Refer to PROCEDURE - Step 9

  17. REMOVE UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH RH

    Refer to PROCEDURE - Step 10

  18. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  19. REMOVE REAR LUGGAGE TRIM CLIP
    1. Detach the claw and remove the rear luggage trim clip.
      GTY828926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH and LH sides.

  20. REMOVE TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 12

  21. REMOVE LUGGAGE ELECTRICAL KEY SWITCH

    Refer to PROCEDURE - Step 2

  22. REMOVE LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

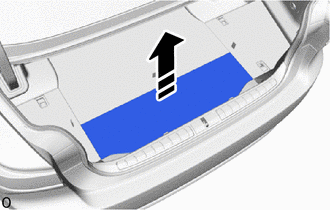

  23. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
    1. Holding the strap, lift the luggage compartment floor mat in the direction indicated by the arrow shown in the illustration and remove it.
      GTY814508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

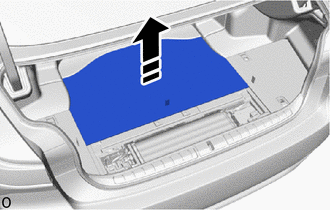

  24. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
    1. Holding the strap, lift the luggage compartment mat sub-assembly in the direction indicated by the arrow shown in the illustration and remove it.
      GTY781786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

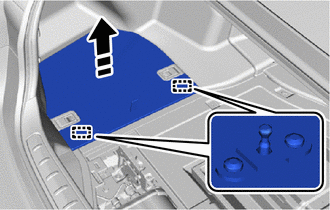

  25. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
    1. Holding the strap, lift the luggage compartment trim cover LH in the direction indicated by the arrow shown in the illustration, detach the pin and remove it.
      GTY776831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

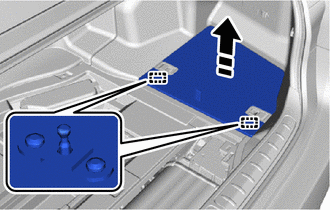

  26. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
    1. Holding the strap, lift the luggage compartment trim cover RH in the direction indicated by the arrow shown in the illustration, detach the pin and remove it.
      GTY795788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

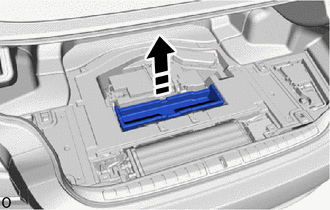

  27. REMOVE TOOL BOX
    1. Remove the tool box.
      GTY789991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  28. REMOVE INNER LOWER LUGGAGE COMPARTMENT TRIM COVER
    1. Using a clip remover, detach the 8 clips and remove the inner lower luggage compartment trim cover.
      GTY828928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

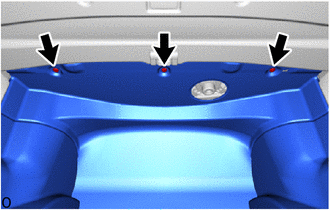

  29. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
    1. Using a clip remover, remove the 3 clips.
      GTY966711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

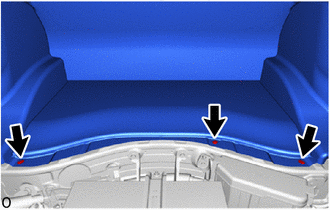

    2. Using a clip remover, remove the 3 clips.
      GTY966721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

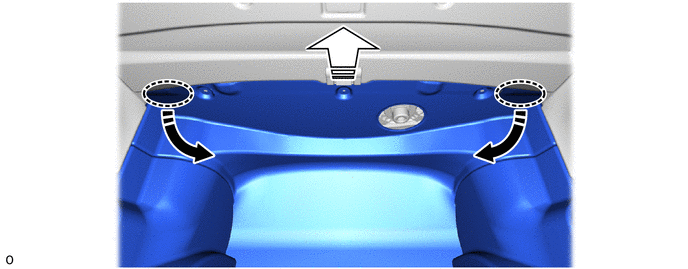

    3. Place your hands at the positions shown in the illustration and bend the front luggage compartment trim cover down.
      GTY967191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
    4. While bending the front luggage compartment trim cover toward the inside, pull it out in the direction indicated by the arrow shown in the illustration to remove it.

      HINT:

      Do not bend the front luggage compartment trim cover so far that it breaks.

  30. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  31. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER
    1. Using a clip remover, remove the 6 clips.
      GTY782635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

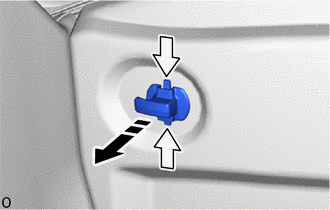

    2. Push the lever in the direction of the arrow shown in the illustration and remove the rope hook.
      GTY812613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Push

      HINT:

      Use the same procedure for the opposite side.

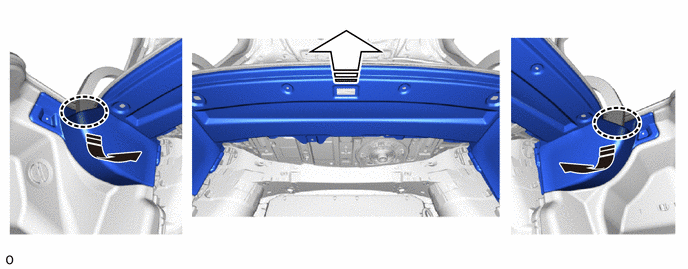

    3. Place your hands at the positions shown in the illustration, and while bending the rear luggage compartment trim cover toward the inside of the vehicle, pull it out to remove it.
      GTY805936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -

      HINT:

      Do not bend the rear luggage compartment trim cover so far that it breaks.

  32. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH
    1. Remove the 4 clips and luggage compartment door hinge cover LH.
      GTY782632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH

    HINT:

    Use the same procedure for the RH and LH sides.

  34. REMOVE LUGGAGE COMPARTMENT DOOR CUSHION
    1. Detach the claw and remove the luggage compartment door cushion.
      GTY782633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH and LH sides.
