Removal [12/2017 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [12/2017 - ]

  2. REMOVE LUGGAGE ELECTRICAL KEY SWITCH

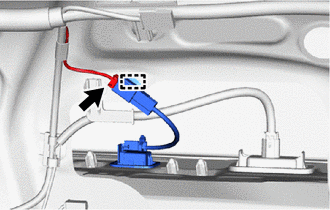

    1. Disconnect the connector and detach the clamp.
      GTY782414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

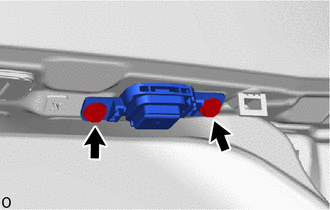

    2. Remove the 2 screws and luggage electrical key switch.
      GTY782415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screw grommets.
